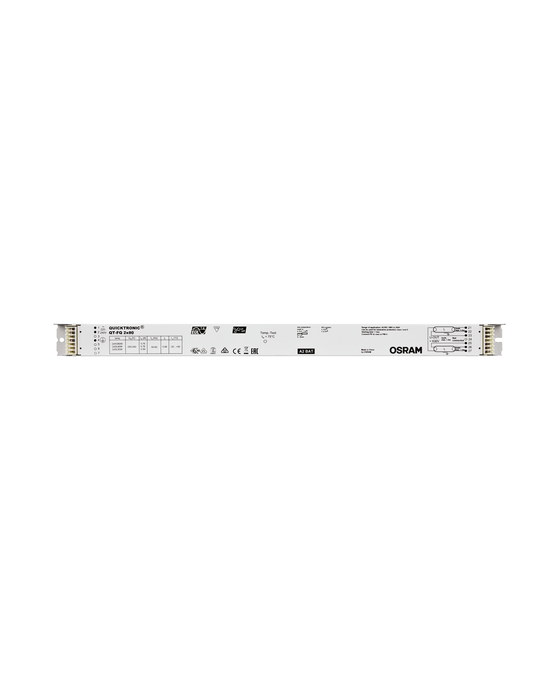

QT-FQ 2X80
Product benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Modernization of existing systems
Product features
- Supply voltage: 220 240 V
- Line voltage: 198 264 V
- Line frequency: 50 Hz | 60 Hz
- Lamp start with optimum filament preheating
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- Energy Efficiency Index EEI: A2
- Safety: to EN 61347-2-3
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
Product identifiers
SKU: 4050300825564
EAN: 4050300825564
GTIN: 4050300825564
MPN: 4050300825564
Price: £ 0.00 Excl. VAT
Specifications
Lifespan
| ECG lifetime | 50000 h 1) |
Capabilities
| Dimmable | No |
| Max. cable length to lamp/LED module | 1.5 m |
| Suitable for fixtures with prot. class | I; II |
| End of lamp life safety shutdown | EOL T.2 |
Electrical data
| Nominal wattage | 175.00 W |
| Nominal voltage | 220…240 V |
| Input voltage AC | 198…264 V |
