Schneider Electric

Pilot light head ø22 with 5-colour grooved lenses for integral led

Pilot light head ø22 with 5-colour grooved lenses for integral led by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £11.15 to £11.60 excl. VAT. Voltimum+ members earn 2 points per unit.

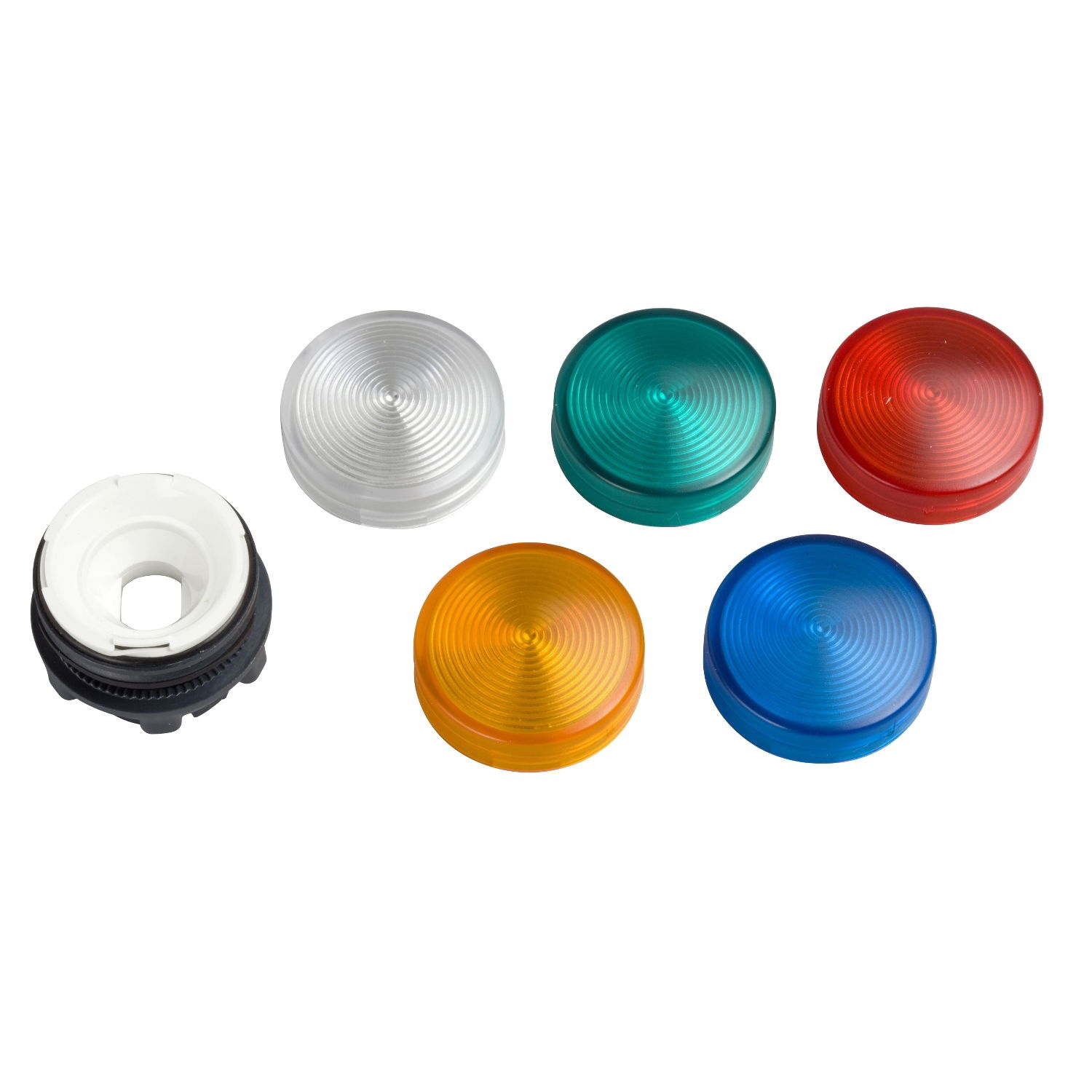

This Harmony XB5 grooved lens head for pilot light with integral LED provides 5 colors of len: white, green, red, orange, blue. It offers a bright indicator of process and machine operations. It is distinguishable visually at a distance thanks to clear colors of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Product identifiers

SKU: ZB5AV003S
EAN: 3389110137040
GTIN: 3389110137040
MPN: ZB5AV003S

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 11.15 - £ 11.60 Excl. VAT

Categories

Industrial Switchgear Switchgear & Circuit Protection Switchgear

ETIM group

Low-voltage industrial components

Specifications

Colour lens Set with several colours
Type of lens High

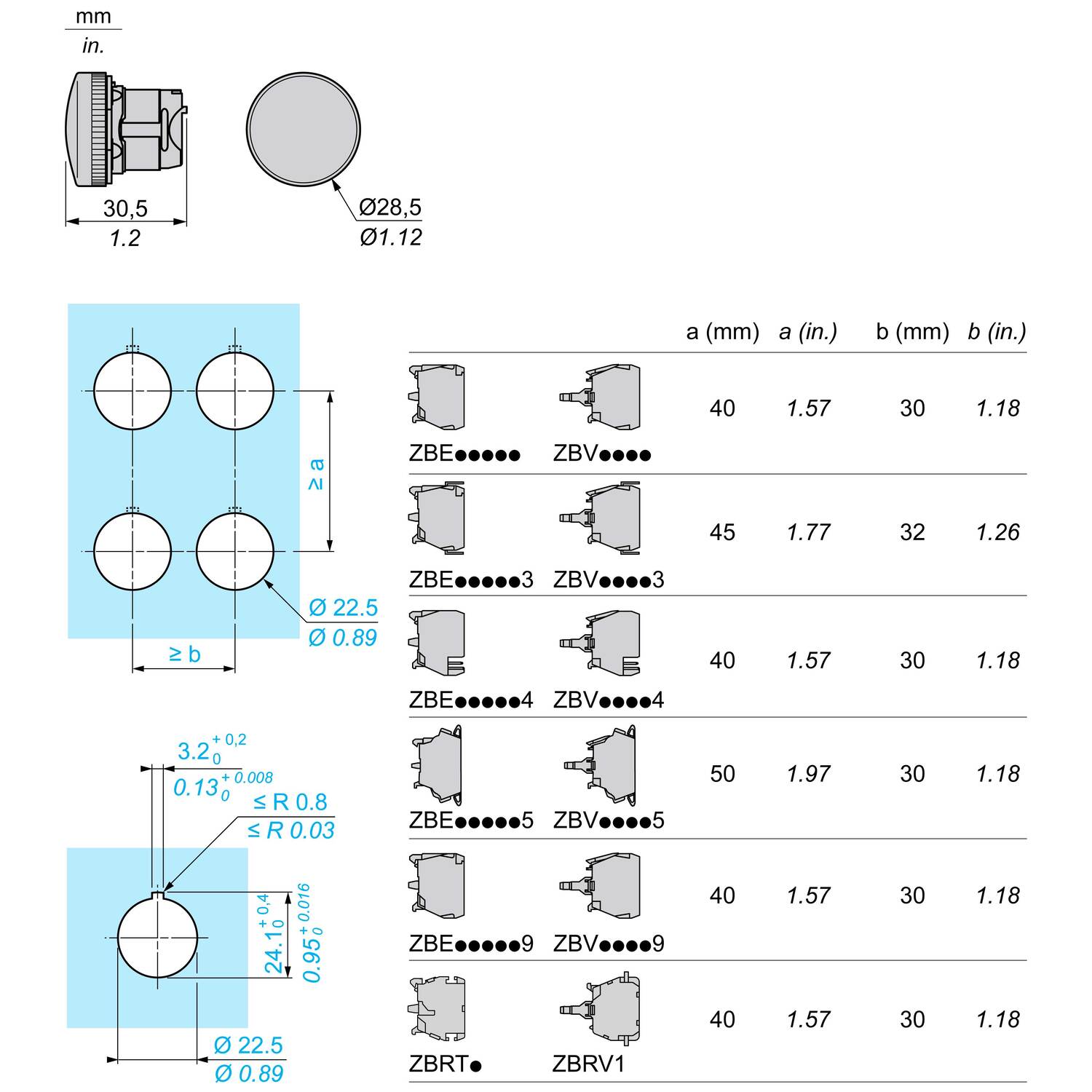

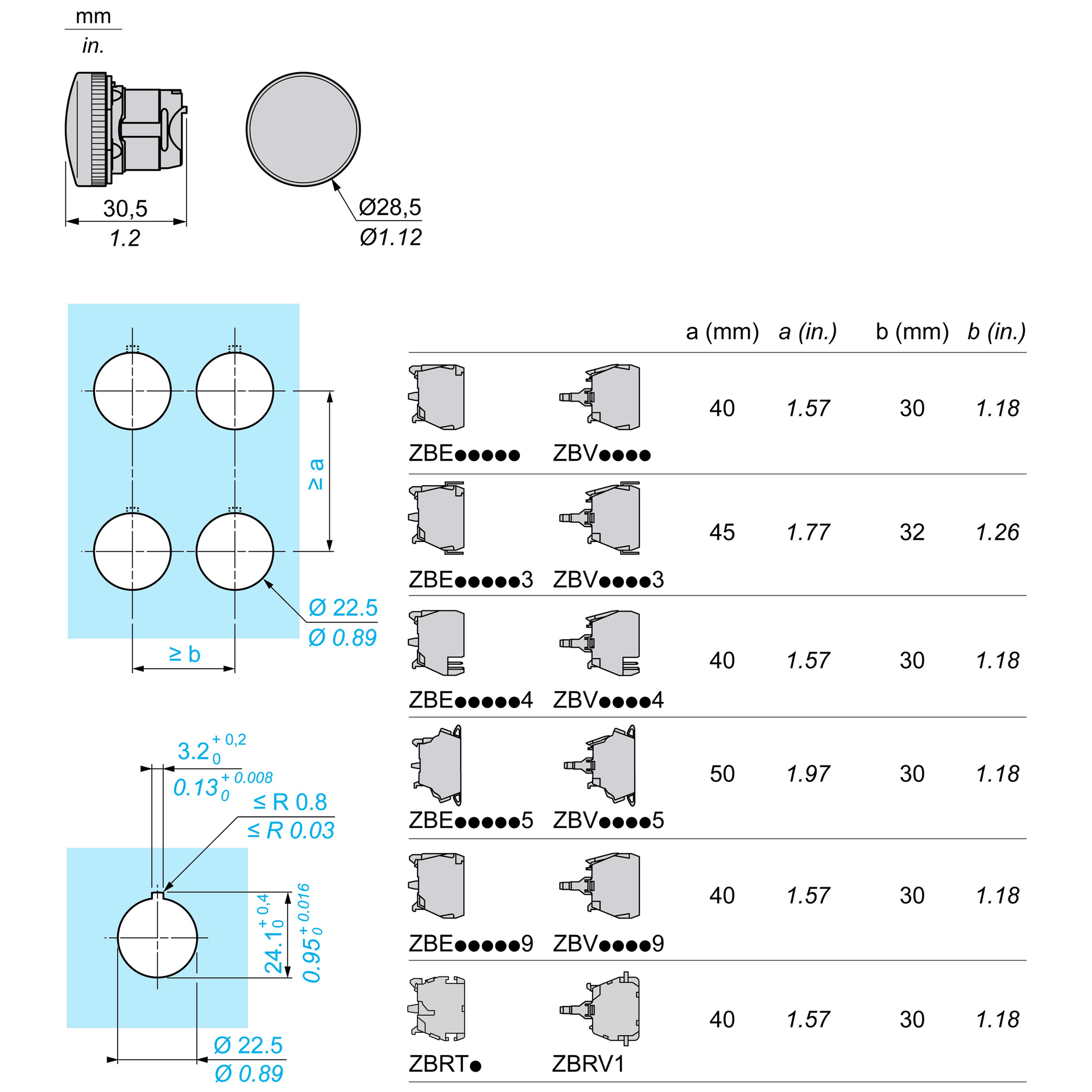

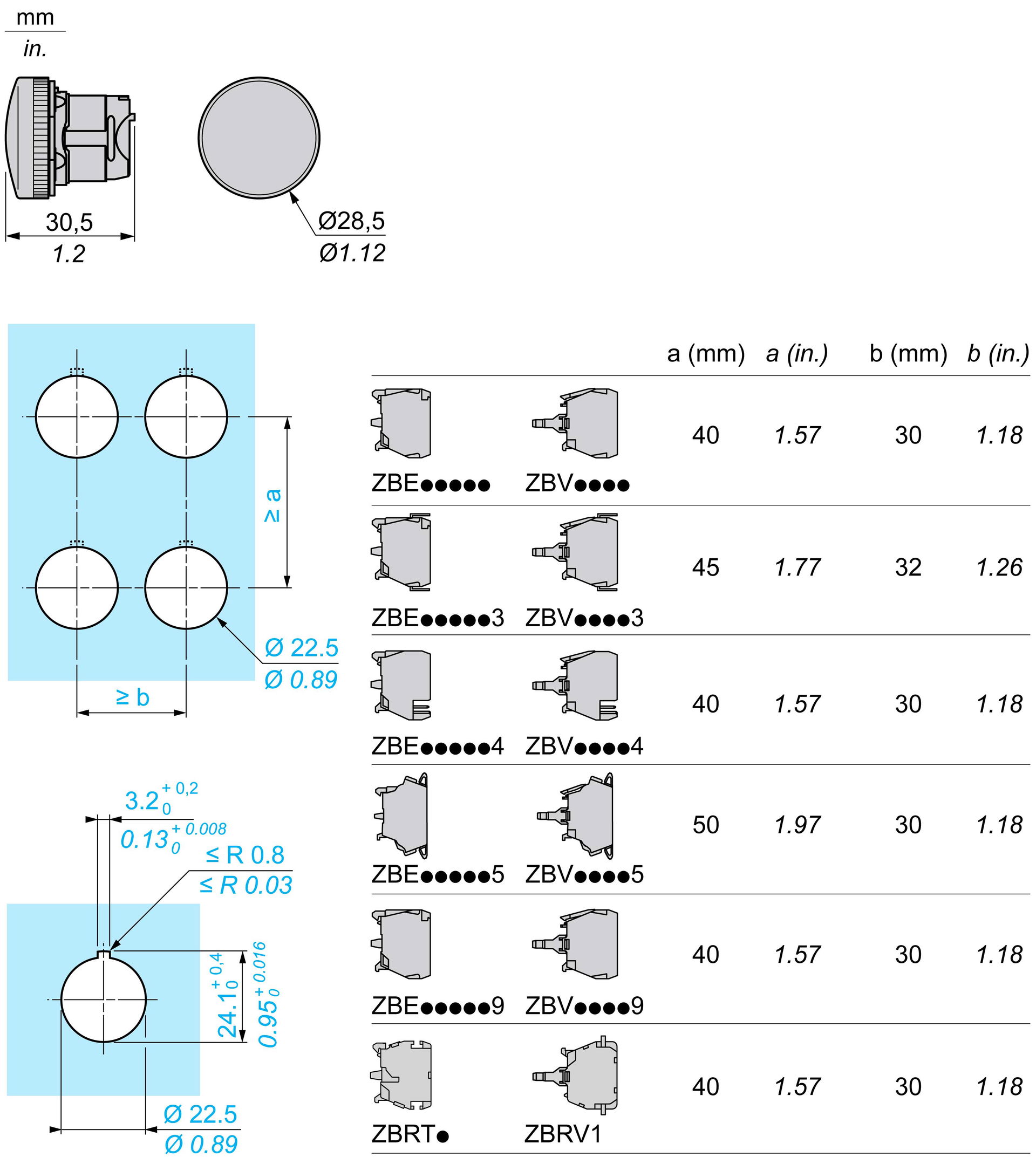

Hole diameter 22.5 mm
Width opening -
Height opening -
With front ring yes
Colour front ring Black
Material front ring Plastic
Degree of protection (NEMA) 4X, 13
Suitable for number of built-in signal lights 1

Documents

Declaration of Conformity (Sustainability)

ZB5AV003S REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

DIA5ED2121213ENUK

Open

Declaration of Conformity (Sustainability)

ZB5AV003S EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Harmony XB5 Pilot Light

Open

Circularity Profile

Harmony XB5 Pilot Light

Open
