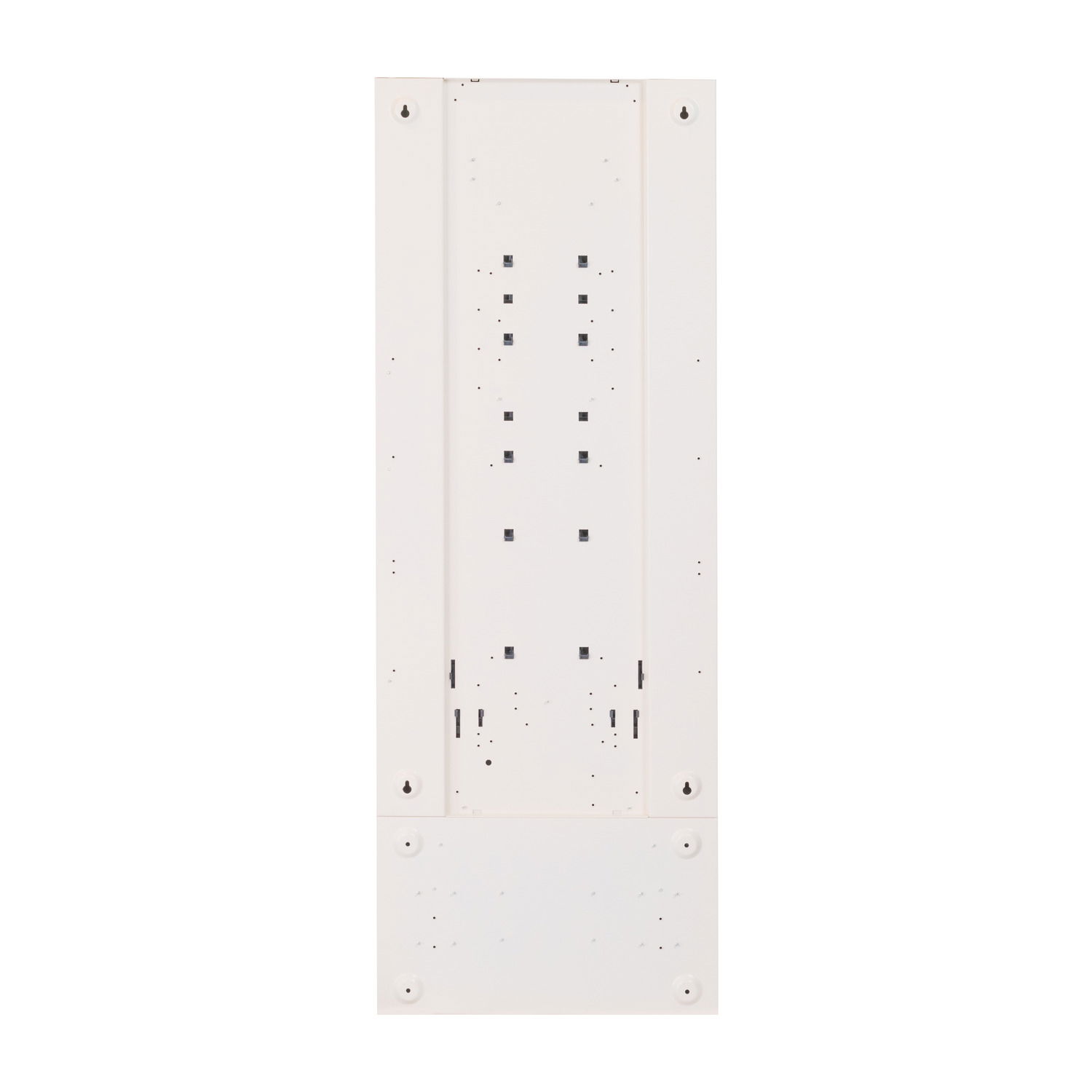

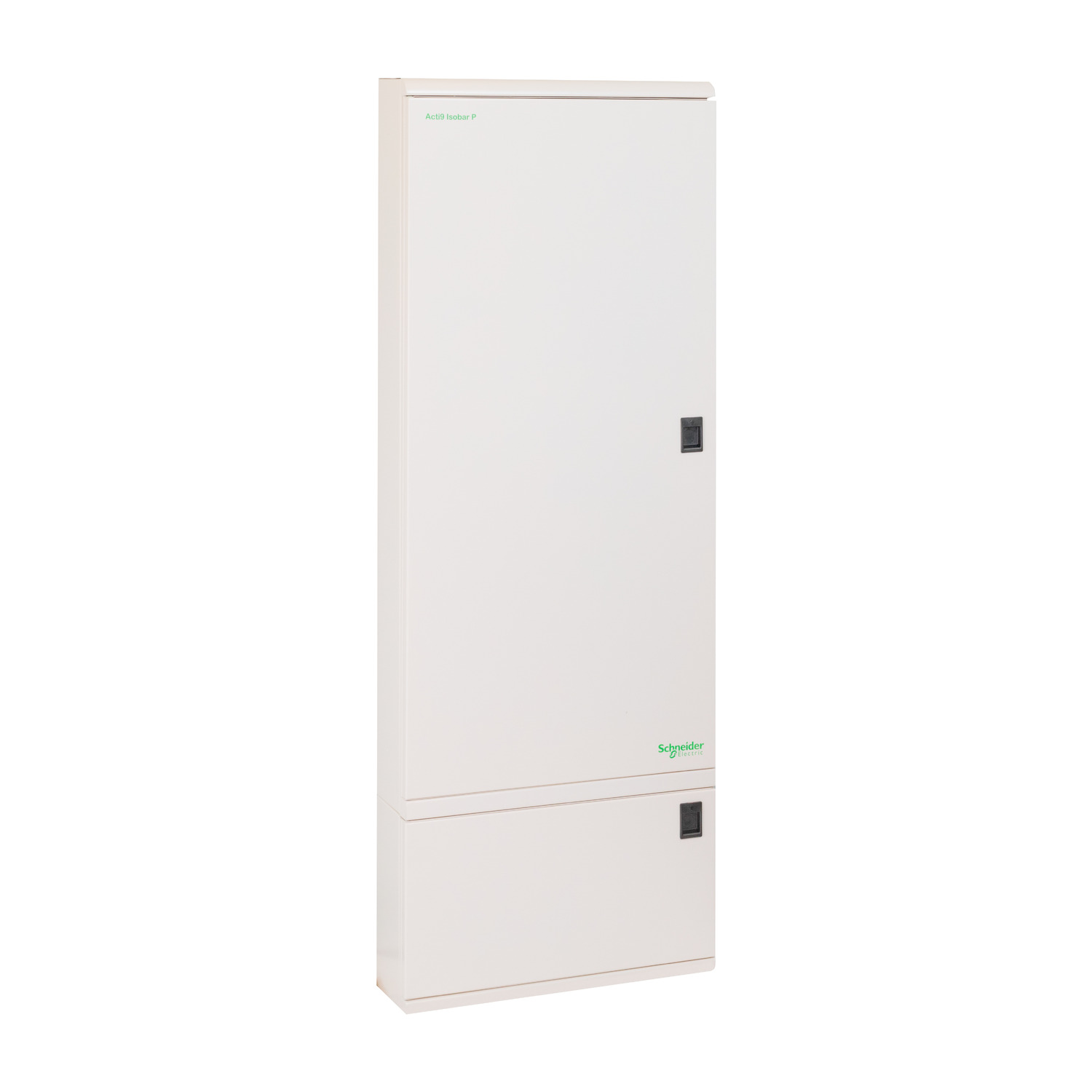

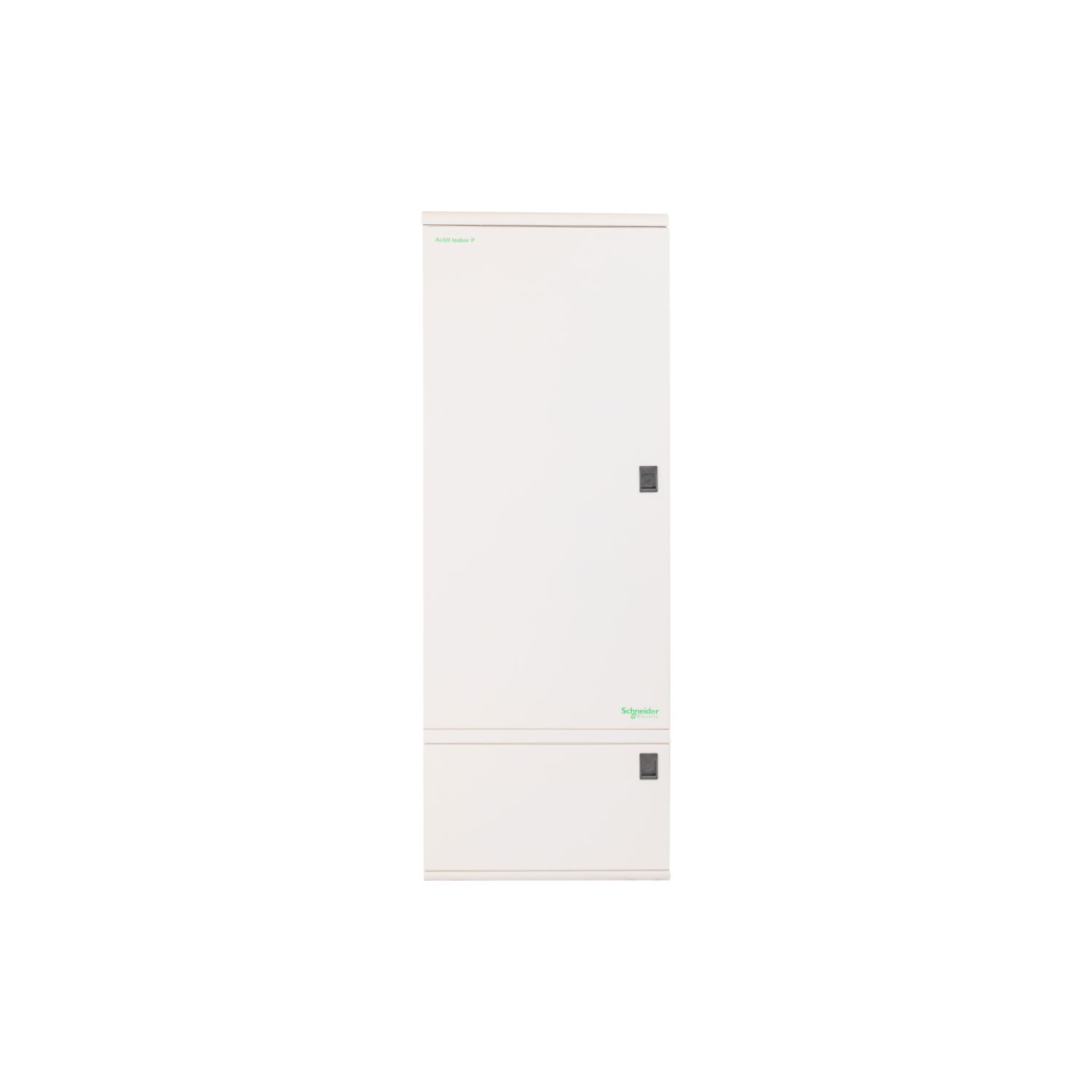

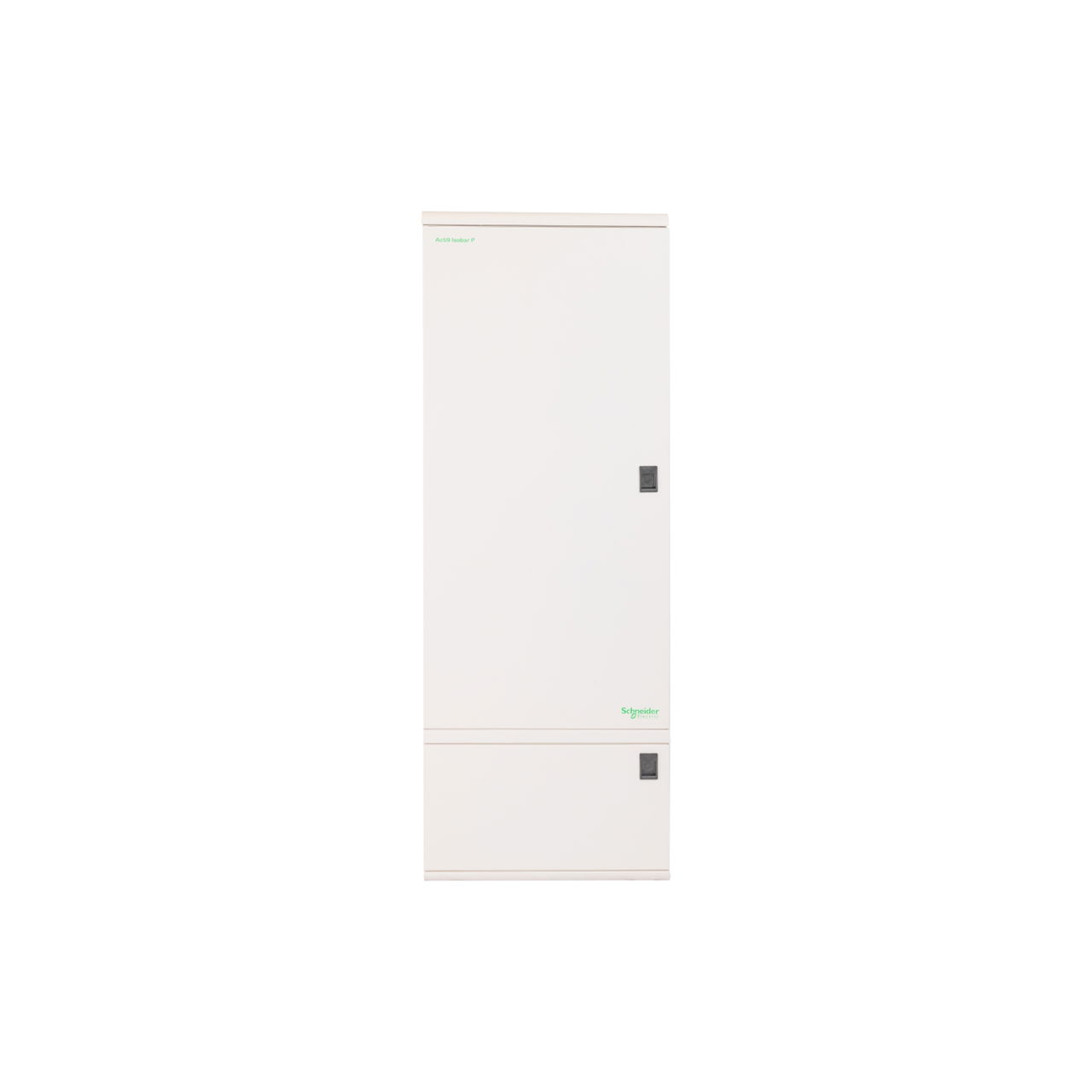

Acti9 Isobar B P - split metered distribution board - 125A - 14 + 8 ways TP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar B P - split metered distribution board - 125A - 14 + 8 ways TP+N by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £3,486.38 excl. VAT. Voltimum+ members earn 567 points per unit.

This Acti9 Isobar B P product is a split metered distribution board, up to 125A. It is a 14 ways of 3 poles outgoer for lower pan assembly and 8 ways of 3 poles outgoer for upper pan assembly. This distribution board include a 125 A swtich disconector incomer and MID meters with communications (Meters included are 2 x A9MEM3255). It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 1290mm x (D) 139mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL9001). This distribution board is compliant with BS/EN 61439-3.

Voltimum+ Loyalty Programme Loyalty points: 567

Price: £ 3,486.38 Excl. VAT

Specifications

Depth 139 mm
Width 470 mm
Colour Other
Height 1290 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 14

Documents

Declaration of Conformity (Sustainability)

SEA9BPN12514S8 REACh Regulation

Open

Instruction sheet

Acti9 - ISOBAR P Type B & ISOBAR Type B - Instruction Sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9BPN12514S8 EU RoHS Directive

Open

Declaration of conformity

EU declaration of conformity

Open

Declaration of Conformity (Sustainability)

SEA9BPN12514S8 OECD PFAS Regulation

Open

Declaration of Conformity (Sustainability)

SEA9BPN12514S8 POP Directive

Open
