X80 Backplane Extender Kit

Link copied
SKU
EAN
GTIN
MPN

X80 Backplane Extender Kit by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £515.82 to £674.28 excl. VAT. Voltimum+ members earn 79 points per unit.

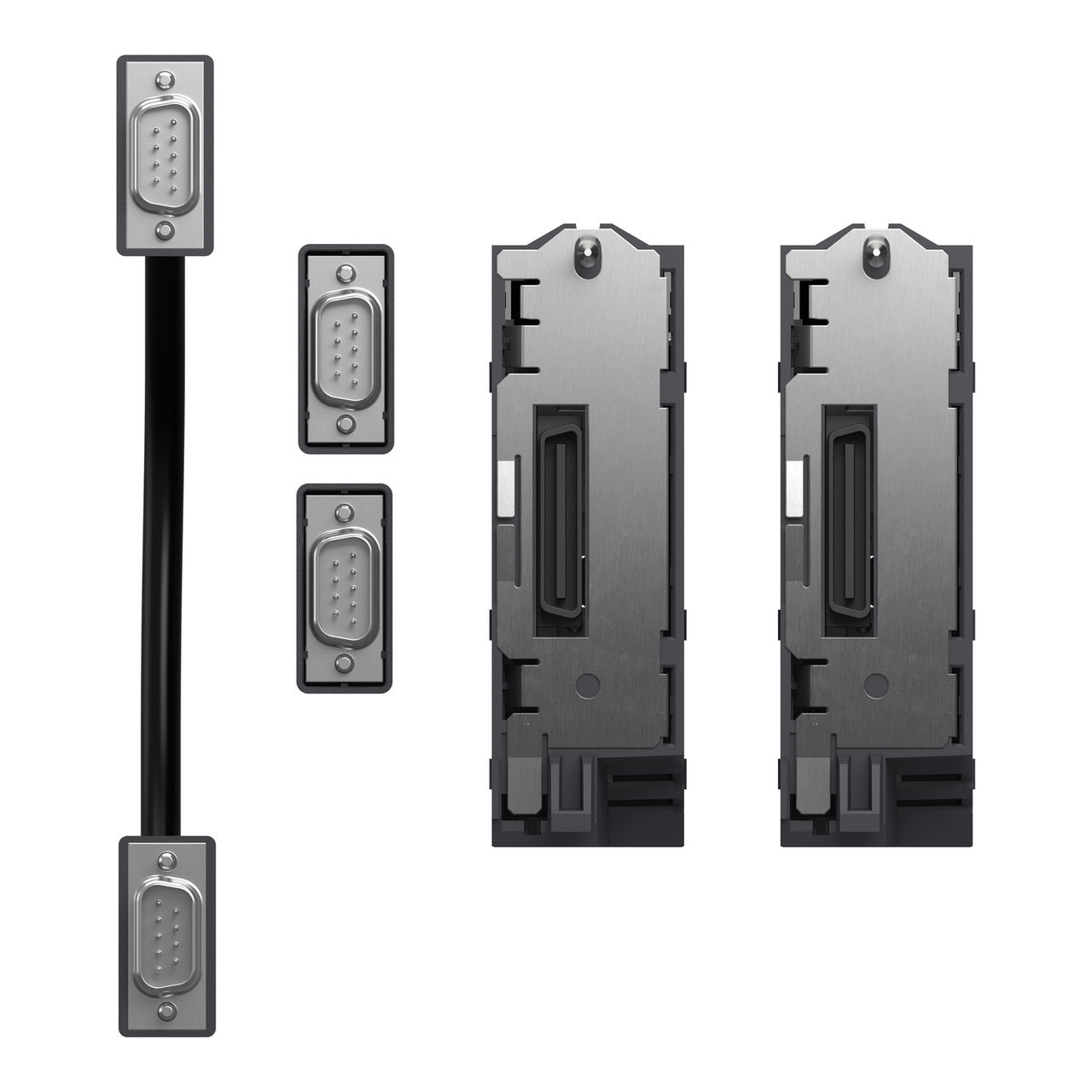

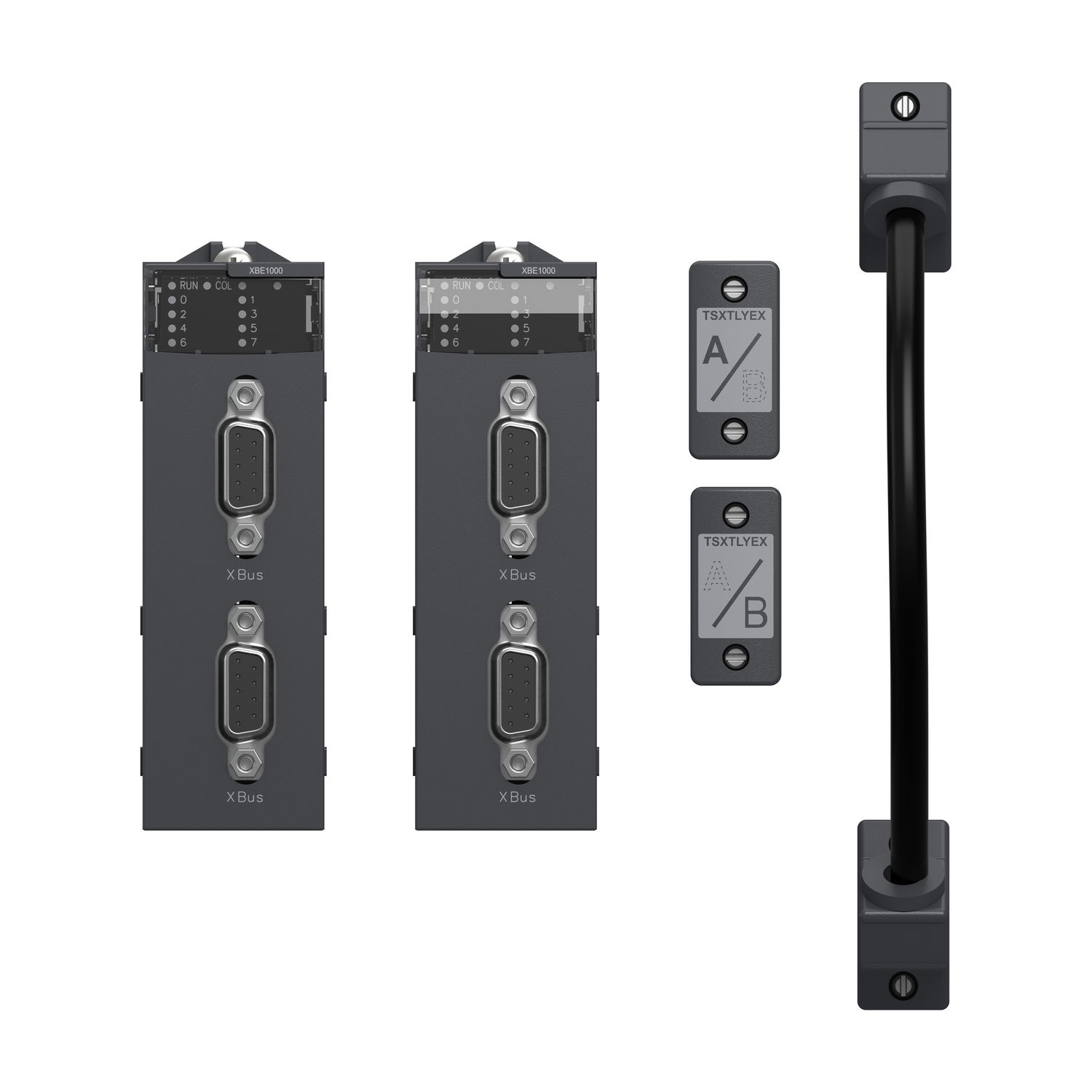

This I/O rack expansion kit is part of the Modicon X80 modules. This kit enables 2-rack configuration, with two BMXXBE1000 rack expansion modules. It also comprises, one BMXXBC008K extension cordset, length 0.8m and one TSXTLYEX line terminator (set of 2).

Voltimum+ Loyalty Programme Loyalty points: 79

Price range: £ 515.82 - £ 674.28 Excl. VAT

Specifications

Depth 90 mm
Width 32 mm
Height 103.7 mm
Redundancy no
Number of slots 8
Input voltage DC
Output voltage DC
Max. input current DC -
Input voltage AC 60 Hz
Rack-assembly possible yes
Front built-in possible yes
Output voltage AC 60 Hz
Suitable for rail mounting yes
Max. input current AC 60 Hz -
Max. output current AC 60 Hz -
Suitable for safety functions no
Type of voltage (input voltage) AC/DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust Other
