Schneider Electric

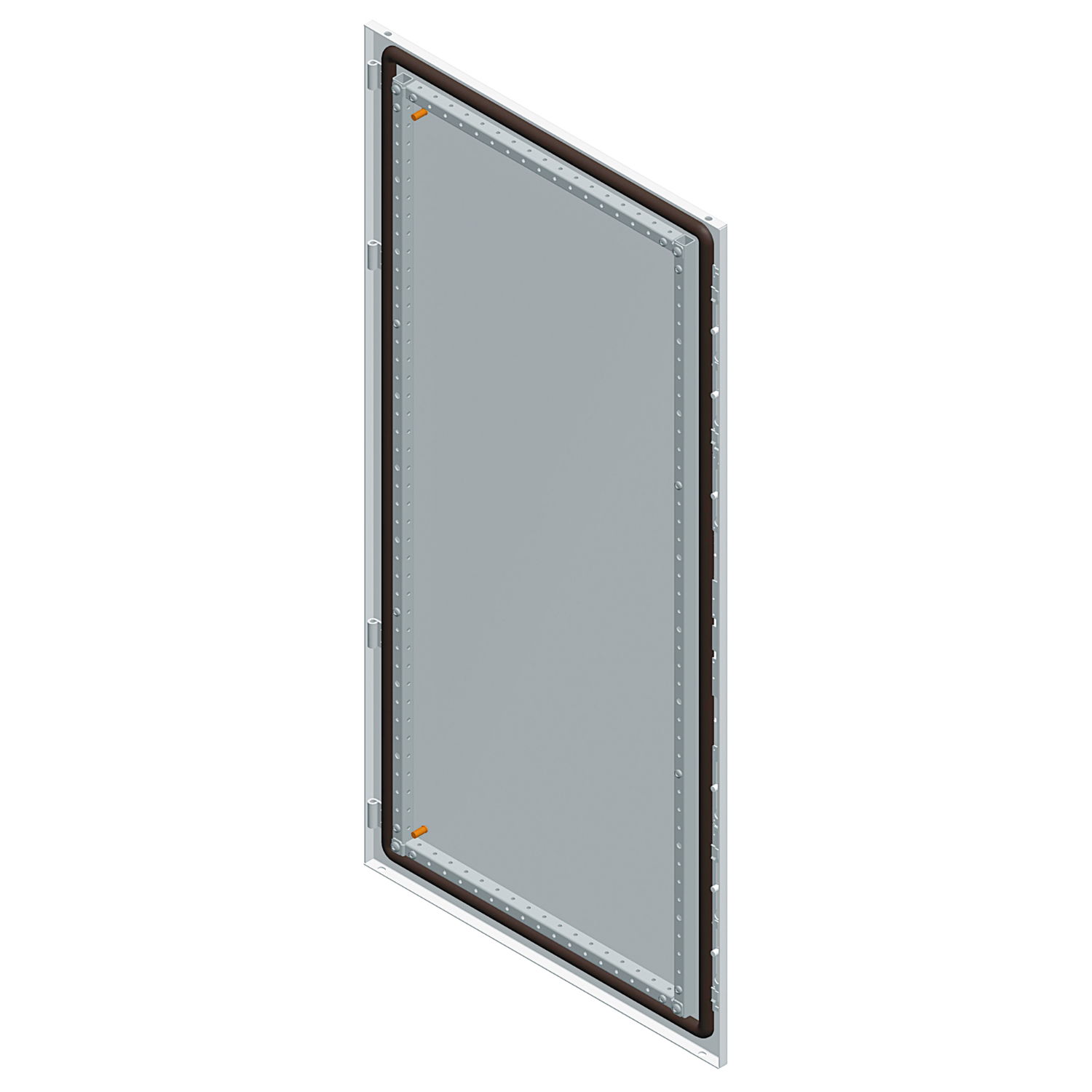

"PanelSet SF double plain doors - 2000x1600 mm"

"PanelSet SF double plain doors - 2000x1600 mm" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 67 points per unit.

Spacial SF/SM 2 plain doors for enclosure. 2199 x 1600 mm. Multi-purpose application. Mounting on front of enclosure. Lock 5 mm double bar. Opening angle is Reversible 120°. Sheet steel body, epoxy-polyester powder surface. Grey RAL 7035.

Product identifiers

SKU: NSYSFD20162D
EAN: 3606485119533
GTIN: 3606485119533
MPN: NSYSFD20162D

Voltimum+ Loyalty Programme Loyalty points: 67

Price: £ 404.00 Excl. VAT

Categories

Enclosures & Panels Electrical Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 26 mm
Model Symmetrically divided double wing door
Width 800 mm
Colour Grey
Height 2000 mm
Material Steel
EMC-version no
Surface finishing Powder coating
Degree of protection (IP) IP55
Version as door for disconnecting switch interlocking no

Documents

Deeplink product page

Open

Environmental compliance declaration

NSYSFD20162D REACh Declaration

Open

Instruction sheet

Spacial SF (kit supply) and main accessories - Instruction sheet

Open

Product data sheet

Open

Environmental compliance declaration

NSYSFD20162D EU RoHS Declaration

Open

Environmental disclosure

PanelSeT SM Normal Steel Monobloc enclosure

Open
