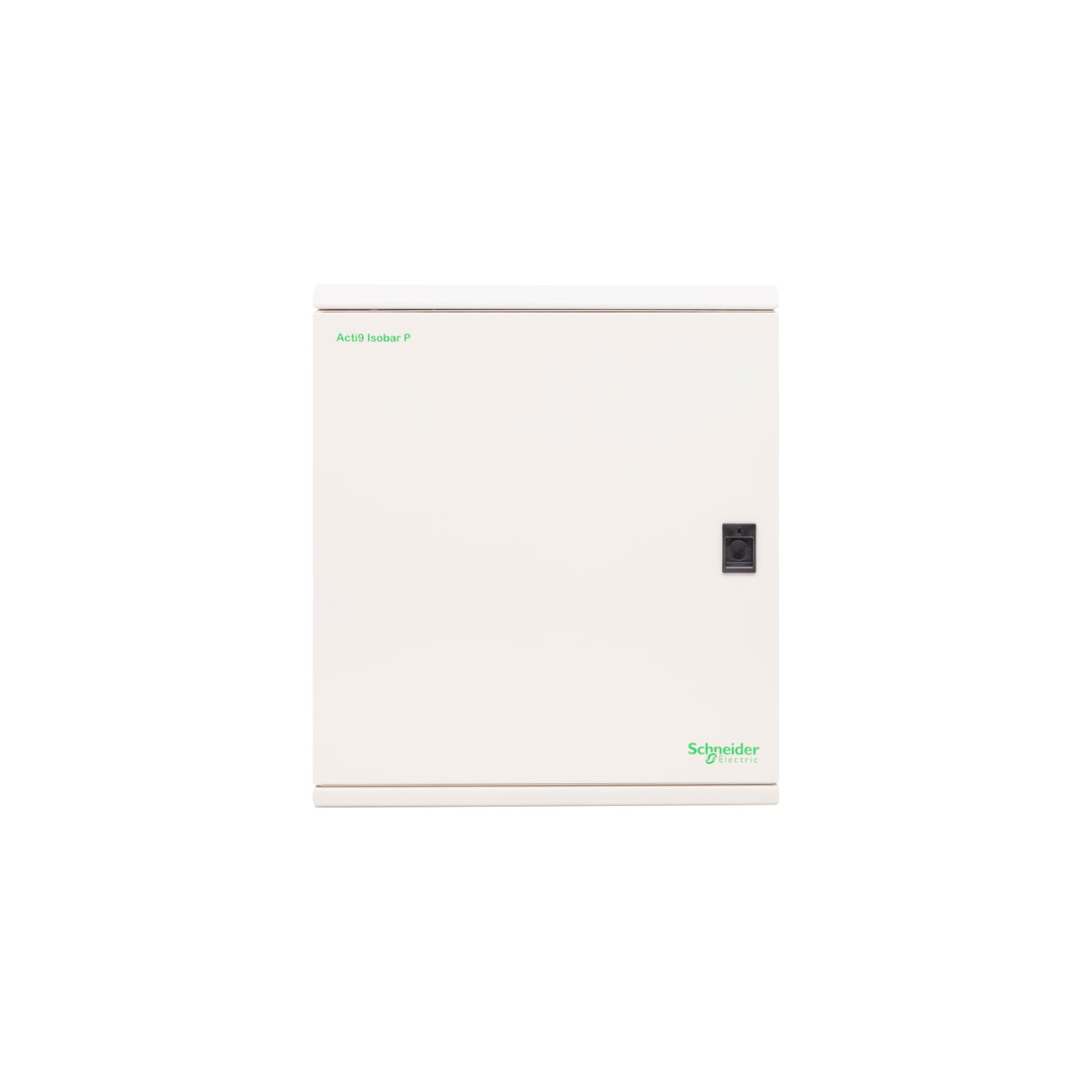

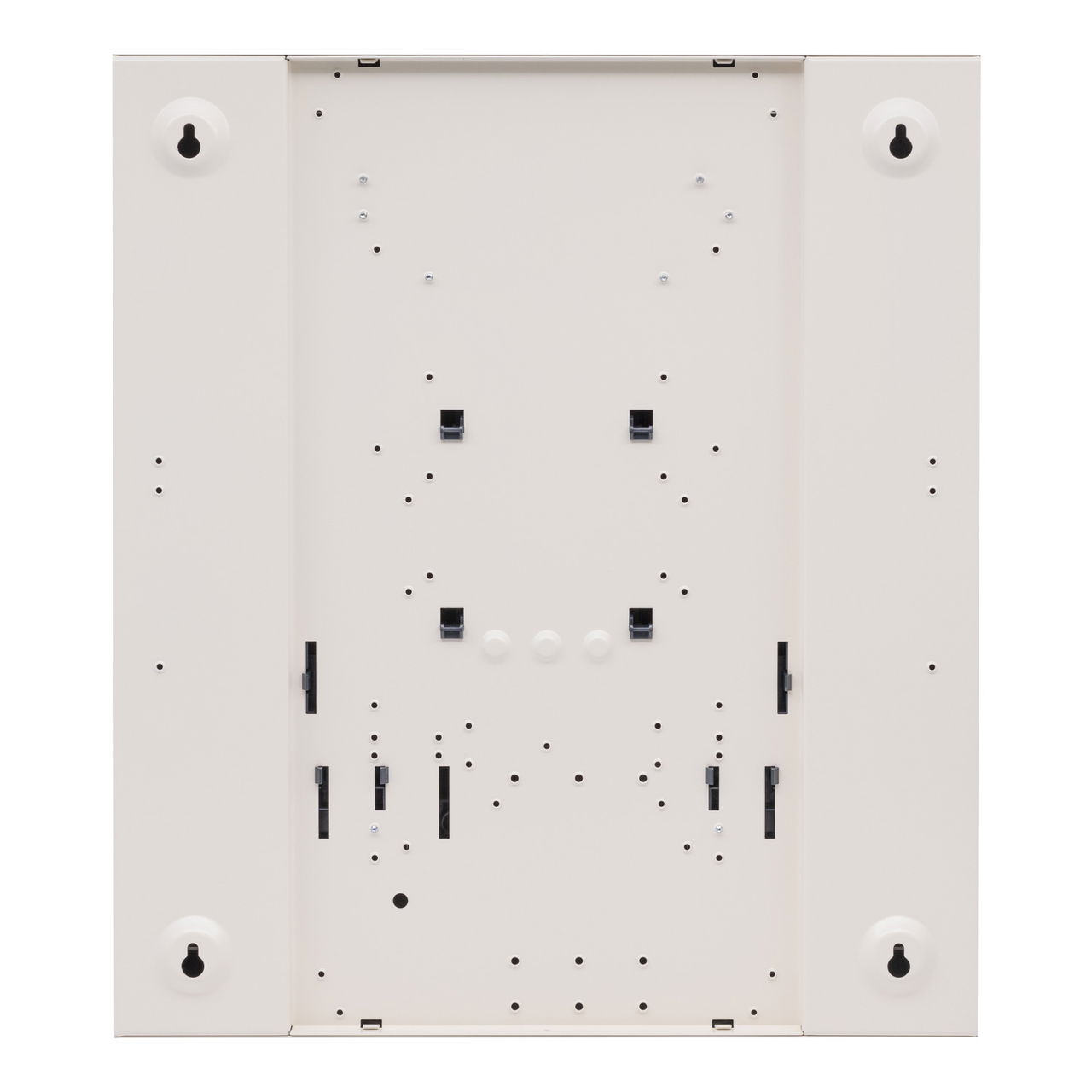

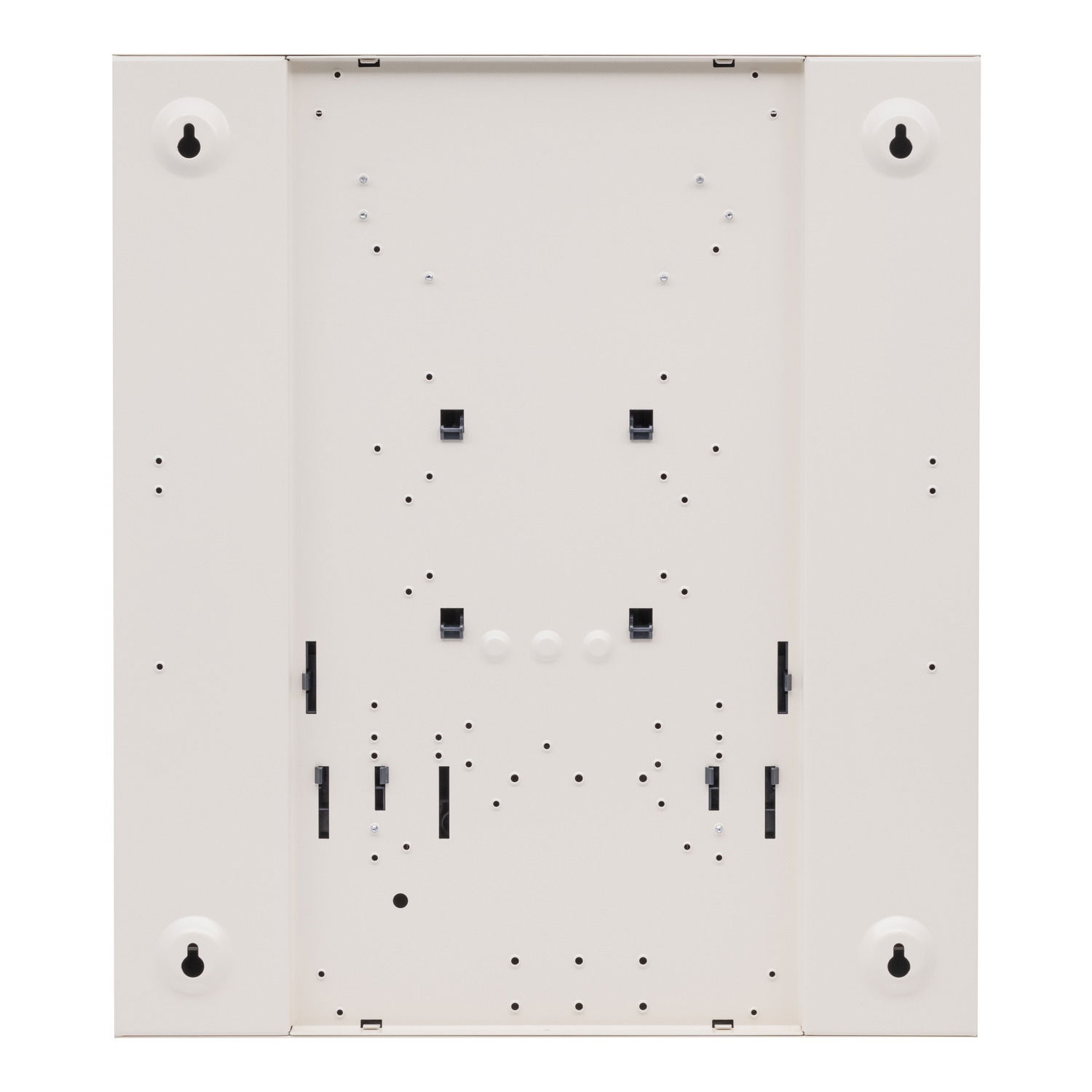

Acti9 Isobar B P - meter ready distribution board - 8 way TP+N

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar B P - meter ready distribution board - 8 way TP+N by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Rexel Group, City Electrical Factors and TLA. It is currently in stock at all of them. Trade prices range from £484.51 to £508.73 excl. VAT. Voltimum+ members earn 77 points per unit.

This Acti9 Isobar P B product is a meter ready distribution board, up to 125A. It is a 8 ways of 3 poles outgoer. This distribution board includes a 125A switch disconnector incomer and are enabled for an incoming meter connection. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 538mm x (D) 138mm. According to BS/EN 60529 standard, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL9001). This distribution board is compliant with BS/EN 61439-3 standard.

Voltimum+ Loyalty Programme Loyalty points: 77

Price range: £ 484.51 - £ 508.73 Excl. VAT

Specifications

Depth 138 mm
Width 470 mm
Colour Other
Height 538 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 8

Documents

Declaration of Conformity (Sustainability)

SEA9BPN8M REACh Regulation

Open

Instruction sheet

Acti9 Isobar P B Type Instruction Sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9BPN8M EU RoHS Directive

Open

Declaration of conformity

EU declaration of conformity

Open

Declaration of Conformity (Sustainability)

SEA9BPN8M POP Directive

Open

Declaration of Conformity (Sustainability)

SEA9BPN8M OECD PFAS Regulation

Open
