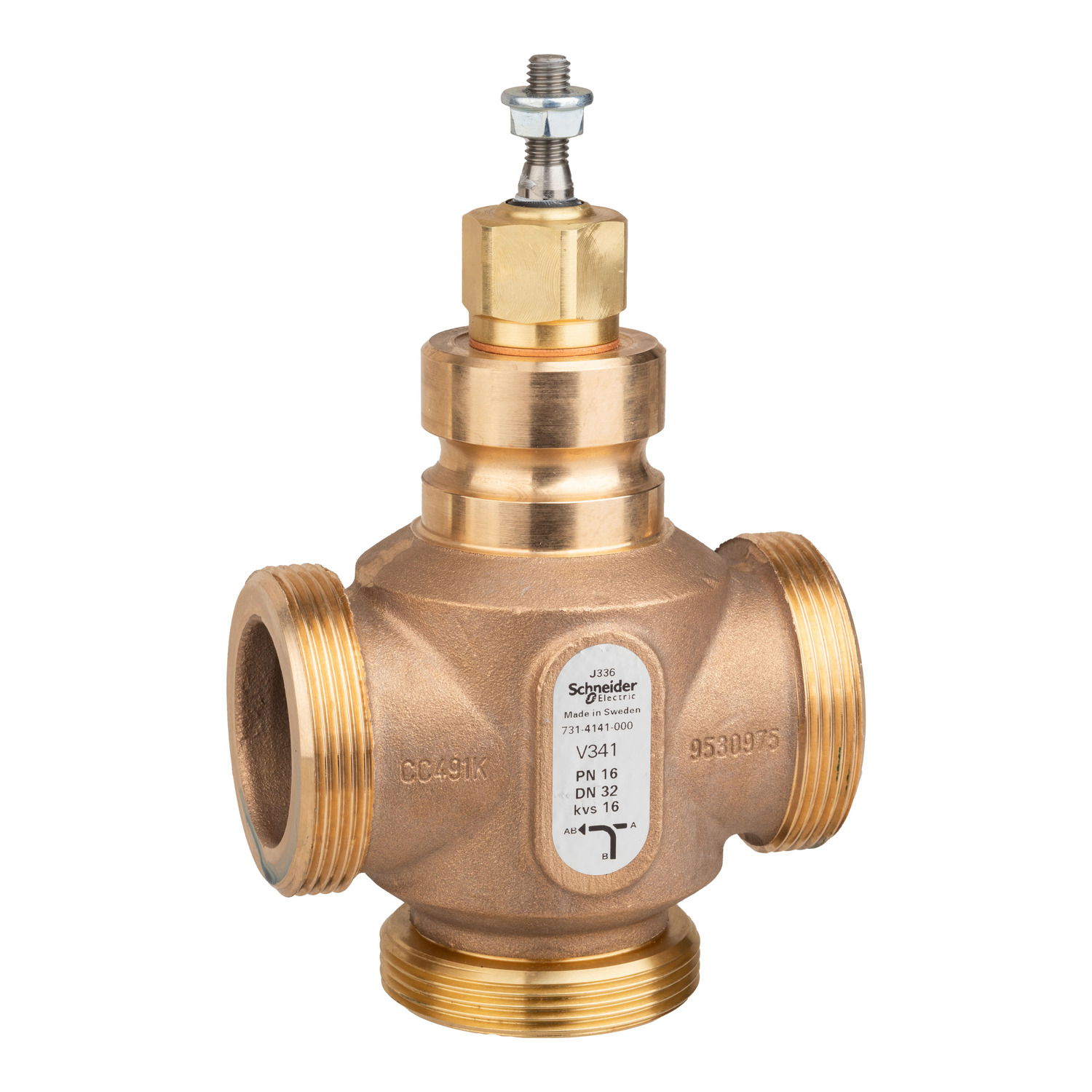

VB: 32 mm, 3W, Globe, G Ext, SS, 16 kvs, Glycol 25-50% and Water, Venta, No Steam

The V341 is an externally threaded 3-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 1:1 and is of a self cleaning design for reliable operation. Valve size: DN32, G External, Flow capacity, Kvs: 16 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 15 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G2 External (Male) Connection.
