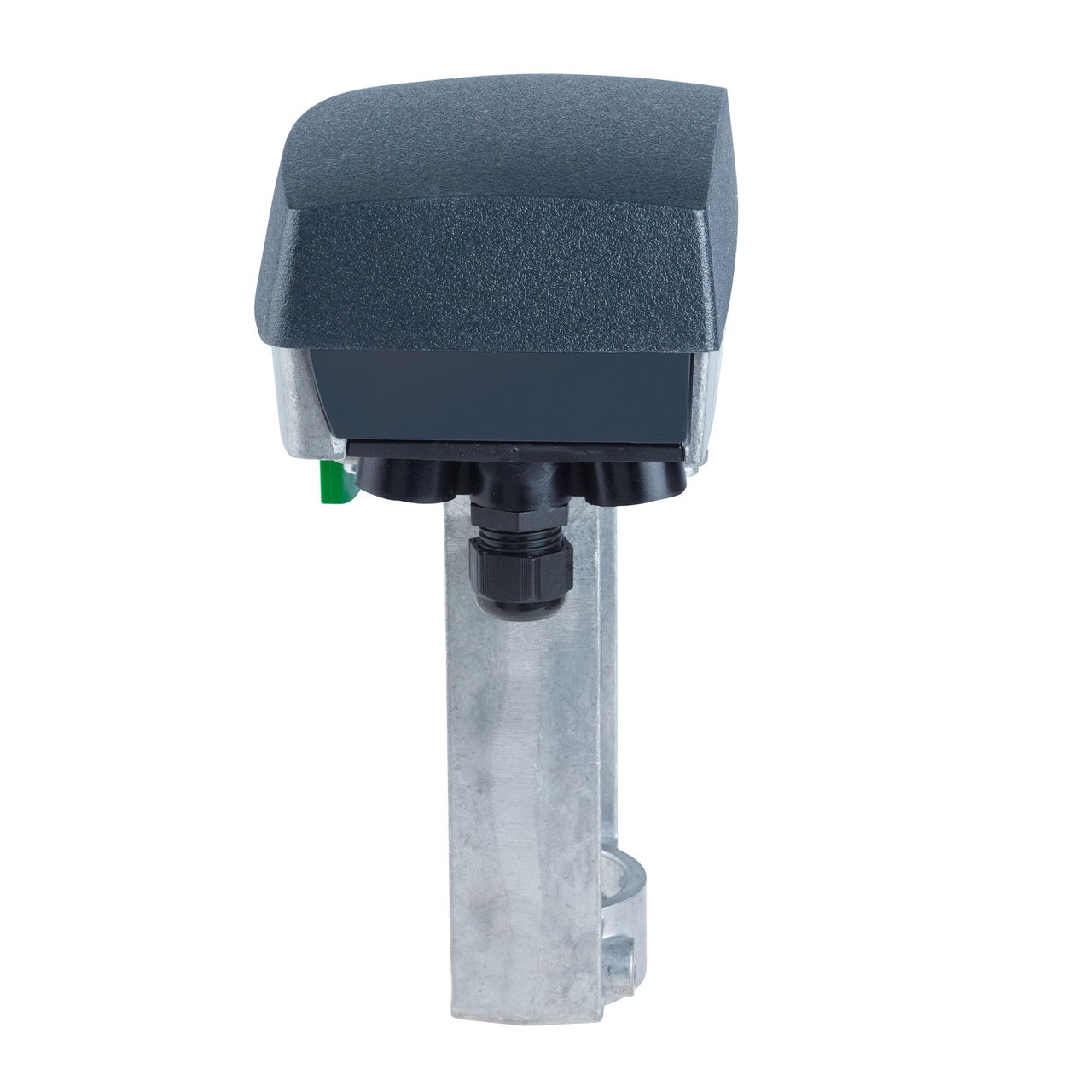

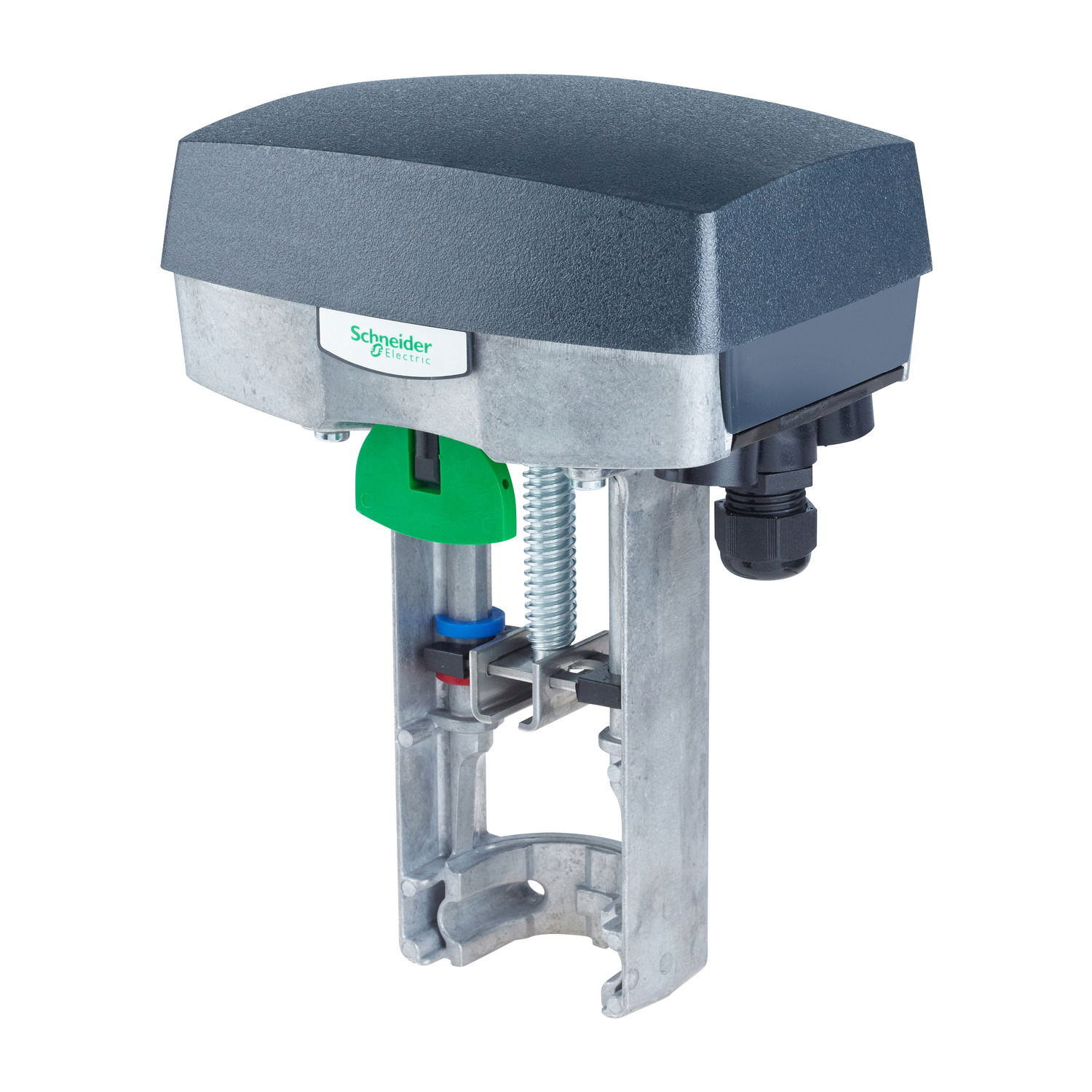

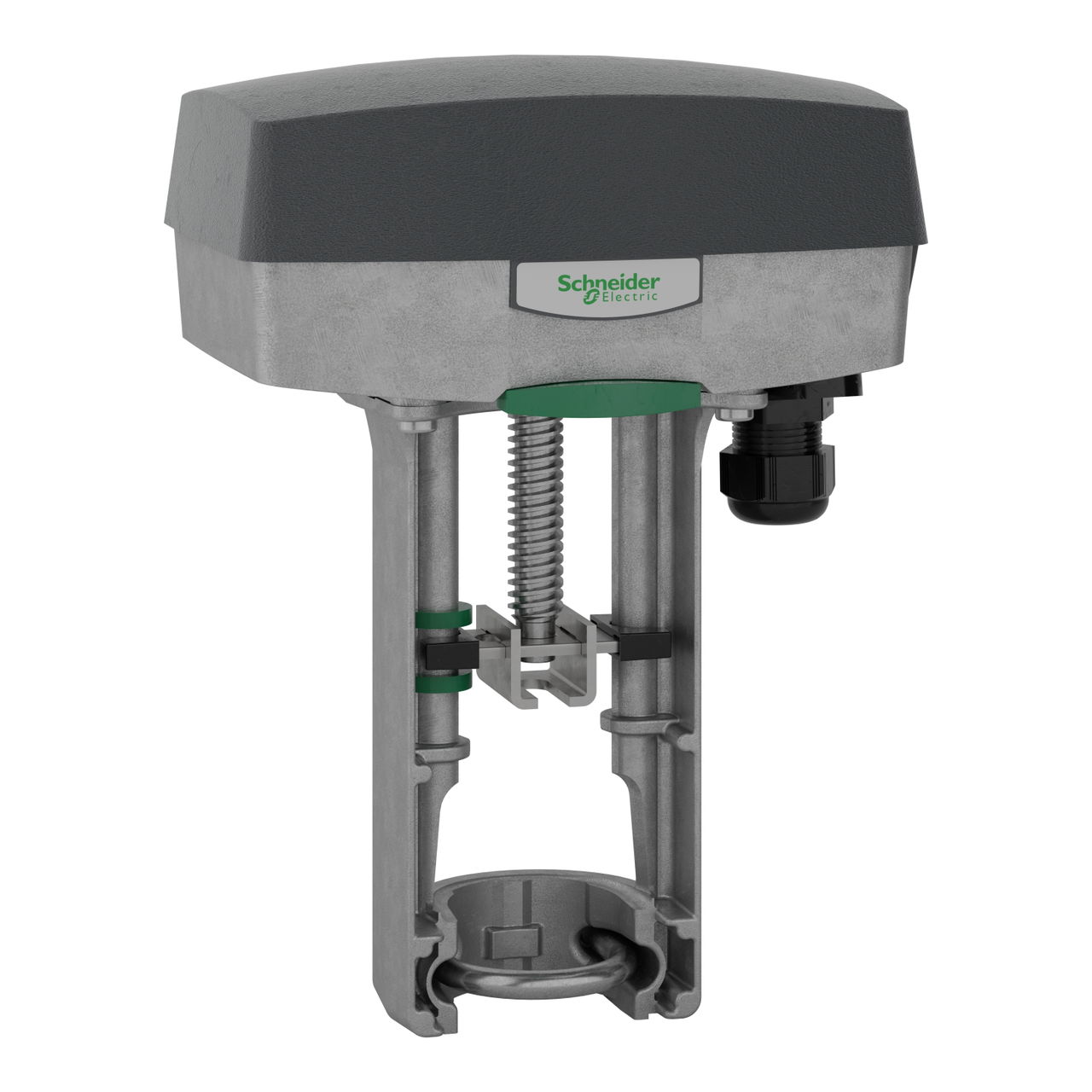

Electric Actuatort, Floating, Modulating, 0-10 VDC, Non-Spring Return, 24 VAC, TB, 300 N, Linear, SPDT, IP54, FORTA, Glo

Link copied
SKU
EAN
GTIN
MPN
The SpaceLogic is a family actuators for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 300 N, IP54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 214/3/EU, LVD 214/35/EU. Conduit connection 3 x M2 screwed.

Voltimum+ Loyalty Programme Loyalty points: 129

Price: £ 775.00 Excl. VAT

Specifications

Depth 252 mm
Model Linear
Width 181 mm
Height 133 mm
Torque -
End contacts None
Transmission -
Stroke length 32 mm
Operating time 20 s
Adjusting force 300 N
Housing material Aluminium
Auxiliary contacts yes
Ambient temperature
Max. angle of rotation -
Communications protocol -
Deactivated when closed yes
Connection to stop valve Other
Max. electric power input -
Adjustable operating range no
Regulation type modulating yes
Suitable for air accessory no
Auxiliary contacts optional no
Automatic stroke recognition no
Potential free switch contact no
Suitable for manual operation no
With mechanical setting indicator yes
Principle of operation safety function -
