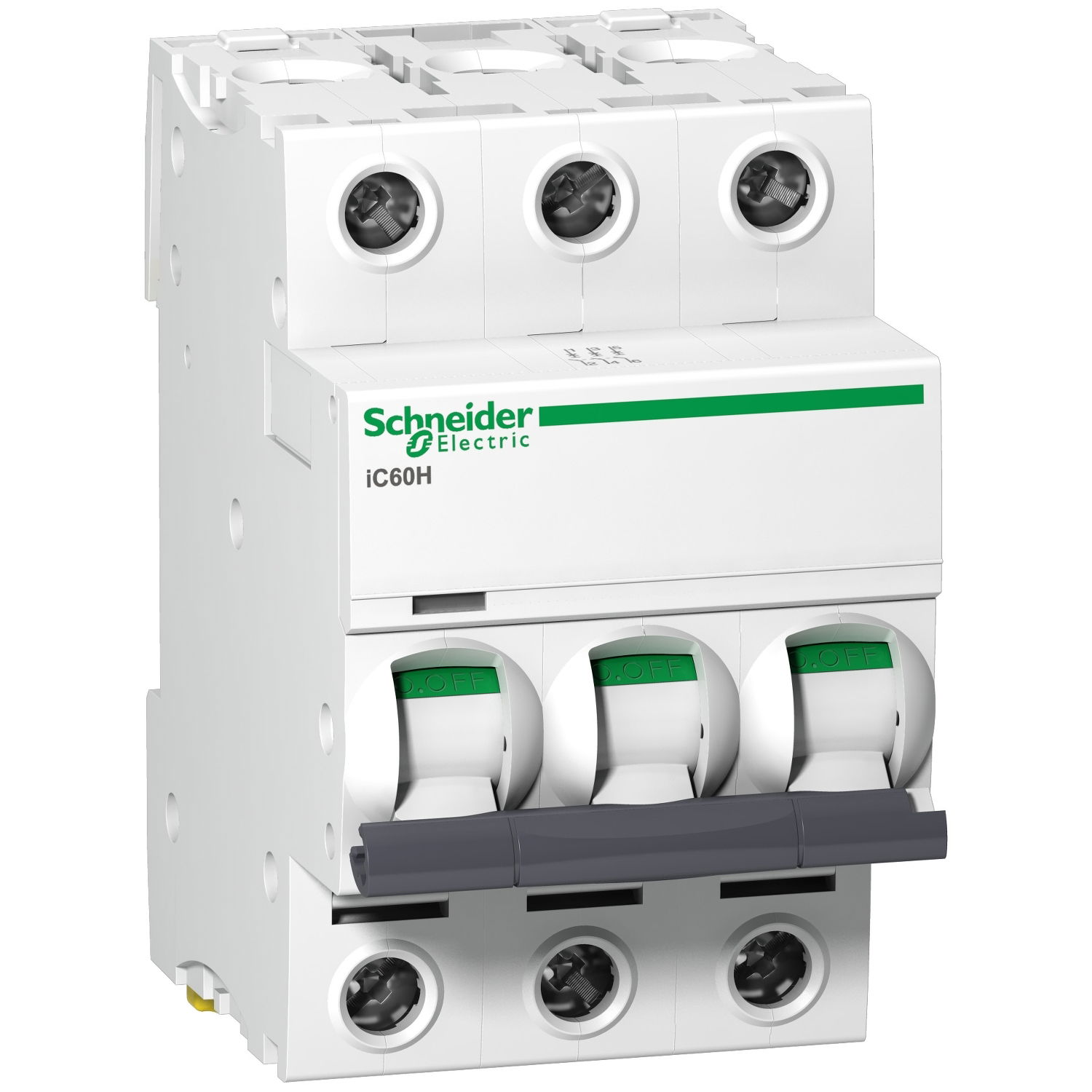

Acti9 iC60H 3P 16A D Miniature Circuit Breaker

Acti9 iC60H 3P 16A D Miniature Circuit Breaker by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £80.99 to £124.83 excl. VAT. Voltimum+ members earn 14 points per unit.

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 3P circuit breaker with 3 protected poles, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both residential standard EN/IEC 60898-1 and industrial standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 0.375kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Product identifiers

SKU: A9F55316
EAN: 3606480515453
GTIN: 3606480515453
MPN: A9F55316

Voltimum+ Loyalty Programme Loyalty points: 14

Price range: £ 80.99 - £ 124.83 Excl. VAT

Categories

Circuit Breakers MCBs Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Frequency
Power loss 2.4 W
Voltage type AC/DC
Rated current 16 A
Rated voltage 400 V
Built-in depth 44.5 mm
Explosion-proof no
Pollution degree 3
Current limiting class 3
Number of poles (total) 3
Number of protected poles 3
Rated insulation voltage Ui 500 V
Width in number of modular spacings 3
Rated impulse withstand voltage Uimp 6 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V -
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 30 kA

Documents

Declaration of Conformity (Sustainability)

A9F55316 REACh Regulation

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

A9F55316 EU RoHS Directive

Open

Declaration of conformity

DEC-EU1007379-2 -iC60aNHL

Open

Declaration of Conformity (Sustainability)

A9F55316 POP Directive

Open

Declaration of Conformity (Sustainability)

A9F55316 OECD PFAS Regulation

Open

Environmental Disclosure

Acti9 - Miniature Circuit Breaker - iC60N - 1P 16A curve B - Product Environmental Profile

Open
