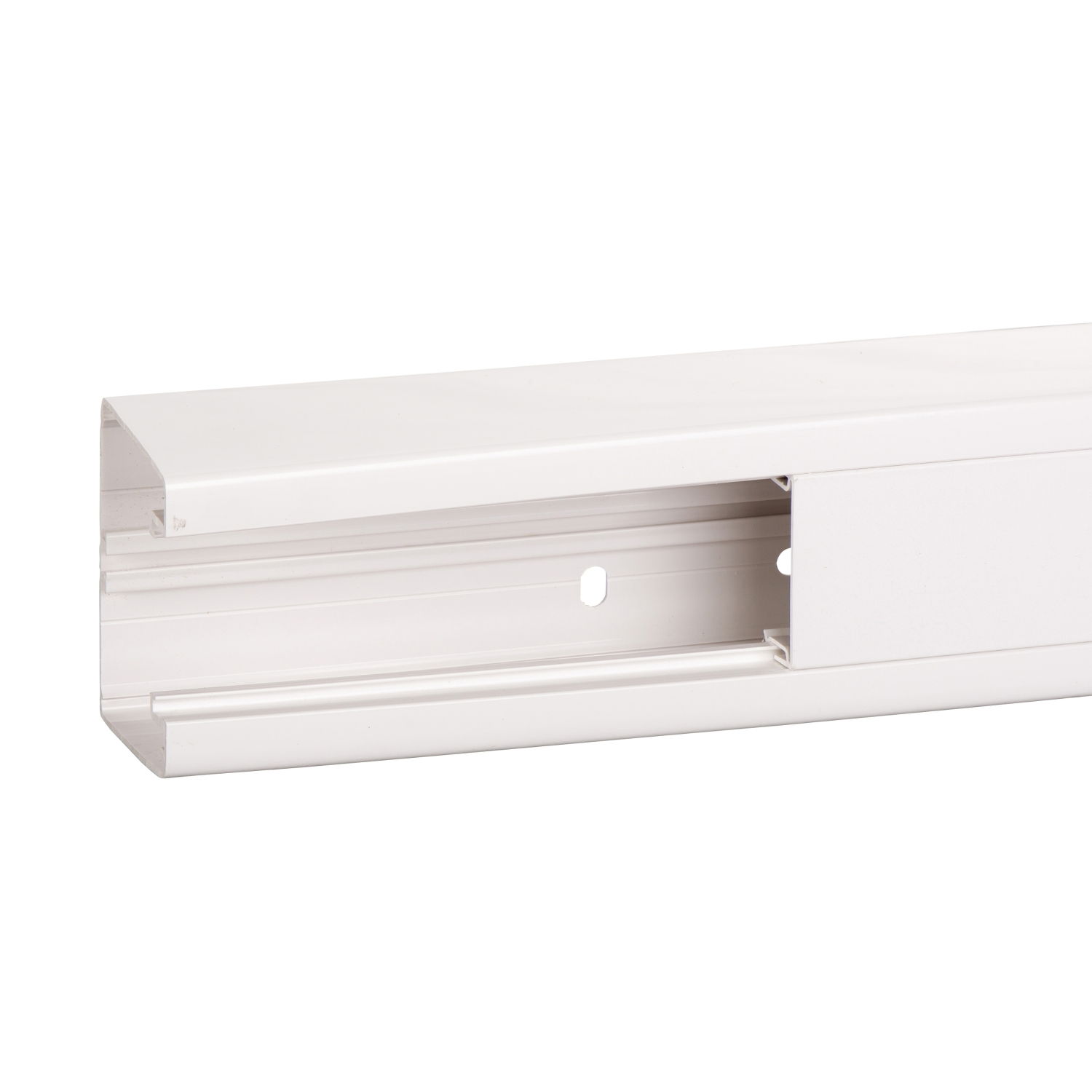

OptiLine 45 - installation trunking - 75x55 mm - PVC - polar white - 3000 mm

Name: OptiLine 45 - installation trunking - 75x55 mm - PVC - polar white - 3000 mm
Brand: Schneider Electric
SKU: ISM10110P

Product identifiers

SKU: ISM10110P

EAN: 3606480681578

GTIN: 3606480681578

MPN: ISM10110P

Price: £ 0.00 Excl. VAT

Specifications

Depth	55 mm
Width	75 mm
Colour	White
Length	3000 mm
Material	Plastic
Symmetric	yes
RAL-number	9003
Halogen free	no
Cover width 1	45 mm
Cover width 2	-
Cover width 3	-
Covers included	yes
Impact strength	IK07
Material quality	Polyvinyl chloride (PVC)
Number of covers	1
Bottom perforation	yes
Surface protection	Untreated
With duct connector	no
Useful cross section	3508 mm²
With protective foil	yes
Mounting method cover	Inner lying
Operating temperature
With cable fixing clip	no
Anti-bacterial treatment	no
Degree of protection (IP)	IP40
Number of plug-in partitions	1
Construction type rectangular	yes
Construction rear wall (inner side)	Continuous other profile
