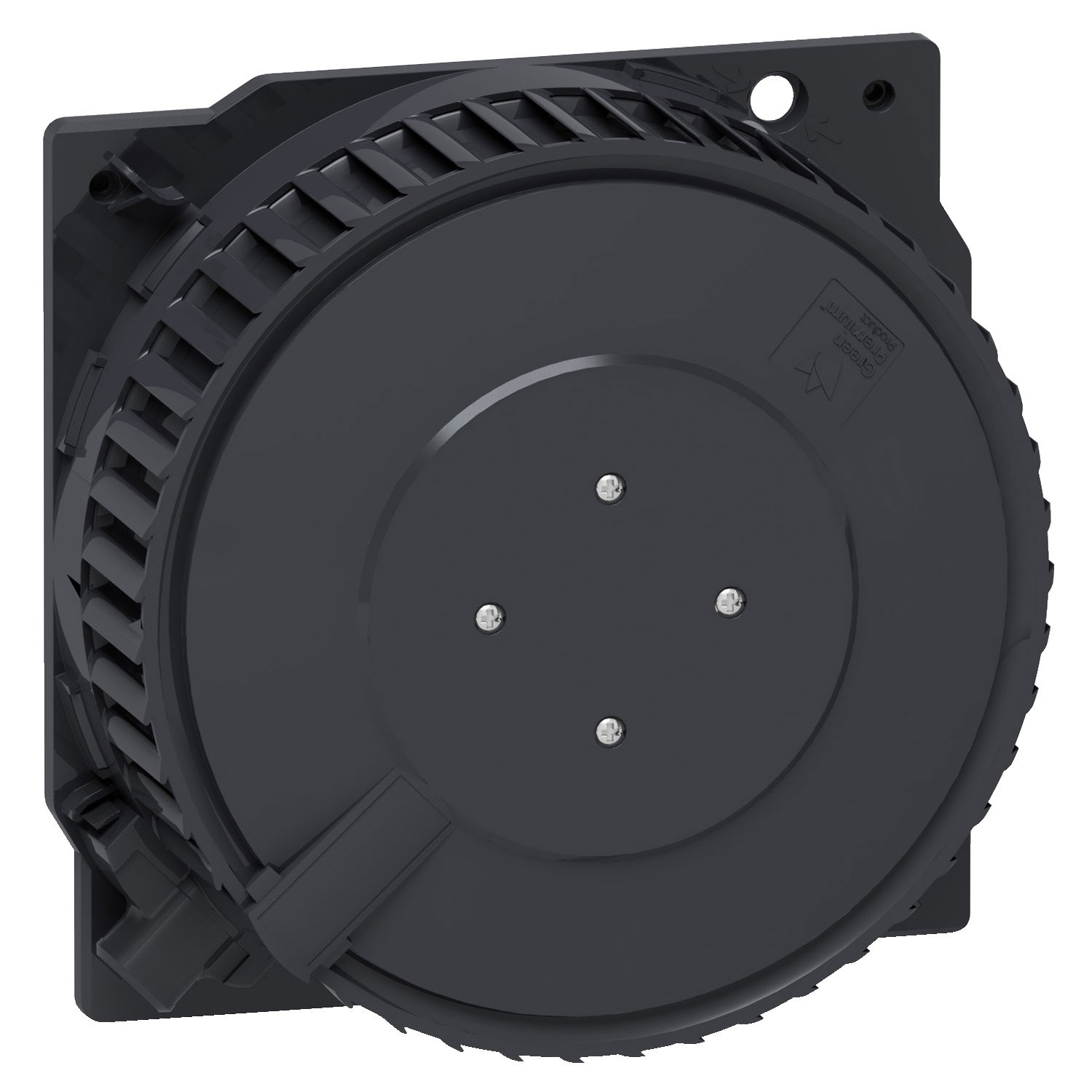

ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC
ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC
ClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 230VAC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 2 of them. Trade prices range from £330.84 to £389.22 excl. VAT. Voltimum+ members earn 48 points per unit.
ClimaSys CV Fanbox without grille and filter 230V 50Hz or 60Hz. 72 W 50 Hz, 88 W 60 Hz. Free flow rate with standard filter of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz. 350 Pa flow rate 0 m³/h. 223 x 223 x 90 mm. Spring clamp terminal. 1 fanbox and 4 screws. Dark grey (RAL 7016) . 1.7 kg. Ball bearing type Protection IP44 and IP55 grid.
Product identifiers
SKU: NSYCVF550M230FB
EAN: 3606480678769
GTIN: 3606480678769
MPN: NSYCVF550M230FB
Loyalty points:
48
Price range: £ 330.84 - £ 389.22 Excl. VAT
ETIM group
Specifications
| Depth | 90 mm |
| Width | 222.8 mm |
| Colour | Grey |
| Height | 222.8 mm |
| RAL-number | 7035 |
| EMC-version | no |
| Rated power | 1500 W |
| With filter | no |
