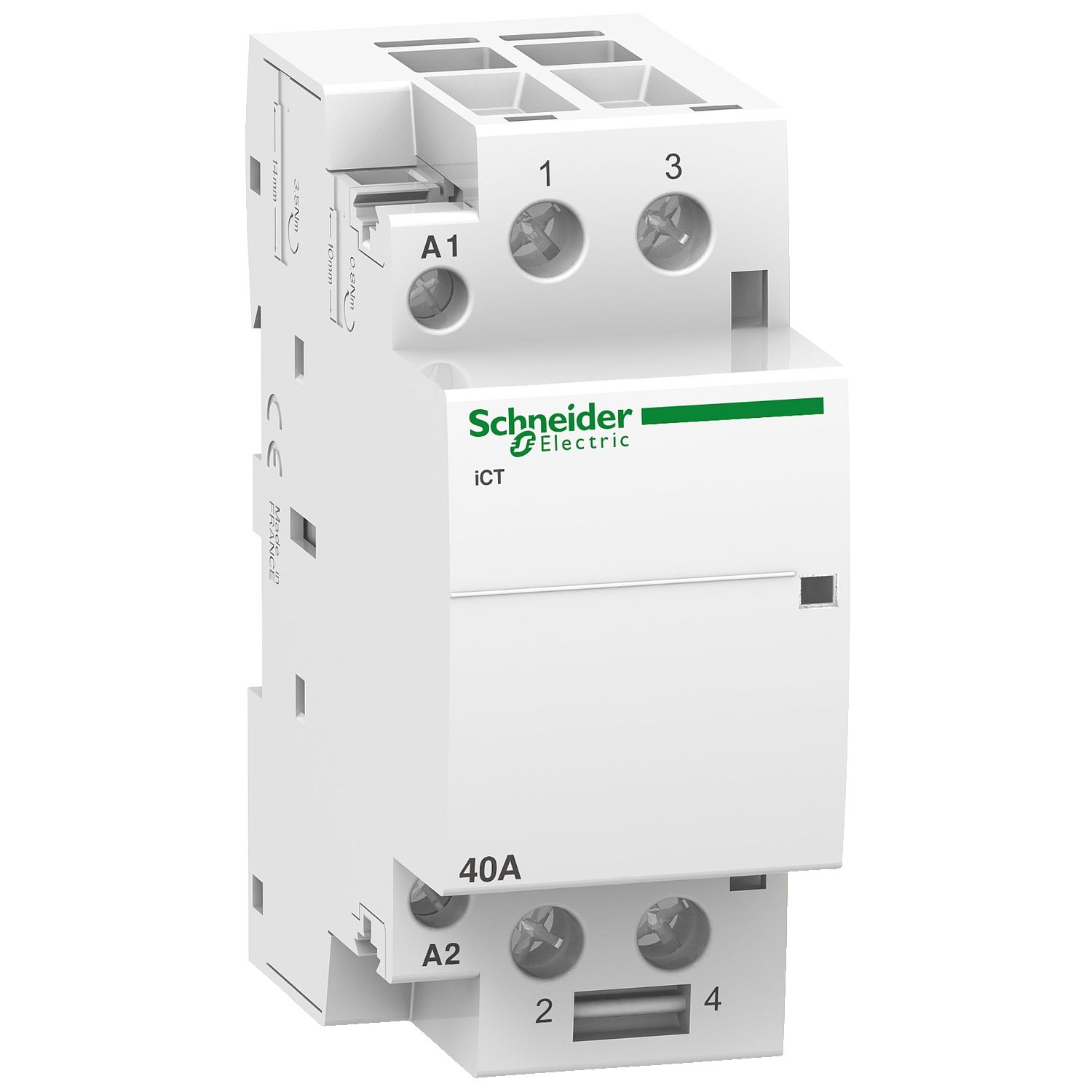

Contactor iCT - 2 poles - 2 NO - 40 A - 220..240 V AC

Link copied
SKU
EAN
GTIN
MPN

Contactor iCT - 2 poles - 2 NO - 40 A - 220..240 V AC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £75.39 to £105.03 excl. VAT. Voltimum+ members earn 12 points per unit.

This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The rated current is 40A for AC-7a and 15A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Voltimum+ Loyalty Programme Loyalty points: 12

Price range: £ 75.39 - £ 105.03 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Devices for distribution board-/surface mounting

Specifications

Hum-free no
Built-in depth 43.5 mm
Slider for hand switch no
Rated operating voltage
Rated operation current 40 A
With day/night function no
Rated excitation voltage
Degree of protection (IP) IP20
Max. incandescent lamp load 5250 W
Voltage type (operating voltage) AC
Width in number of modular spacings 2
Number of contacts as normally open contact 2
Max. load fluorescent lamp (parallel compensated) 2400 VA

Documents

Declaration of Conformity (Sustainability)

A9C20842 REACh Regulation

Open

Product data sheet

Open

Catalog

Ready to install Distribution and Control products - Acti 9

Open

Declaration of Conformity (Sustainability)

A9C20842 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

A9C20842 POP Directive

Open

Declaration of Conformity (Sustainability)

A9C20842 OECD PFAS Regulation

Open

Environmental Disclosure

Acti9 iCT - Modular Contactors - 1P/2P/3P/4P from 16A to 100A - Product Environmental Profile

Open

CAD

Open
