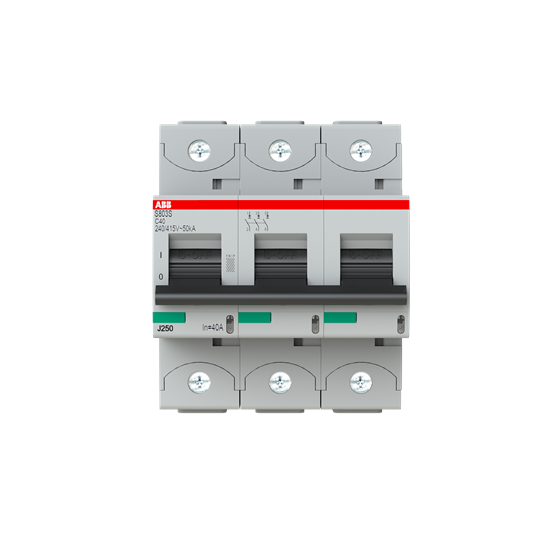

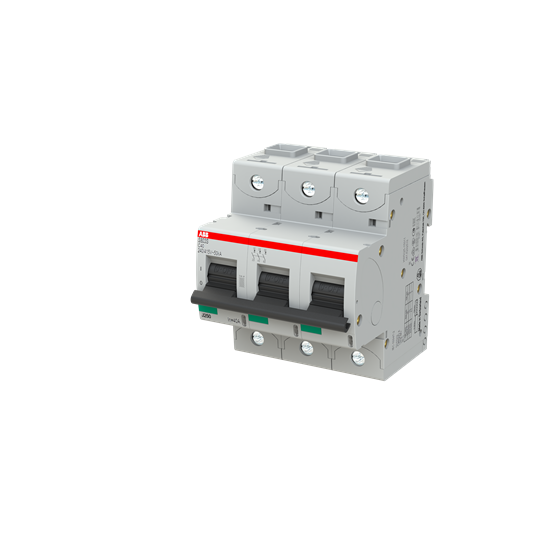

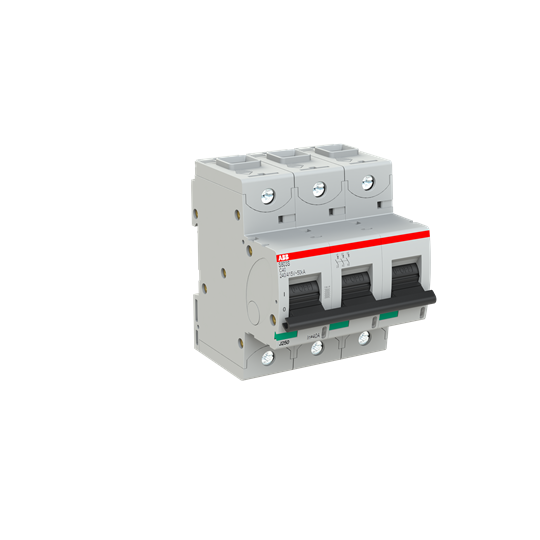

S803S-C40 High Performance MCB

The S803S-C40 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 40 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C40 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C40 more comfortable. Due to the fast arc extinction of S803S-C40 your application will be secured.

Product identifiers

SKU: 2CCS863001R0404
EAN: 7612271200787
GTIN: 7612271200787
MPN: S803S-C40

V+ Loyalty points:

124

Price: £ 281.17 Excl. VAT

Categories

Circuit Breakers MCBs Switchgear & Circuit Protection

Specifications

Frequency
Power loss 11.1
Voltage type AC/DC
Rated current 40
Rated voltage
Built-in depth 82.5
Explosion-proof no
Pollution degree 3
Current limiting class 3
Number of poles (total) 3
Number of protected poles 3
Rated insulation voltage Ui 690
Width in number of modular spacings 4.5
Rated impulse withstand voltage Uimp 8
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V -
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V -
