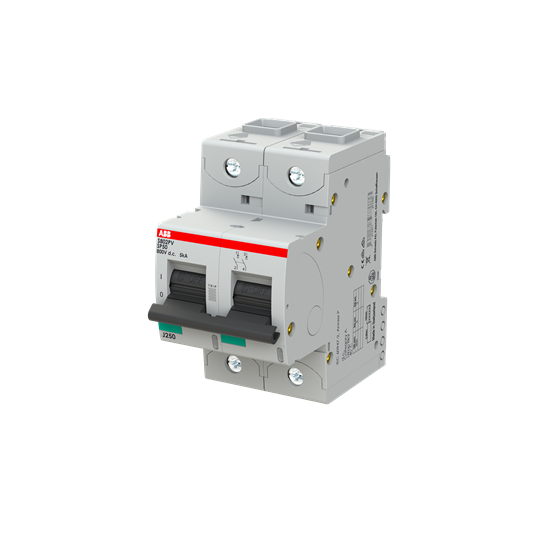

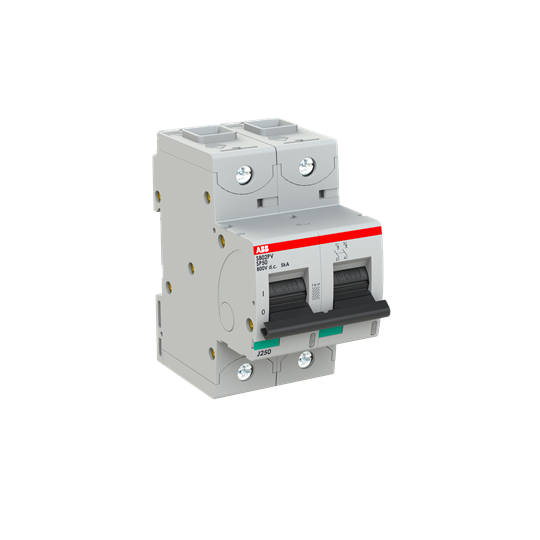

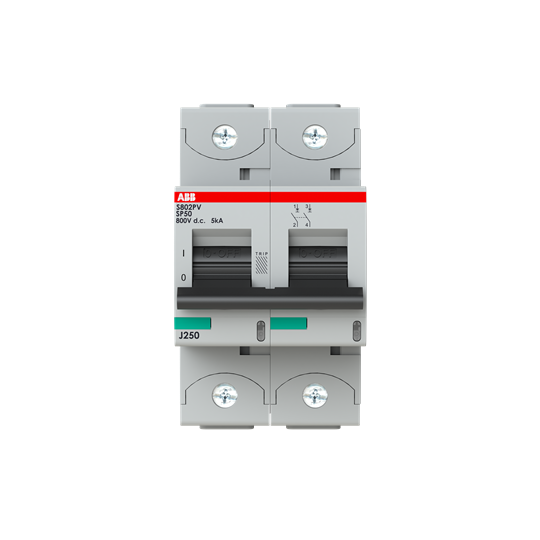

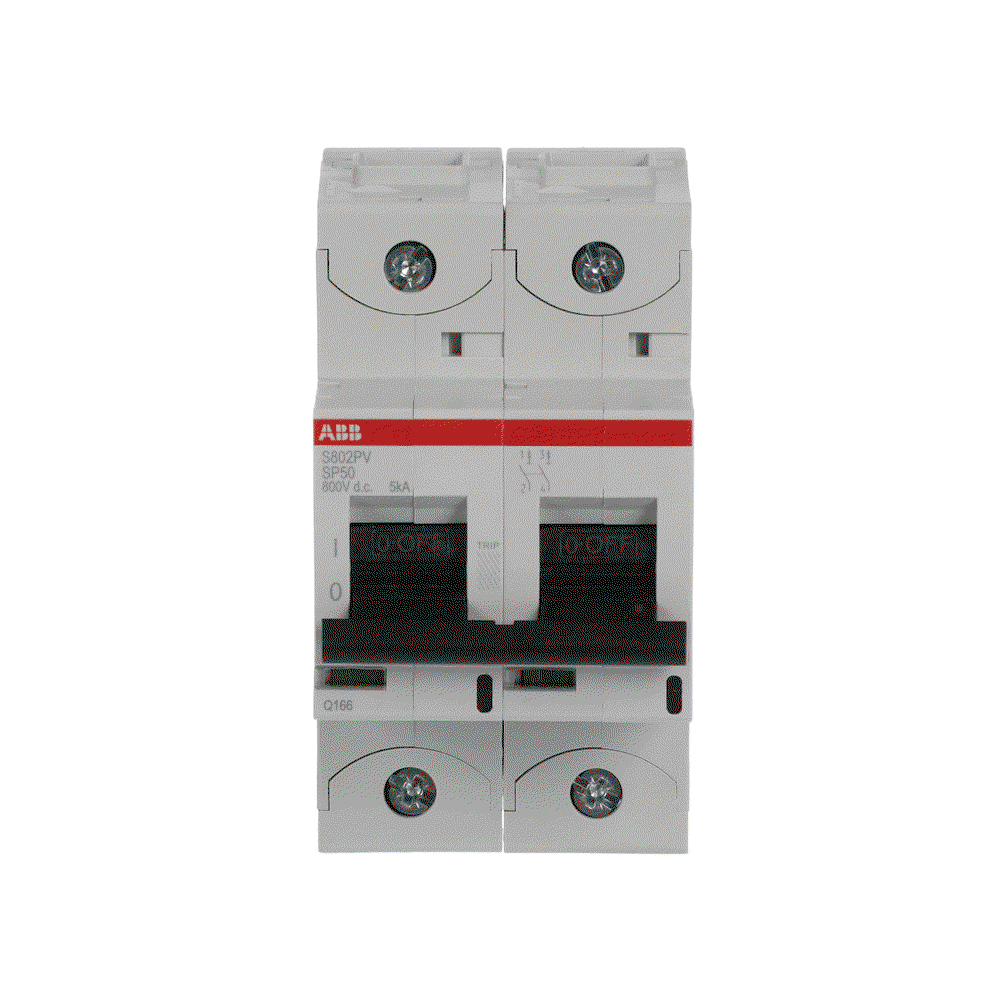

S802PV-SP50 High Performance MCB
S802PV-SP50 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £231.68 excl. VAT. Voltimum+ members earn 113 points per unit.
The S802PV-SP50 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 50 A. It is a current limiting device with a maximum breaking capacity of 5kA at 800V. It can be used for voltages up to 800V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-SP50 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-SP50 more comfortable. Due to the fast arc extinction of S802PV-SP50 your application will be secured.
Product identifiers
SKU: 2CCF019604R0001
EAN: 7612271471330
GTIN: 7612271471330
MPN: S802PV-SP50
Loyalty points:
113
Price: £ 231.68 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 8.6 |
| Voltage type | DC |
| Rated current | 50 |
| Rated voltage | - |
| Built-in depth | 82.5 |
| Explosion-proof | no |
| Pollution degree | 2 |
Documents
Deeplink product page
Deeplink REACH
9AKK108468A3036 EU REACH Declaration S800 range.pdf
Instructions for use
Instruction Manual S800 - Rev. N.pdf
Product data sheet
Declaration RoHS
2CCC005084D0202 EU Declaration S800S-UC,HV,PV-SP.pdf
Declaration EPD (Environmental Product Declaration)
