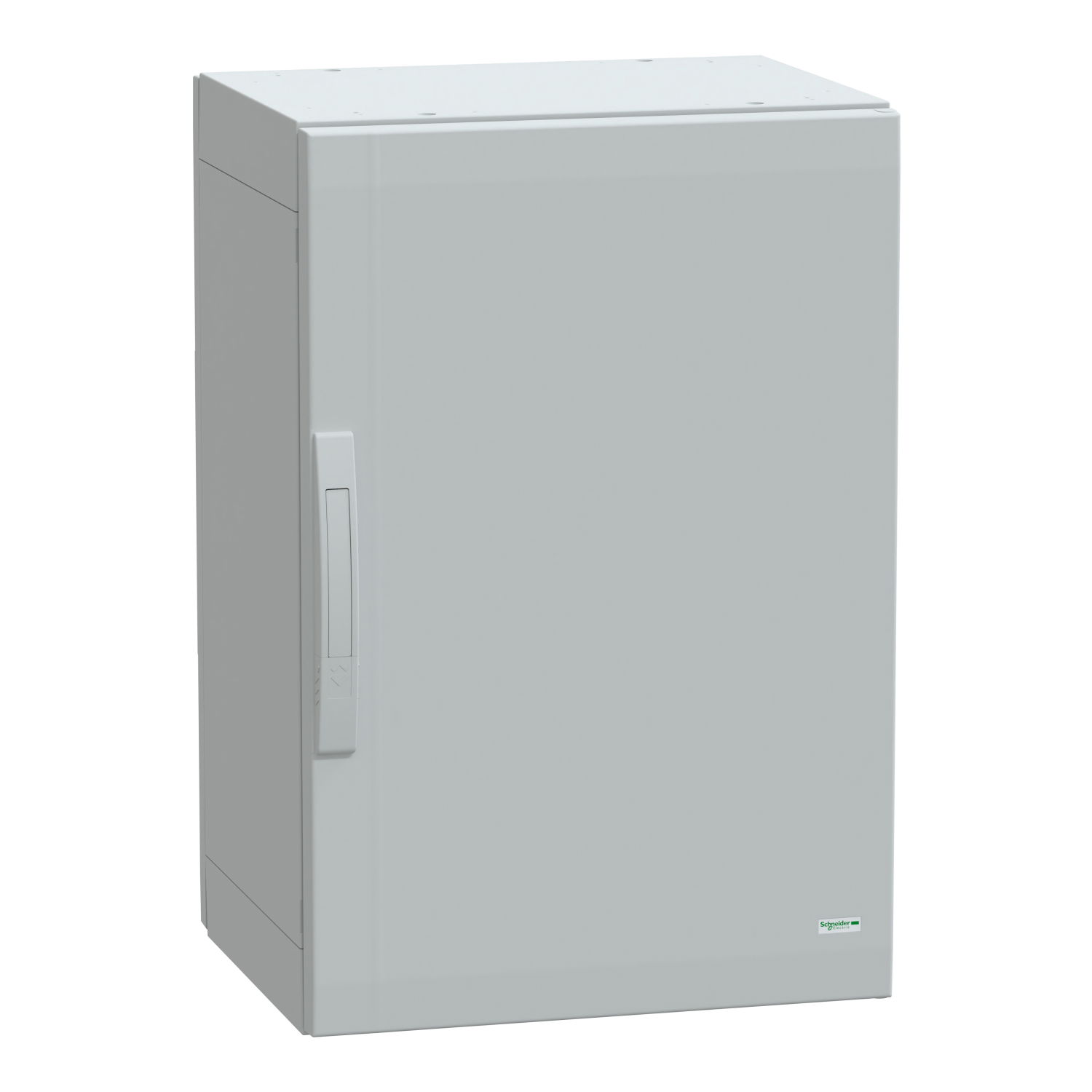

Floor standing enclosure polyester vers.PLA completely sealed 750x500x420 IP65

Floor standing enclosure polyester vers.PLA completely sealed 750x500x420 IP65 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 65 points per unit.

"This PLA is a multi-purpose, floor-standing unit that is ideal for a variety of applications" "It measures 750mm in height, 500mm in width, and 420mm in depth and is made of polyester reinforced with fiberglass" "This material provides the enclosure with durability and resistance to harsh environments, both indoor and outdoor" "The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy" "The front door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door features a two-point lock with a 5mm double-bar insert" "The rear panel and door can be removed for maintenance purposes" "The enclosure provides robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C, in accordance with the IEC 62208 standard, and has an IK10 rating according to IEC 62262, indicating high resistance to impacts" "It is rated IP65 (IEC 60529), offering complete protection against dust and water" "Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL/cUL listed and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Product identifiers

SKU: NSYPLA754G
EAN: 3606480775093
GTIN: 3606480775093
MPN: NSYPLA754G

Voltimum+ Loyalty Programme Loyalty points: 65

Price: £ 389.00 Excl. VAT

Specifications

Depth 420 mm
Width 500 mm
Colour Grey
Height 750 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 13
Suitable for metrical mounting no
Max. permissible load of the door(s) according to IEC 62208 108 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
