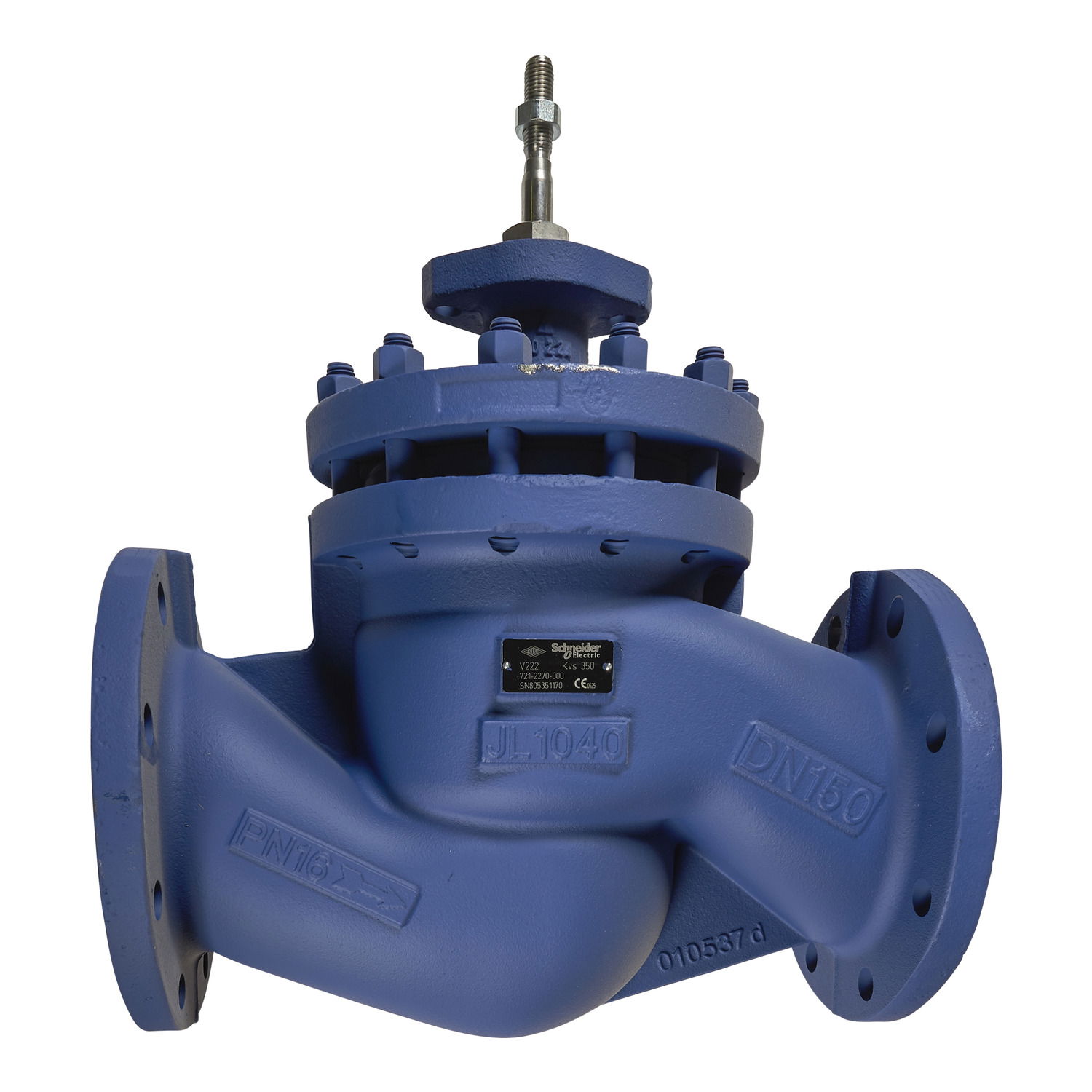

VB: 150 mm, 2W, Globe, FLG, DC, SS, 350 kvs, Glycol 25-50% and Water, No Steam

Link copied
SKU
EAN
GTIN
MPN
V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN150, Kvs 350, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed

Voltimum+ Loyalty Programme Loyalty points: 489

Price: £ 2,931.00 Excl. VAT

Categories

Specifications

EFDE0006 -
EFDE0007 -
EFDE0048 -
EFDE0049 -
Kv value
Kvs value 350
Axle height -
Connection 1 Flange
Stroke length 50 mm
Material quality Cast iron EN-GJL-250 (GG 25)
Control ratio (Svo) -
Suitable for cooling yes
Automatic flow control no
Length of connection 2 -
Flange compression class PN 16
Article compression class PN 16
Contour code connection 2 -
With flow measuring point -
With coupling connection 1 -
Working length connection 1 -
Nominal diameter connection 1 6 inch (150)
Medium temperature (continuous)
Outer pipe diameter connection 2 -

Documents

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

7212270000 EU RoHS Directive

Open
