Component terminal block double-deck with 2 diodes 1N4007 gray

Name: Component terminal block double-deck with 2 diodes 1N4007 gray
Brand: Wago
SKU: 2002-2214/1000-490
Availability: InStock

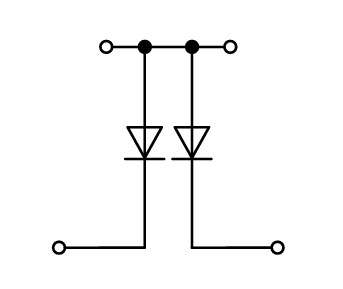

Component terminal block; double-deck; with 2 diodes 1N4007; Top anode; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; gray

Product identifiers

SKU: 2002-2214/1000-490

EAN: 4045454375638

GTIN: 4045454375638

MPN: 2002-2214/1000-490

Price range: £ 6.53 - £ 6.66 Excl. VAT

Terminal blocks

Specifications

Depth	51.7
Width	5.2
Colour	Grey
Height	69.7
EFNA0008	V0
Rated voltage	250
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	2
Rated current In	0.5
Type of component	Diode
Operating temperature	105 - 105
Closing plate required	yes
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.75 - 4
Connectable conductor cross section multi-wired	0.25 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 4
