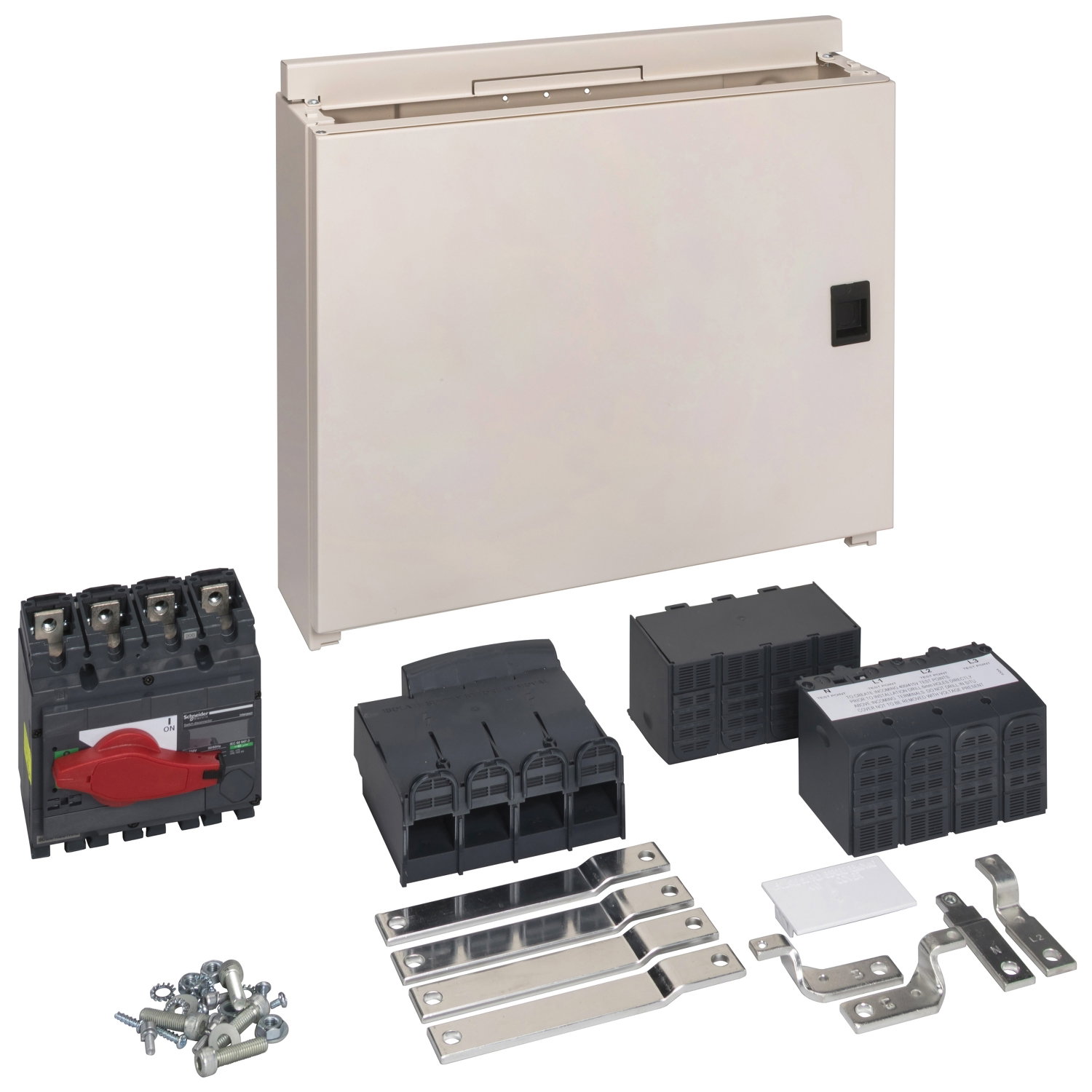

Acti9 Isobar B - switch disconnector - 250A - 3P+N

Name: Acti9 Isobar B - switch disconnector - 250A - 3P+N
Brand: Schneider Electric
SKU: SEA9PNI2503
Availability: InStock

Acti9 Isobar B - switch disconnector - 250A - 3P+N by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £604.38 excl. VAT. Voltimum+ members earn 91 points per unit.

This Acti9 Isobar B is a switch disconnector. Ease of installation This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to BS EN 60947-3 standard. This product complies with BS EN 60947-3 standard.

Product identifiers

SKU: SEA9PNI2503

EAN: 5018934008462

GTIN: 5018934008462

MPN: SEA9PNI2503

Loyalty points: 91

Price: £ 604.38 Excl. VAT

Specifications

Depth	-
Width	-
Height	-
Interlockable	yes
Number of poles	4
Number of switches	4
Device construction	Built-in device fixed built-in technique
Motor drive optional	no
Colour control element	Red
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	Door coupling rotary drive
Switching power at 400 V	-
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	250 A
With pre-assembled cabling	no
Degree of protection (NEMA)	-
Suitable for floor mounting	no
Version as reversing switch	no
Max. rated operation voltage Ue AC	455 V
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	yes
Suitable for intermediate mounting	yes
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP40
Rated operation power at AC-23, 400 V	-
Rated short-time withstand current lcw	25 kA
Version as emergency stop installation	no
Version as maintenance-/service switch	no
Rated permanent current at AC-21, 400 V	-
Rated permanent current at AC-23, 400 V	-
Conditioned rated short-circuit current Iq	25 kA
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
