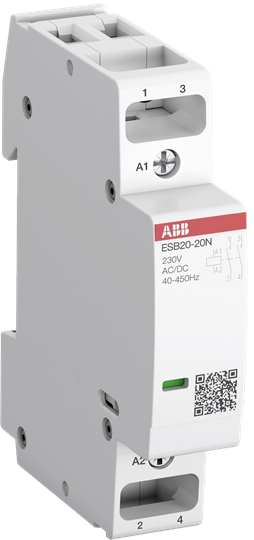

ESB20-20N-06 Installation Contactor (NO) 20 A - 2 NO - 0 NC - 230 V - Control Circuit DC

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

ESB20-20N-06 Installation Contactor (NO) 20 A - 2 NO - 0 NC - 230 V - Control Circuit DC

Name: ESB20-20N-06 Installation Contactor (NO) 20 A - 2 NO - 0 NC - 230 V - Control Circuit DC
Brand: ABB
SKU: 1SBE121111R0620
Availability: InStock

ESB20-20N-06 Installation Contactor (NO) 20 A - 2 NO - 0 NC - 230 V - Control Circuit DC by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade prices range from £47.84 to £61.53 excl. VAT. Voltimum+ members earn 26 points per unit.

The ESB20..N installation contactors are used to control single loads up to 20 A and can be operated by AC or DC. These contactors are made for use in household applications as well as in industrial environments. The following benefits are provided: Hum-free operation, low power consumption and integrated overvoltage protection. Various contact combinations and accessories are available.

Product identifiers

SKU: 1SBE121111R0620

EAN: 3471523007505

GTIN: 3471523007505

MPN: ESB20-20N-06

Loyalty points: 26

Price range: £ 47.84 - £ 61.53 Excl. VAT

Specifications

Hum-free	yes
Built-in depth	58
Slider for hand switch	no
Rated operating voltage
Rated operation current	20
With day/night function	no
Rated excitation voltage
Degree of protection (IP)	IP20
Max. load fluorescent lamp	-
Max. incandescent lamp load	-
Additional equipment possible	yes
Voltage type (operating voltage)	AC/DC
Voltage type (excitation voltage)	AC/DC
Width in number of modular spacings	1
Max. load fluorescent lamp (Duo circuit)	-
Number of contacts as normally open contact	2
Number of contacts as normally closed contact	0
Max. load fluorescent lamp (parallel compensated)	-
Utilization category according to EN IEC 60947-4-1	AC-1
