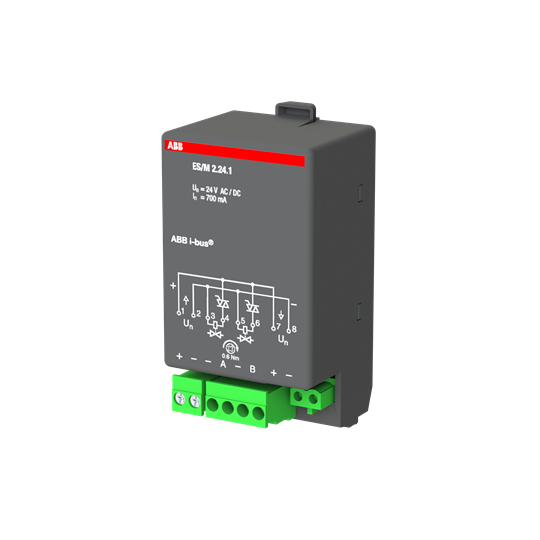

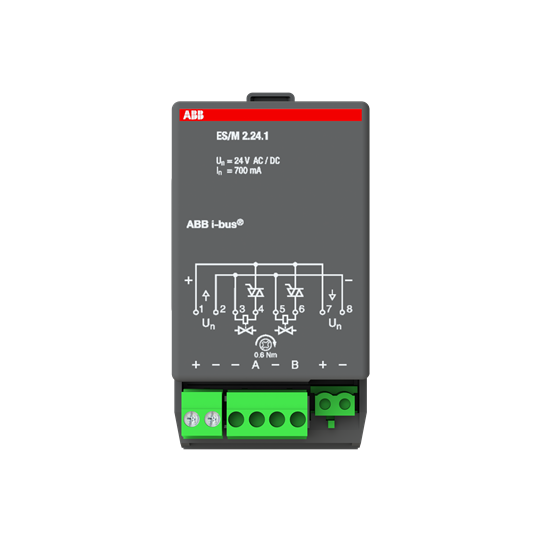

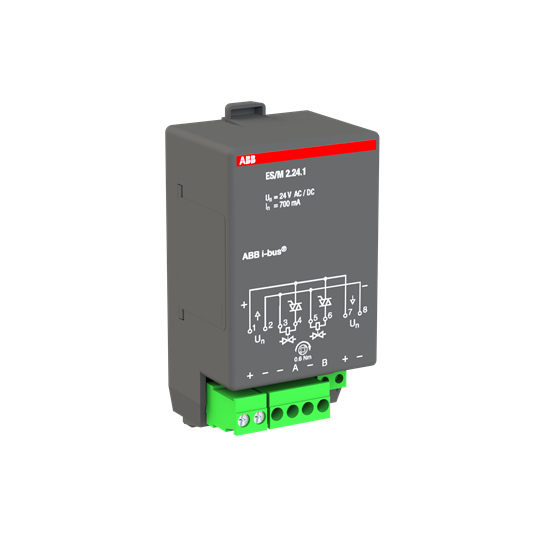

ES/M2.24.1 Electronic Switch Actuator Module, 2-fold, 24 V

Link copied
SKU
EAN
GTIN
MPN
Module for plugging into the Room Controller Basis Device. It has two overload-proof, noise-free and wear-resistant outputs for the control of electrothermal valve drives with a voltage of 12/24 V AC/DC, max. 700 mA continuous current.

Voltimum+ Loyalty Programme Loyalty points: 139

Price: £ 298.67 Excl. VAT

Specifications

Manual switch -
Bus system KNX yes
Bus system LON no
Mounting method Other
Number of outputs 2
Other bus systems None
Switching voltage
Bus system Powernet no
With bus connection yes
Number of digital inputs 0
Valve protection function -
Correcting variable switching -
Correcting variable consistent -
Width in number of modular spacings -
Min. depth of built-in installation box -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

ESM_2241_MB_XX_V1-0_9AKK108464A0843_Rev_A.eps

Open

Instructions for use

ESM_2241_MBA_7S_V1-1_GHQ6607016P0002.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

ESM_2241_CE-ROHS_xx_V2-2_2CDK514081D2701.pdf

Open
