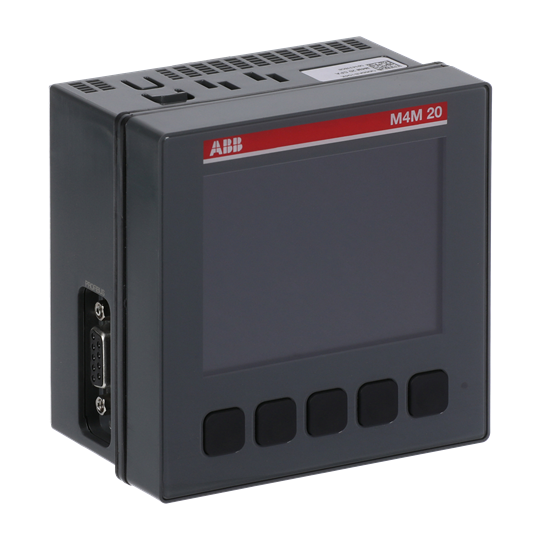

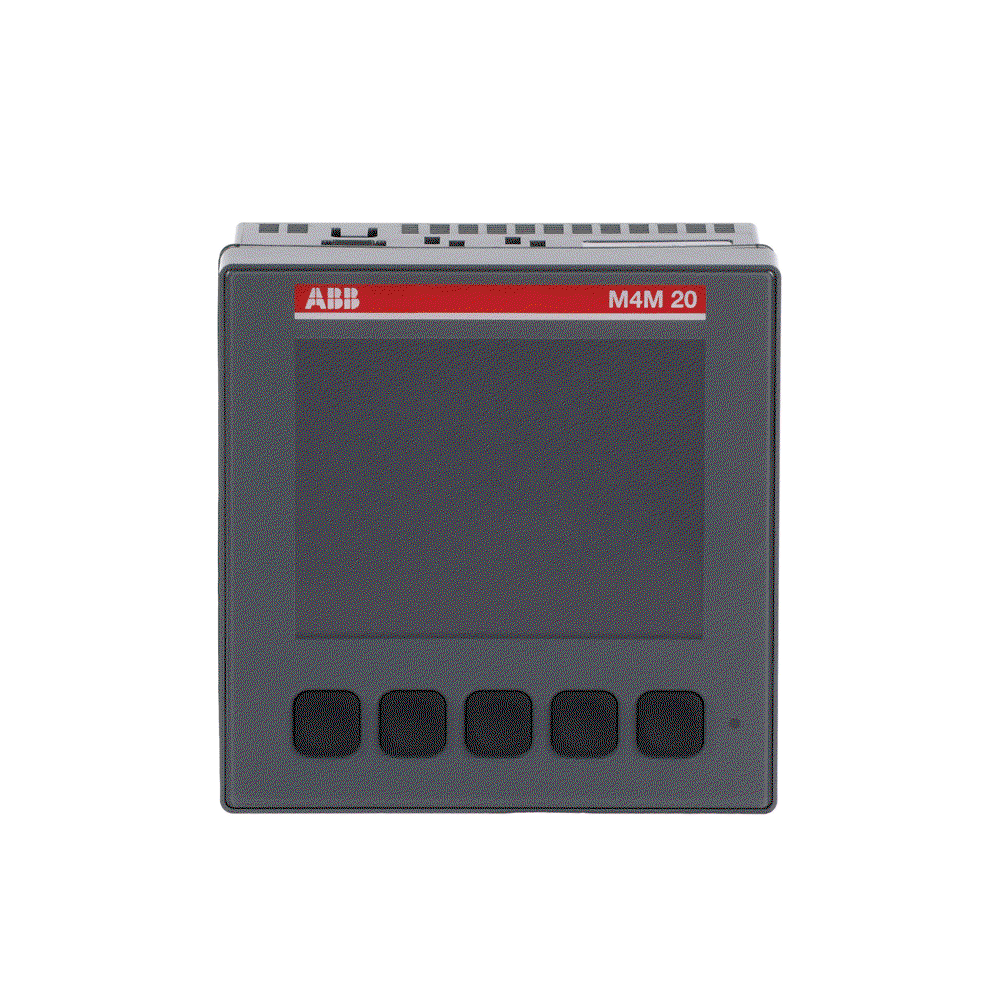

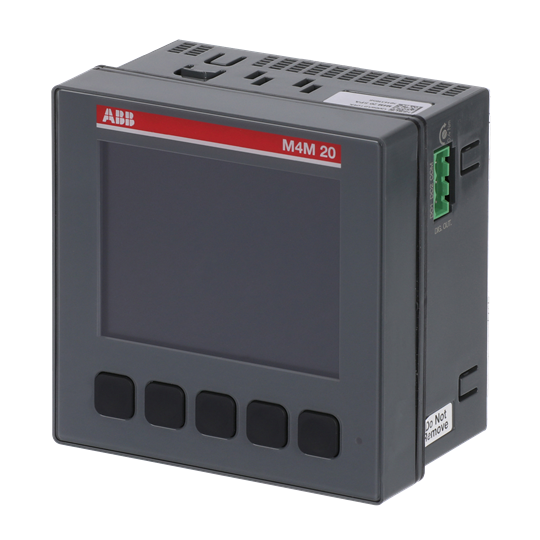

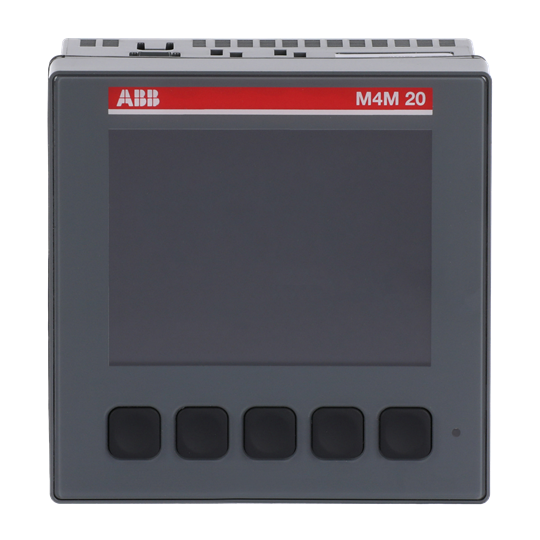

M4M 20 PROFIBUS Network analyzer

Name: M4M 20 PROFIBUS Network analyzer
Brand: ABB
SKU: 2CSG251131R4051
Price: 615.43 GBP
Availability: OutOfStock

M4M 20 PROFIBUS is a network analyzer with 2 digital outputs, aux supply 48-240 V AC/DC, Bluetooth and Profibus DP-V0

Product identifiers

SKU: 2CSG251131R4051

EAN: 8012542511311

GTIN: 8012542511311

MPN: M4M 20 PROFIBUS

Price: £ 615.43 Excl. VAT

Specifications

Depth	77
Model	Measurement transformer
Width	96
Height	96
Approval	Domestic
Frequency
Pole type	Three conductor/four conductor
Calibrated	yes
Pulse rate
Pulse type	S0
Energy type	Effective power and reactive power
Tariff type	Multi-tariff
Pulse output	Electrical
Suitable for	-
Type of meter	-
Accuracy class	-
Tariff control	Internal/external
With lock code	no
EEC40 signature	no
Mounting method	-
Power consumption	10
Type of interface	Other
Type of indication	Digital
Max. current (Imax)	6
Escapement mechanism	yes
Nominal current (In)	6
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Degree of protection (IP)	IP54
Degree of protection (NEMA)	-
Measurement type load profile	no
Number of positions total (counter)	8
Width in number of modular spacings	5.5
