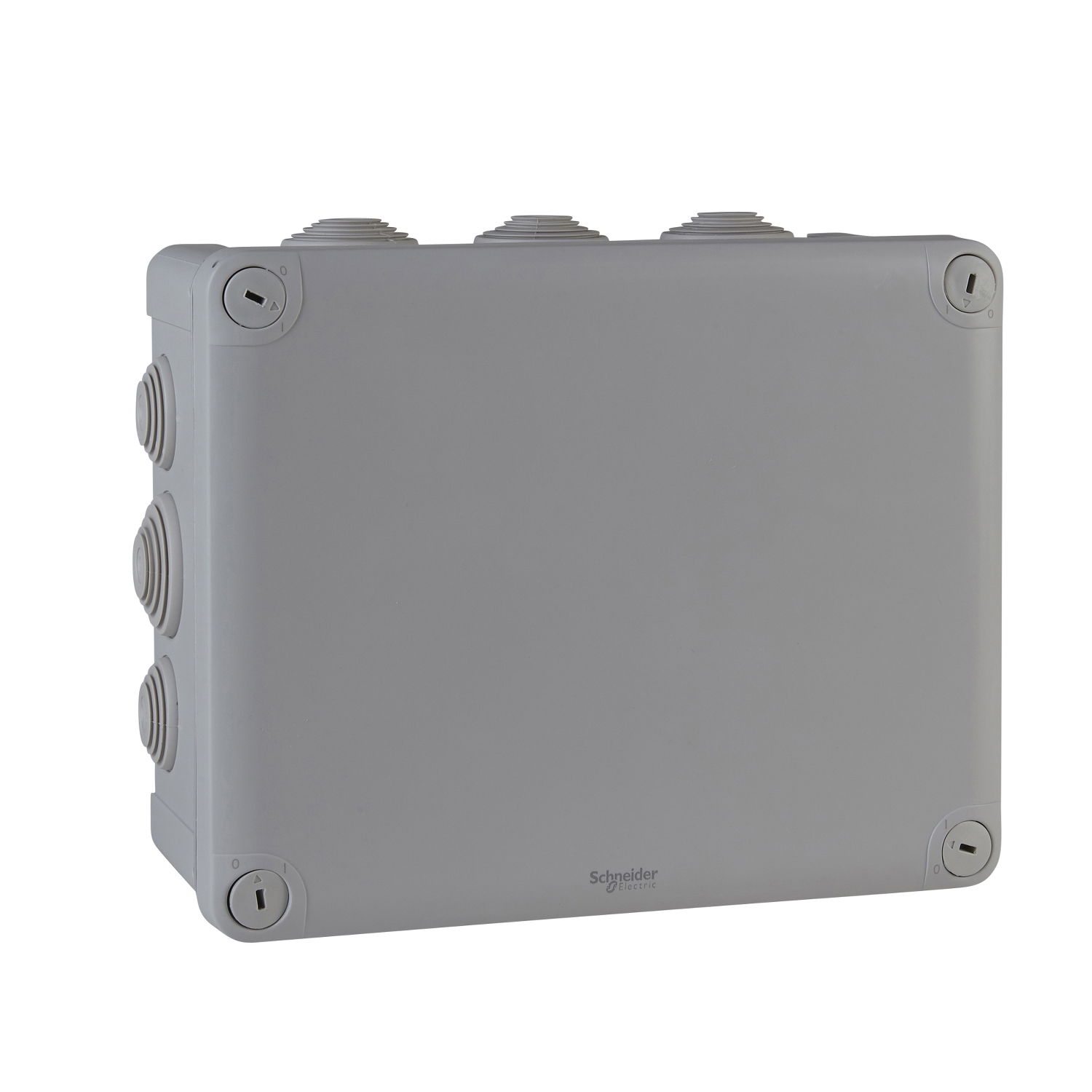

Mureva BOX - junction box - 4 grommets Ø25 + 8xØ32 - 225x175x100 mm

Link copied
SKU
EAN
GTIN
MPN
This rectangular surface mounted junction box ENN05013 comes with 4 x 25 mm, 8 x 32 mm grommets and quarter-turn screw-fixed cover Color grey, dimensions: width 245 mm, height 105 mm, depth 200 mm Including screw collar caps for extra protection of the screw heads Mechanical protection IK07, flame resistance 750 °C Material: cover PP (polypropylene), grommet SBS (styrene butadiene styrene) This surface mounted box is classified IP55 that provides safe installations in rough environments, indoors as well as outdoors, exposed to water and dust like Industry, farms, parking facilities or even a bathroom at home Sometimes you need electricity where it really should be impossible to install it, like in wet or dusty places, or where electricity has not been planned at all You needn’t worry! Since the Mureva boxes from Schneider Electric thoroughly satisfy any high safety requirement that the business might have, all surface mounted installations can be made irrespective of environment or safety needs The boxes are easy to install, they are stable and they are halogen-free. You can equip them according to your specific needs or buy them as complete junction boxes With Mureva electrical supplies at hand, no job will be too demanding!

Voltimum+ Loyalty Programme Loyalty points: 3

Price: £ 19.73 Excl. VAT

Specifications

Depth 108 mm
Model Junction box
Shape Rectangular
Width 204 mm
Colour Grey
Length 251 mm
Castable no
Diameter -
Sealable no
Cover model Blind cover
Weatherproof yes
With screening no
Mounting method Wall-/ceiling mounting
For Ex-zone dust None
Circuit integrity None
Transparent cover no
Inlet from the rear no
Mounting under water no
Explosion-tested version no
Degree of protection (IP) IP55
Rated insulation voltage Ui -
Type of housing feed-through Seal membrane

Documents

Declaration of Conformity (Sustainability)

ENN05013 REACh Regulation

Open

Instruction sheet

Mureva- Junction Box-Instruction Sheet (EN)

Open

Product data sheet

Open

Catalog

installation materials

Open

Declaration of Conformity (Sustainability)

ENN05013 EU RoHS Directive

Open

Declaration of conformity

EU Declaration of Conformity Schneider Electric

Open

Environmental Disclosure

Mureva BOX - junction box - 7 grommets Ø20 - 80x80x45 mm - Product Environmental Profile

Open
