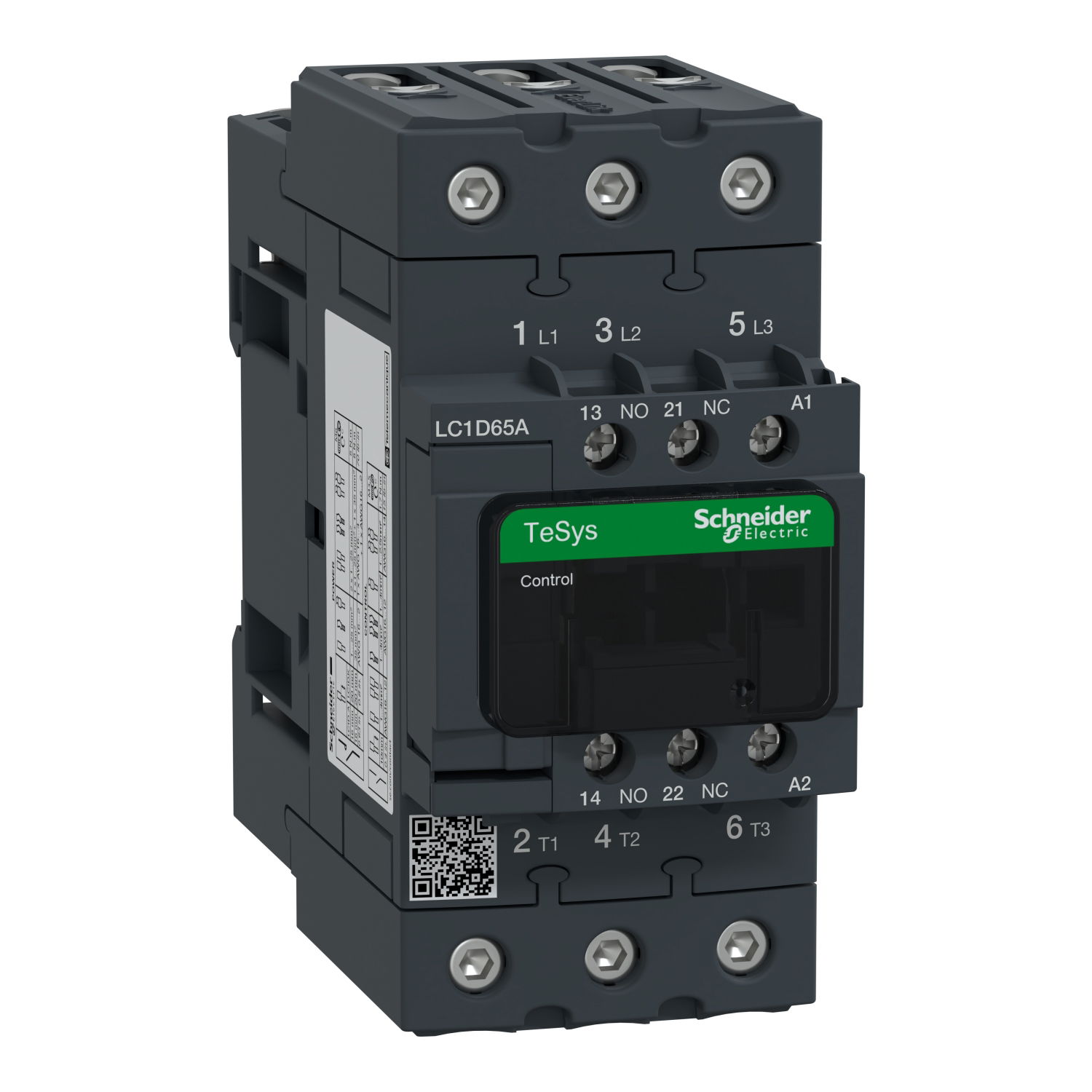

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 110 V AC 50/60 Hz coil

Popularity Top 30%

Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 110 V AC 50/60 Hz coil

Name: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 110 V AC 50/60 Hz coil
Brand: Schneider Electric
SKU: LC1D65AF7
Availability: InStock

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 110 V AC 50/60 Hz coil by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £158.73 to £258.53 excl. VAT. Voltimum+ members earn 34 points per unit.

TeSys D contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1D65AF7

EAN: 3389119408974

GTIN: 3389119408974

MPN: LC1D65AF7

Loyalty points: 34

Price range: £ 158.73 - £ 258.53 Excl. VAT

Specifications

Depth	120 mm
Width	55 mm
Height	122 mm
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	AC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	30 kW
Rated operation power at AC-4, 400 V	11 kW
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	80 A
Rated operation current Ie at AC-3, 400 V	65 A
Rated operation current Ie at AC-4, 400 V	25 A
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
