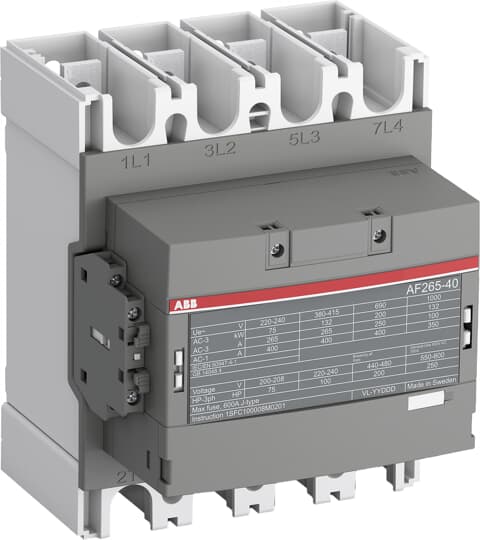

AF265-40-11-13 Contactor

Name: AF265-40-11-13 Contactor
Brand: ABB
SKU: 1SFL547102R1311
Availability: InStock

3x rewards on ABB Contactors at TLA

AF265-40-11-13 Contactor by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and TLA. It is currently in stock at 2 of them. Trade prices range from £999.74 to £1,538.06 excl. VAT. Voltimum+ members earn 806 points per unit.

The AF265-40-11-13 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 132 kW / 400 V AC (AC-3) / and switching power circuits up to 400 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.

Product identifiers

SKU: 1SFL547102R1311

EAN: 7320500505120

GTIN: 7320500505120

MPN: AF265-40-11-13

Loyalty points: 2418

Price range: £ 999.74 - £ 1,538.06 Excl. VAT

Specifications

Depth	180
Width	184.4
Height	225
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	74.5700
Voltage type for actuating	AC/DC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	-
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	400
Rated operation current Ie at AC-3, 400 V	265
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Rail connection
Number of normally open contacts as main contact	4
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
