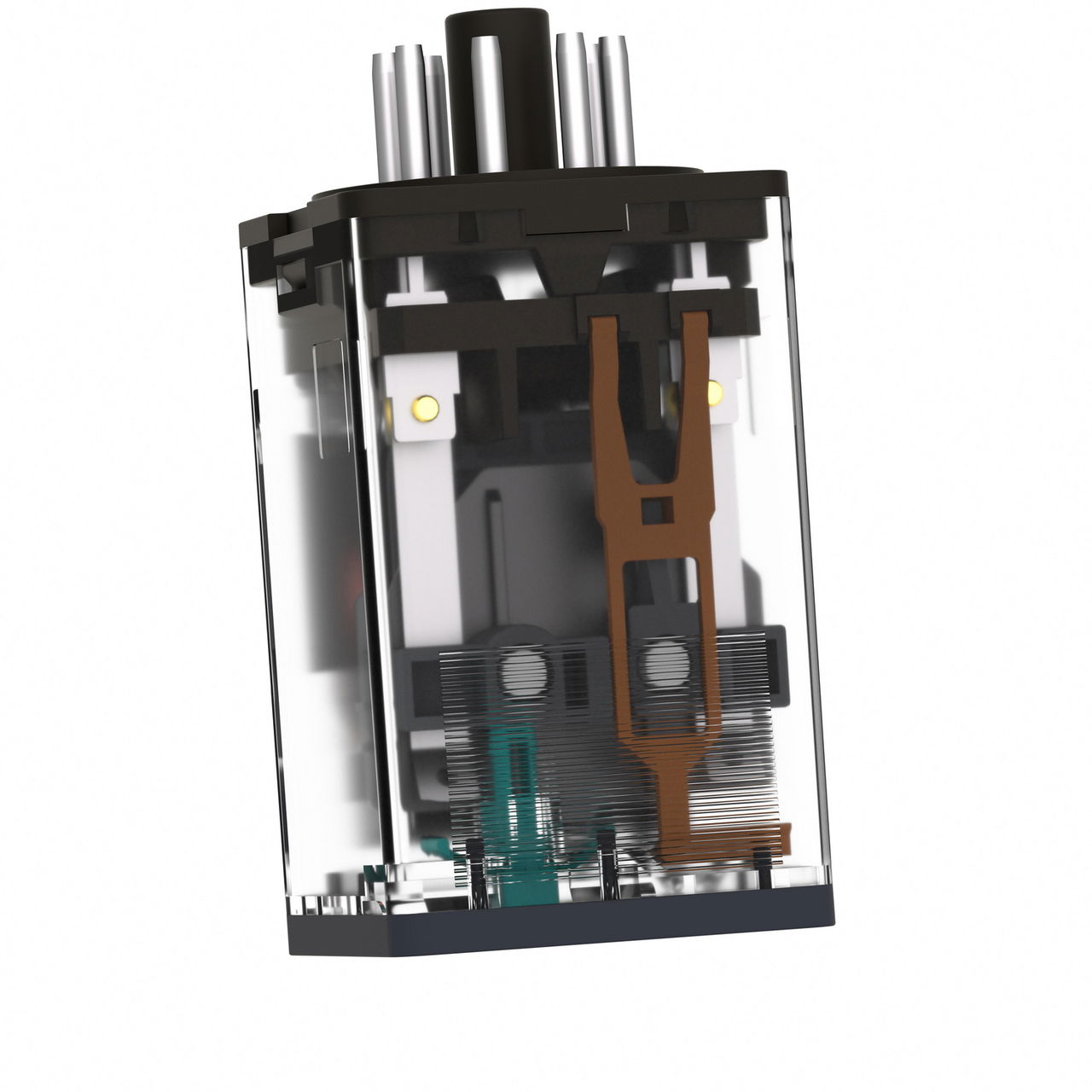

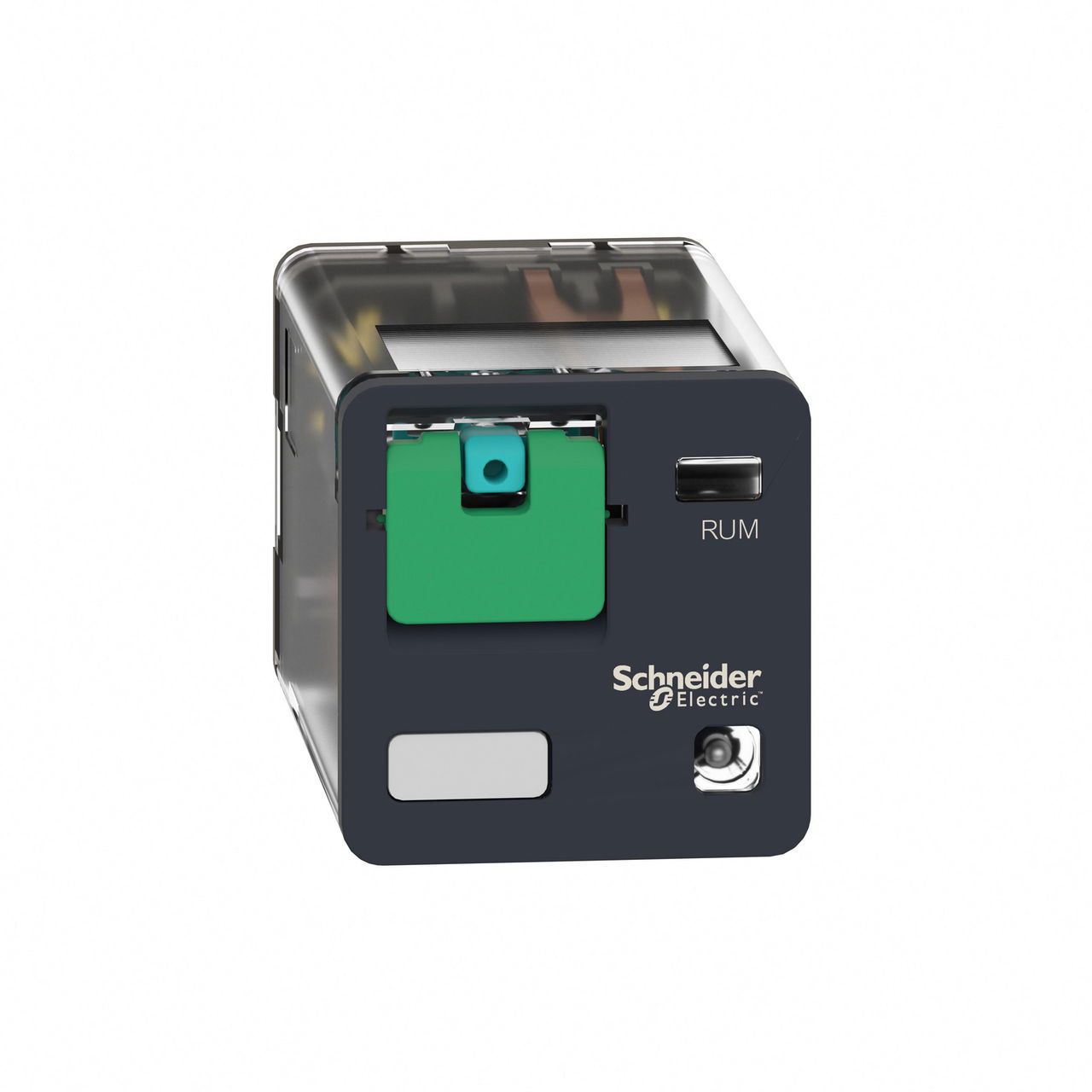

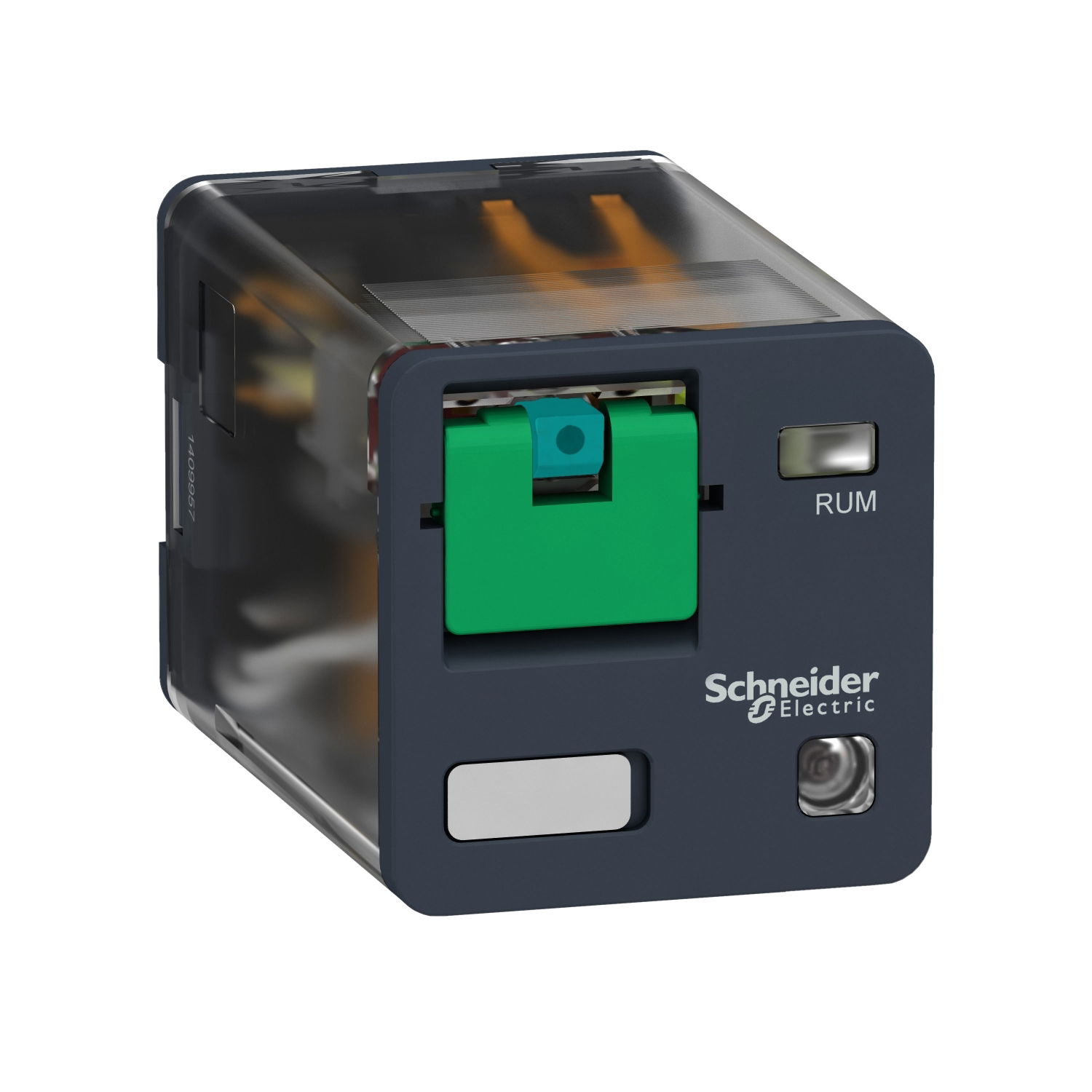

Universal plug-in relay - Harmony RUM - 3 C/O - 24 V DC - 10 A - with LED

Universal plug-in relay - Harmony RUM - 3 C/O - 24 V DC - 10 A - with LED by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £8.81 to £14.00 excl. VAT. Voltimum+ members earn 2 points per unit.

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RUMC32BD
EAN: 3606480626937
GTIN: 3606480626937
MPN: RUMC32BD

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 8.81 - £ 14.00 Excl. VAT

Categories

Electronic Components Relays

ETIM group

Relays

Specifications

Depth 56 mm
Width 35 mm
Height 35.4 mm
Nominal current 10 A
Material contact Other
Drive, polarization Polarized
With LED indication yes
Complete with socket no
Max. starting current -
With detachable clamps no
Drive, switching attitude Mono stable
Operating voltage AC 50 Hz
Voltage type for actuating DC
Type of electric connection Plug-in connection
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Number of contacts as change-over contact 3
Number of contacts as normally closed contact 0
