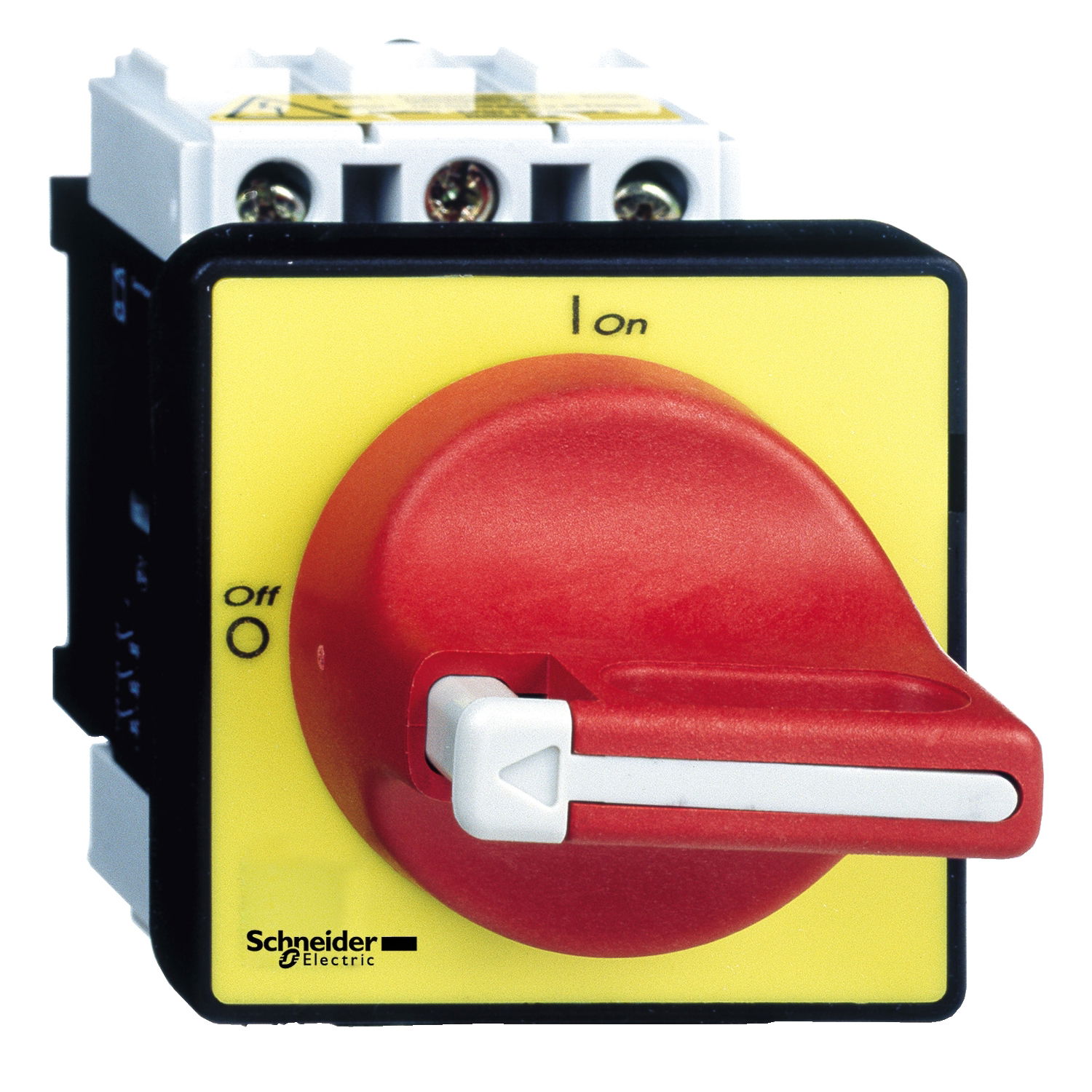

TeSys Vario - emergency stop switch disconnector - 25 A - on door
TeSys Vario switch disconnector for door mounting, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23. Complete unit composed of a switch body V0, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine),
Product identifiers
SKU: VCD0
EAN: 3389110724875
GTIN: 3389110724875
MPN: VCD0
Loyalty points:
19
Price range: £ 30.80 - £ 48.60 Excl. VAT
ETIM Group
Specifications
| Depth | 121 mm |
| Width | 60 mm |
| Height | 74 mm |
| Interlockable | yes |
| Number of poles | 3 |
| Number of switches | 1 |
| Device construction | Built-in device fixed built-in technique |
| Motor drive optional | no |
