OTP16BA4M Enclosed Switch Disconnector
OTP16BA4M Enclosed Switch Disconnector
OTP16BA4M Enclosed Switch Disconnector by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and TLA. It is currently in stock at 1 of them. Trade price £69.14 excl. VAT. Voltimum+ members earn 31 points per unit.

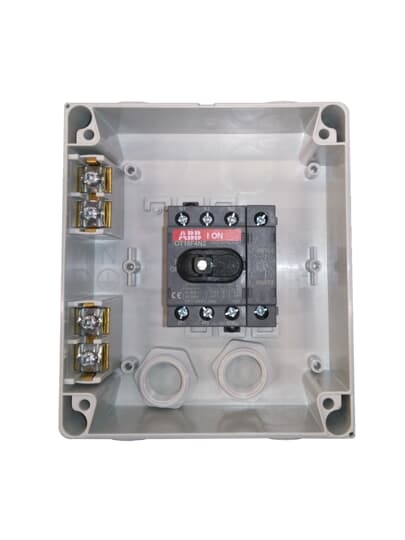

Encl. Switch Disconnector, 4-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Product identifiers
SKU: OTP16BA4M
EAN: 6417019143187
GTIN: 6417019143187
MPN: OTP16BA4M
Loyalty points:
31
Price: £ 69.14 Excl. VAT
Specifications
| Depth | 60 |
| Width | 130 |
| Height | 150 |
| Interlockable | yes |
| Number of poles | 4 |
| Number of switches | 1 |
| Device construction | Complete device in housing |
| Motor drive optional | no |
