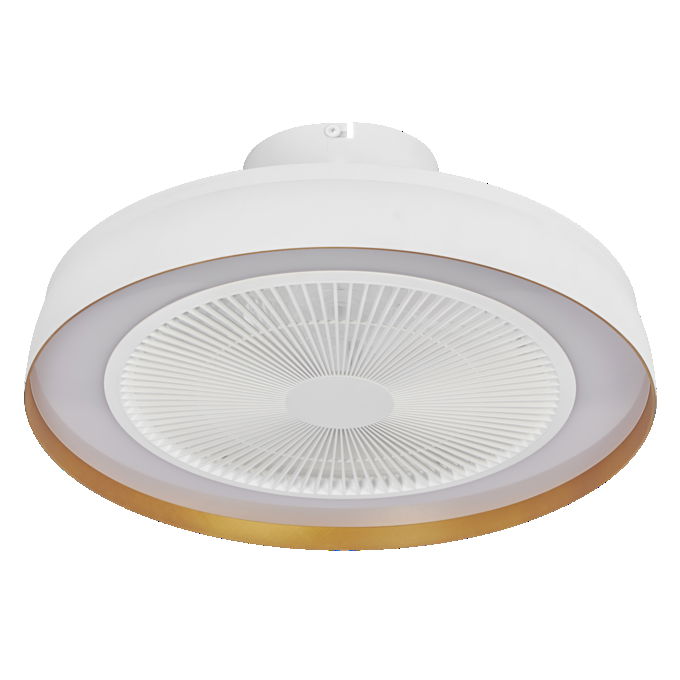

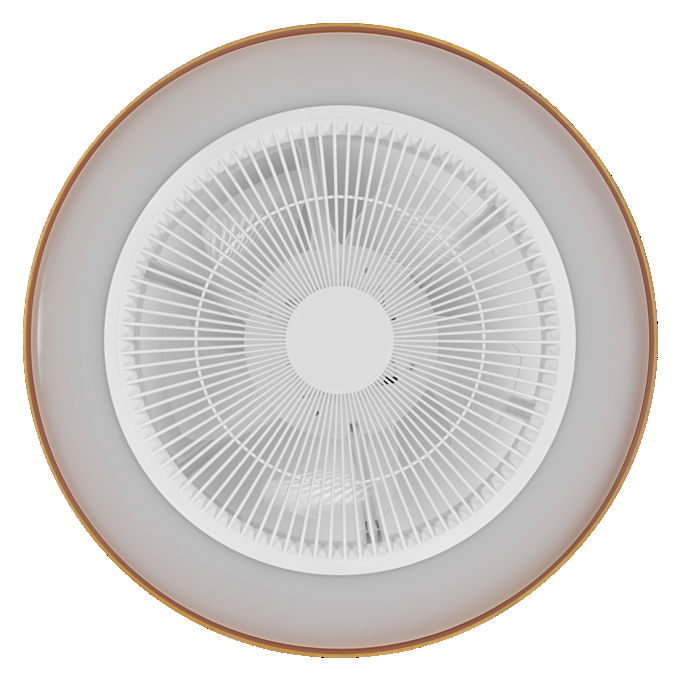

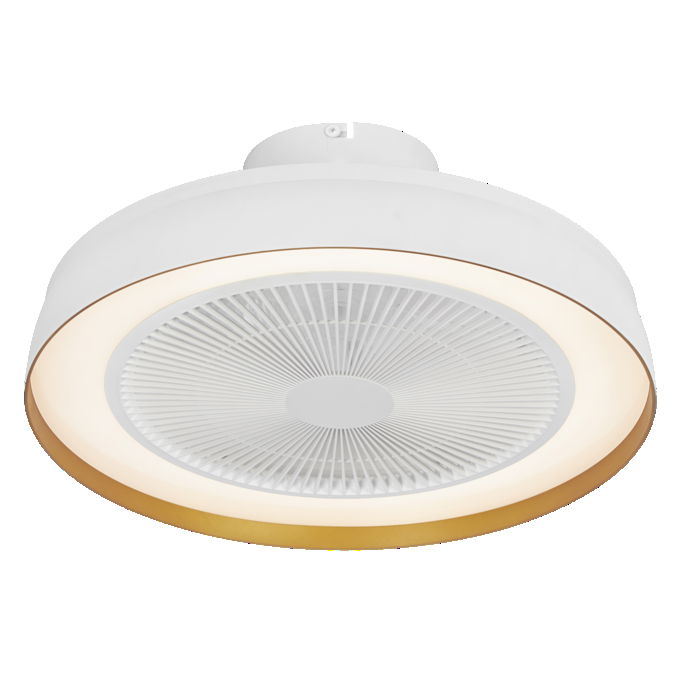

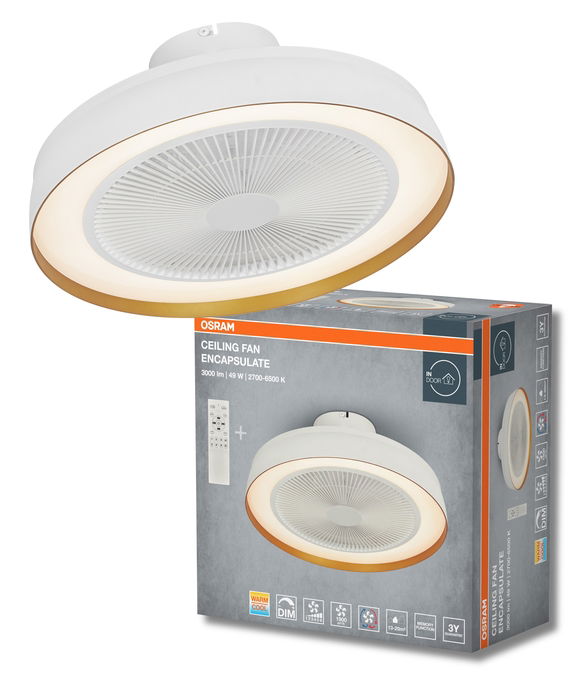

Ceiling Fan Encapsulate 480 49W White

Ceiling Fan Encapsulate 480 49W White

Product benefits
  • Airflow suitable for 13-20 m²
  • Set color temperature according to daytime and usage (dining, relaxing, social events...)
  • Set light output from 0-100% for personal comfort
  • Pleasant use during sleeping phase (low noise on low level speed)
  • Aesthetic appearance of a ceiling luminaire
  • Summer / winter mode
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Airflow: max 1900 m³/h
  • Speed levels: 1 - 6 steps
  • Timer: 2 h / 4 h

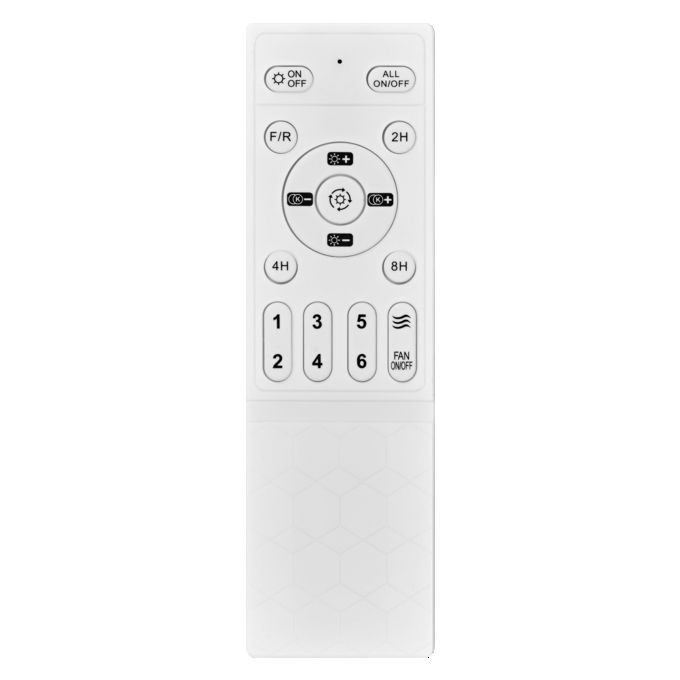

  • Control unit: remote control
  • Motor type: DC
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Lumen source: 3000 lm
  • Dimmable
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
  • Safety rope
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.

Product identifiers

SKU: 4099854497971
EAN: 4099854497971
GTIN: 4099854497971
MPN: 4099854497971

Price: £ 0.00 Excl. VAT

Specifications

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000

Electrical data

Nominal wattage 49.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 230.000 mA
Max. number of luminaires per miniature circuit breaker B16 36
Max. number of luminaires per miniature circuit breaker C10 22
Power factor λ ≥ 0.90
Protection class II
