Soft starter for asynchronous motor - ATSU01 - 22 A - 200..480 V - 4..11 KW

Name: Soft starter for asynchronous motor - ATSU01 - 22 A - 200..480 V - 4..11 KW
Brand: Schneider Electric
SKU: ATSU01N222LT
Availability: InStock

Soft starter for asynchronous motor - ATSU01 - 22 A - 200..480 V - 4..11 KW by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £290.33 to £293.23 excl. VAT. Voltimum+ members earn 1 point per unit.

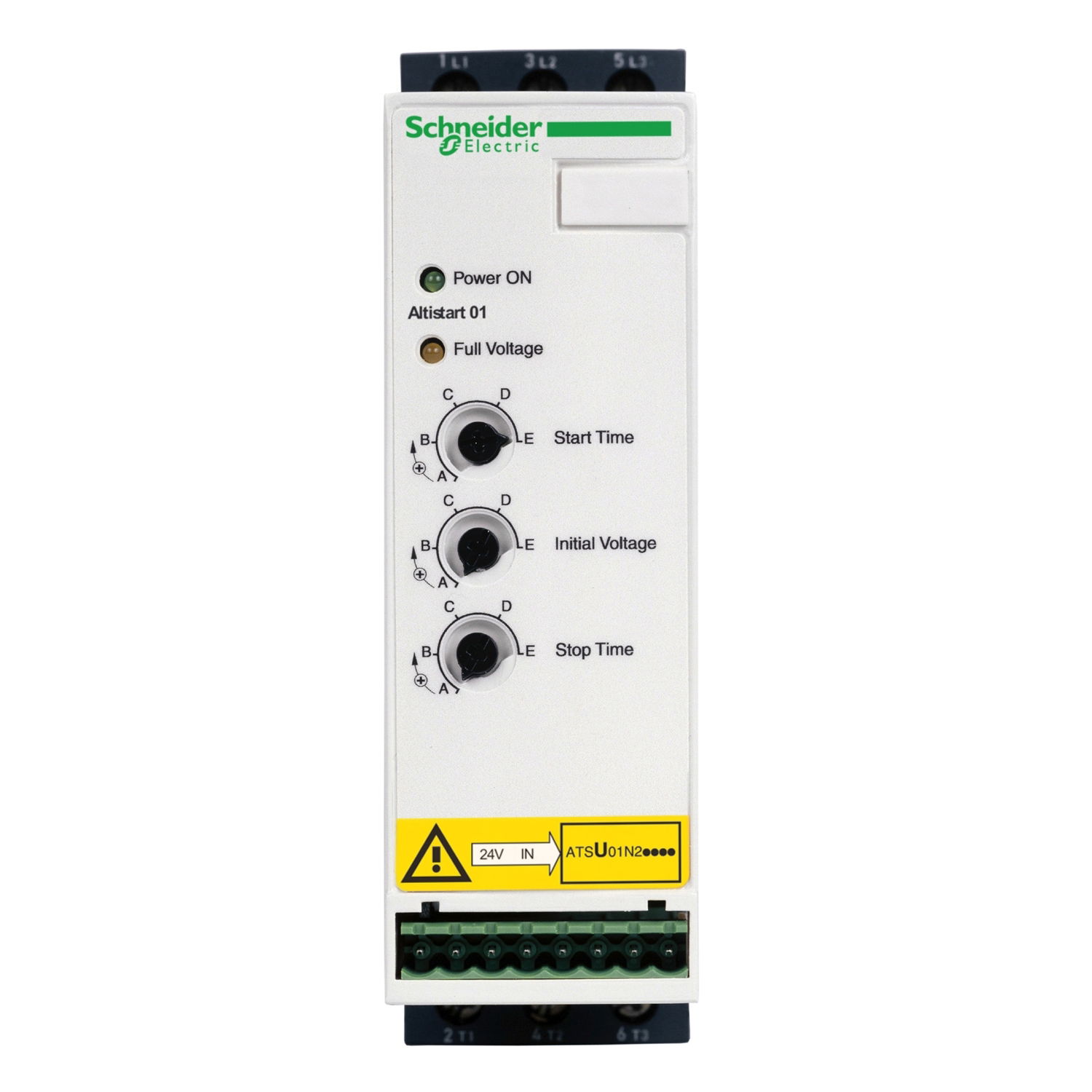

The Altistart U01 is a soft start/soft stop unit for 3-phase asynchronous motors. It is designed primarily for combinations with TeSys U starter-controllers. It can be used for a motor rated power up to 11kW or 15hp for 3-phase (200V to 480V AC) and up to 22A rating. It is 45mm wide, this makes it one of the smallest soft starters on the market. It can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Its protection index is IP20. It weighs 0.49kg and its dimensions are, 45mm wide, 314mm high, 170mm deep. The Altistart U01 is designed for the following simple applications like conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It complies with standards IEC/EN 60947-4-2, and carries UL, CSA, C-Tick, and CCC certifications, and CE marking. It can be easily combined with a TeSys U controller by means of the power connector VW3G4104. It is easy to install on a DIN rail. Altistart 01 combines simplicity with easy cabling, fast configuration and efficiency. Reduced machine wear and minimized maintenance time will optimize operations. Together with TeSys Model U, it provides a unique motor starter solution.

Product identifiers

SKU: ATSU01N222LT

EAN: 3389110667110

GTIN: 3389110667110

MPN: ATSU01N222LT

Loyalty points: 1

Price range: £ 290.33 - £ 293.23 Excl. VAT

Specifications

Function	Single direction
With display	yes
Release class	Other
Torque control	no
Internal bypass	yes
Degree of protection (IP)	IP20
Rated operating voltage Ue
Voltage type for actuating	AC/DC
Degree of protection (NEMA)	-
Rated control supply voltage DC
Integrated motor overload protection	no
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at 40 °C Tu	22 A
Rated surrounding temperature without derating	40 °C
Rated power three-phase motor, inline, at 230 V	4 kW
Rated power three-phase motor, inline, at 400 V	7.5 kW
Rated power three-phase motor, inside delta, at 230 V	-
Rated power three-phase motor, inside delta, at 400 V	-
