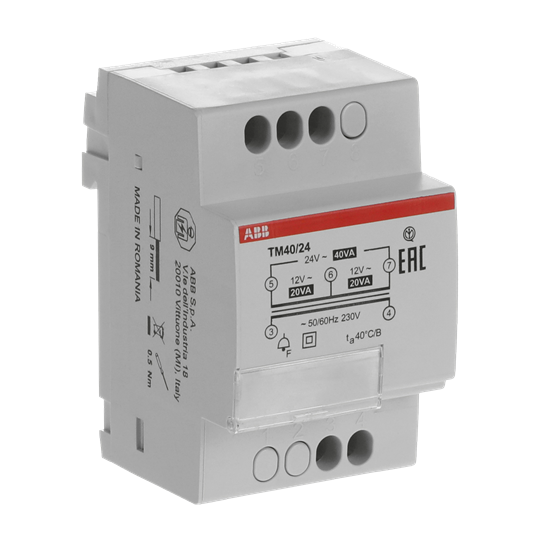

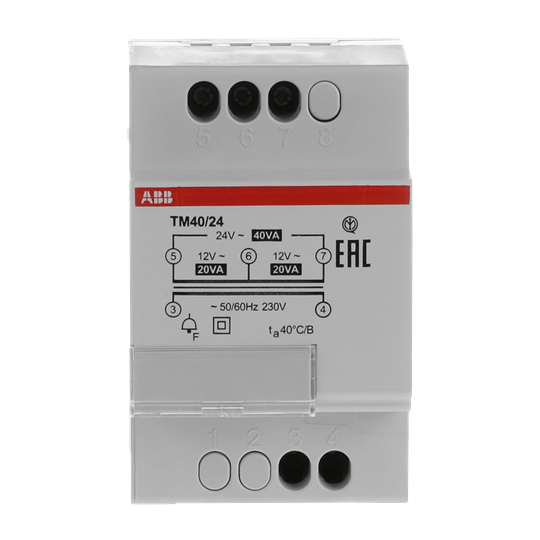

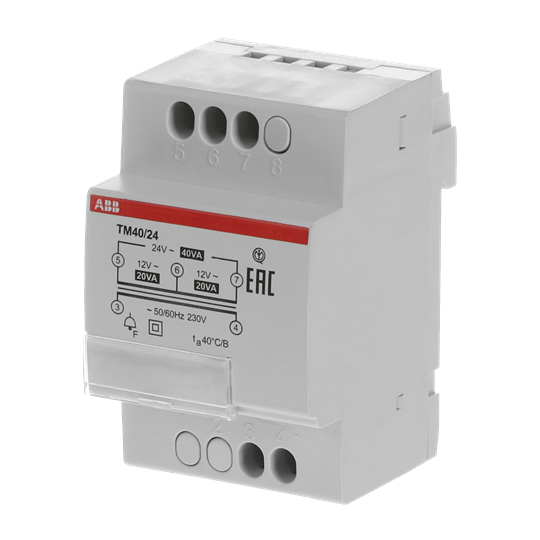

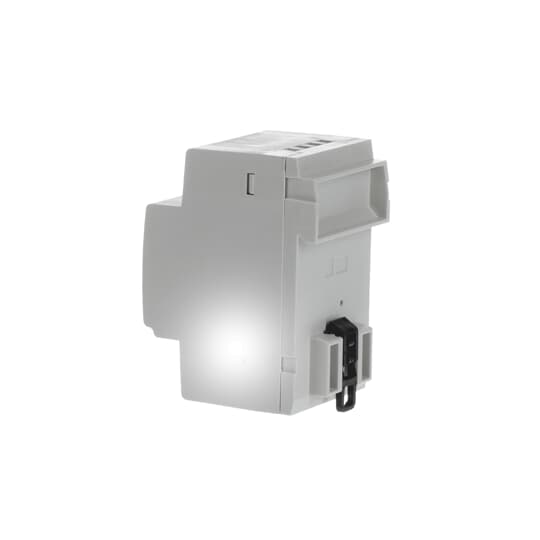

TM40/24 Fail safe bell transformer

Link copied
SKU
EAN
GTIN
MPN

TM40/24 Fail safe bell transformer by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at all of them. Trade prices range from £52.78 to £57.61 excl. VAT. Voltimum+ members earn 28 points per unit.

These transformers, with safety extremely-low voltage secondary (SELV), are suitable for driving loads that call for a discontinuous supply.

Voltimum+ Loyalty Programme Loyalty points: 28

Price range: £ 52.78 - £ 57.61 Excl. VAT

Specifications

Width 52.5
Height 85
Length 65
Max. power loss -
Modular version yes
Primary voltage 230
Surface mounting no
Max. output power 40
Max. output current 3.33
Secondary voltage 2 -
Type of transformer -
Secondary amperage 2 -
Temperature protection no
Flush-mounted installation no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_G_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Product data sheet

Open

Declaration RoHS

2CSC446001D2704_EU_DoC_TM.pdf

Open
