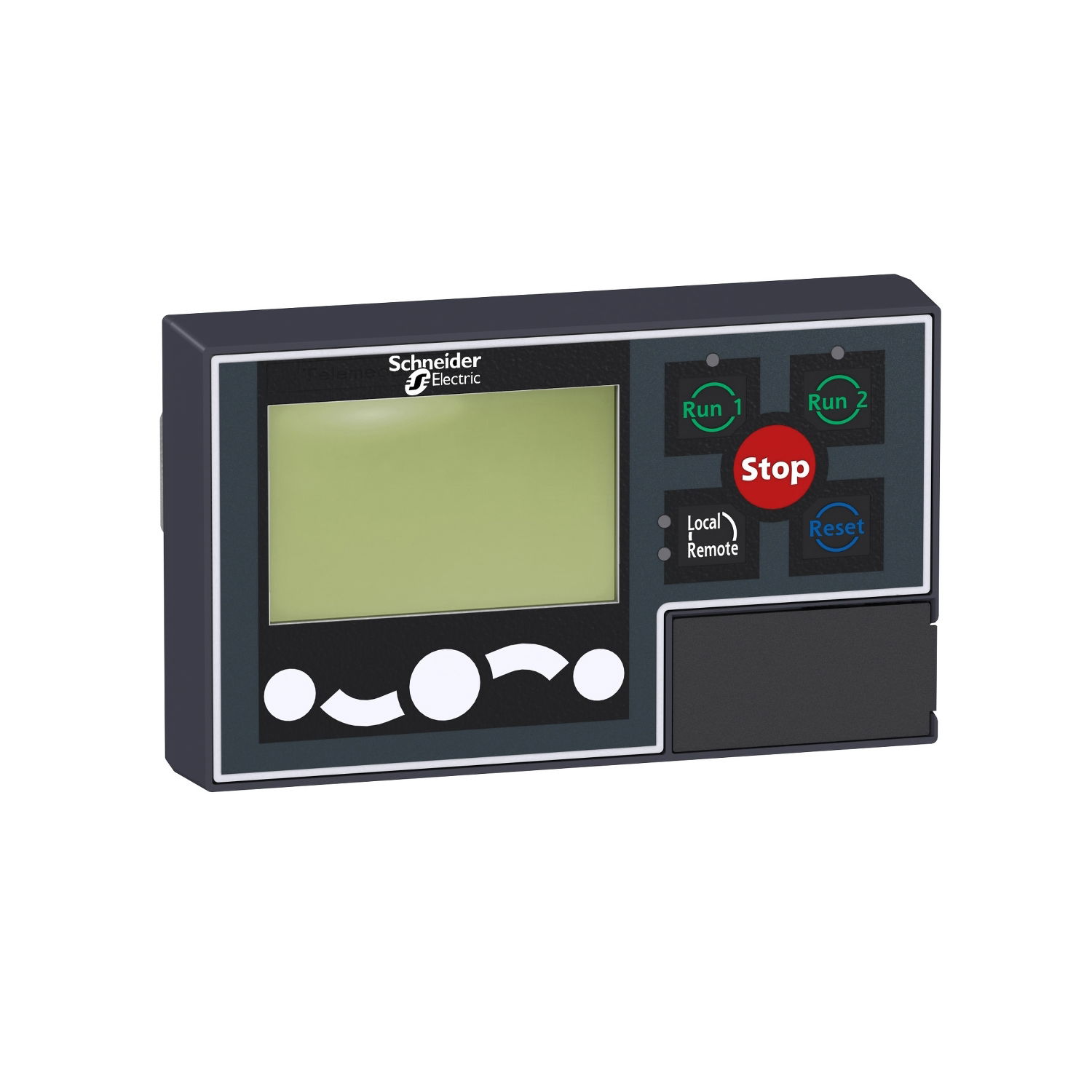

TeSys T Operator control unit for LTM R controller

Link copied
SKU
EAN
GTIN
MPN

TeSys T Operator control unit for LTM R controller by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and Rexel Group. It is currently in stock at 1 of them. Trade prices range from £668.17 to £674.85 excl. VAT. Voltimum+ members earn 51 points per unit.

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management. The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions. TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection. TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater. This is a TeSys operactor control unit that is used in conjuction with LTMR controller to configure the parameters, display the information about the controller, display detected faults and control the motor locally. This operator unit has LCD screen to display the information along with 5 control keys and 4 LED indicators and has 2 ports for RJ45 connectors that are used to connect to the PC and controller. The dimensions of this device are 70 mm (H) X 117 mm (W) X 50 mm (D) and it weighs 0.4 kg.

Voltimum+ Loyalty Programme Loyalty points: 51

Price range: £ 668.17 - £ 674.85 Excl. VAT

Specifications

Number of buttons 10
Number of displays 1
Degree of protection (IP) IP54
Degree of protection (NEMA) 12
Suitable for front mounting yes
Number of status indications 4

Documents

Declaration of Conformity (Sustainability)

LTMCU REACh Regulation

Open

User guide

TeSys T LTMCU / LTMCUF Control Operator Unit

Open

Instruction sheet

LTM CU - LTM R control operator unit - Instruction sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LTMCU EU RoHS Directive

Open

Declaration of conformity

UKCA_DOC_SC16120801A-UK_TeSys T and TeSys Tera offer

Open

Environmental Disclosure

TESYS Tera Operator Control Unit (HMI)

Open
