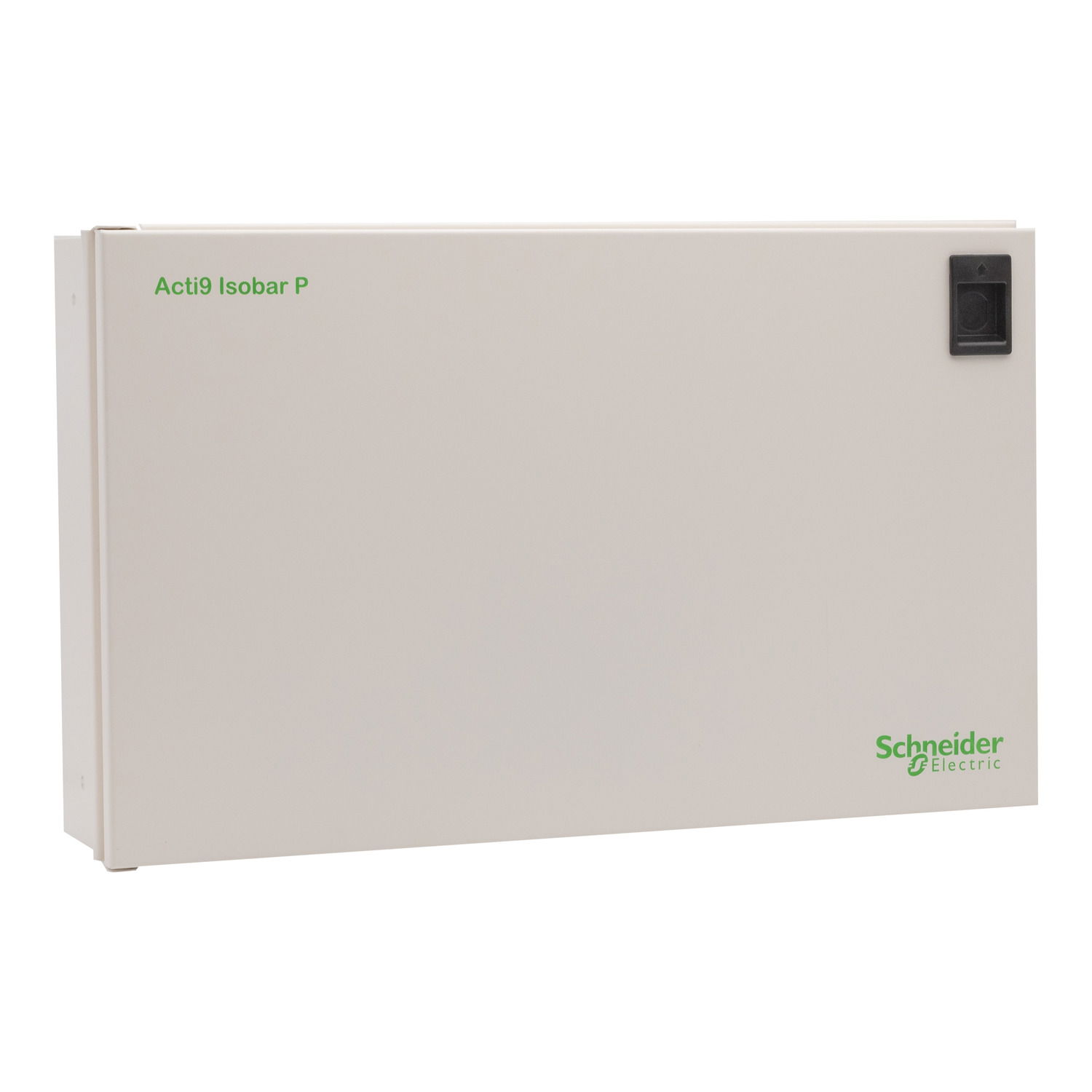

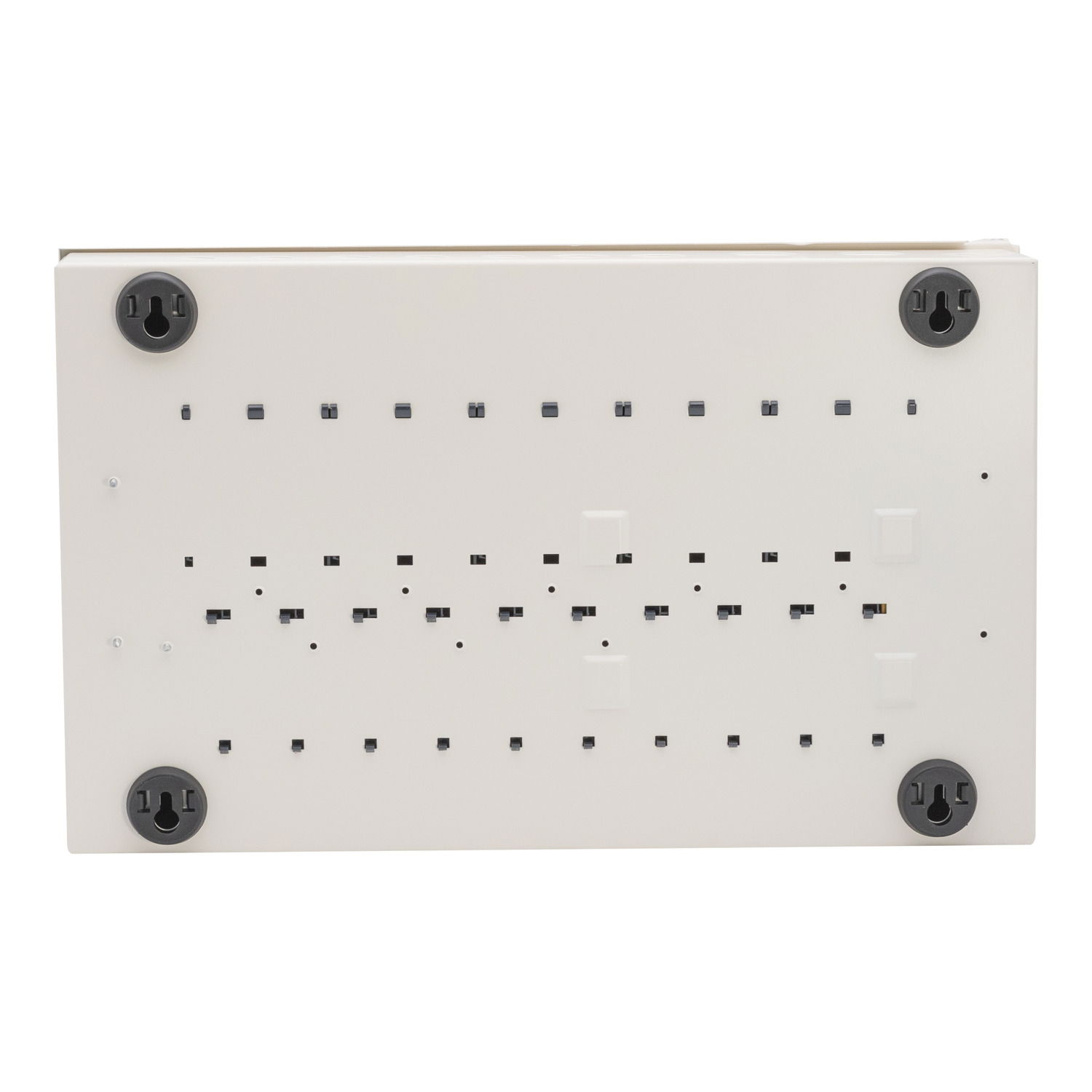

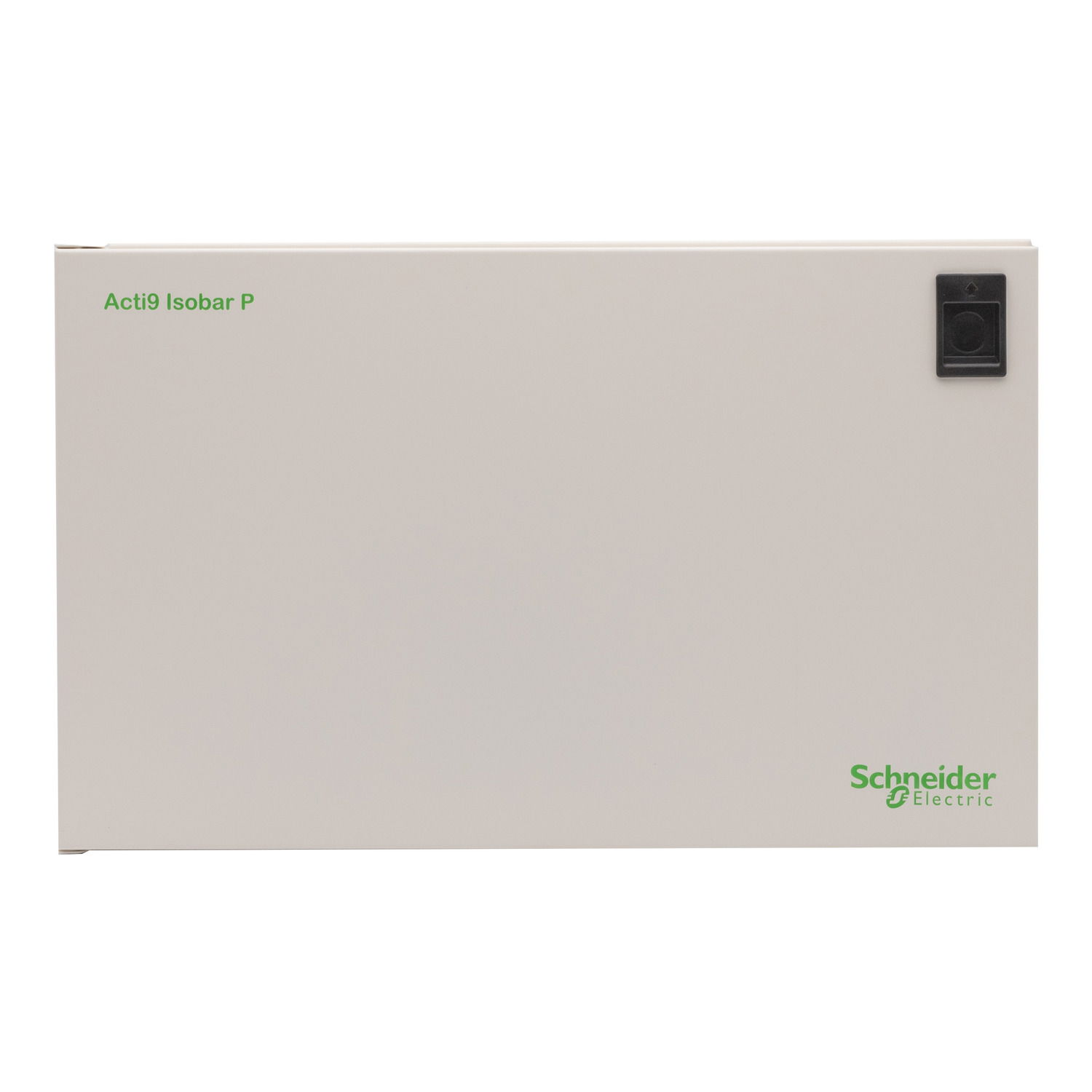

Acti9 Isobar P A - distribution board - 18 way SP+N

Acti9 Isobar P A - distribution board - 18 way SP+N

The Acti9 Isobar P A Type Distribution Boards are suitable for standard, commercial and Industrial applications. For applications of final circuit single phase distribution, typical loads serviced; Lighting, Power, IT, HVAC, Critical Power. Generally supplied by a panel board or three phase distribution board, systems are designed to ensure supply continuity selectivity and enhanced performance.

Product identifiers

SKU: SEA9APN18
EAN: 5018934007595
GTIN: 5018934007595
MPN: SEA9APN18

Voltimum+ Loyalty Programme Loyalty points: 28

Price range: £ 165.99 - £ 167.14 Excl. VAT

Specifications

Depth 117 mm
Width 489 mm
Colour Other
Height 300 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 18
