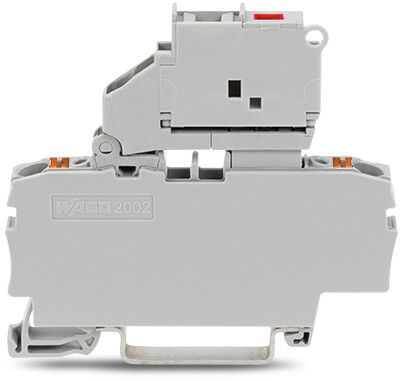

2-conductor fuse terminal block with pivoting fuse holder with end plate gray
Wago

2-conductor fuse terminal block with pivoting fuse holder with end plate gray

2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with push-button; with blown fuse indication by LED; 230 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product identifiers

SKU: 2202-1611/1000-836
EAN: 4055143907934
GTIN: 4055143907934
MPN: 2202-1611/1000-836

V+ Loyalty points:

21

Price range: £ 10.59 - £ 10.80 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 57.2
Width 6.2
Colour Grey
Height 66.1
EFNA0008 V0
Rated voltage 250
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Type of fuse holder Swivelling
Operating temperature 105 - 105
Material insulation body Thermoplastic
Type of electrical connection 2 Spring clamp connection
Supply voltage for defect-indication 230 - 230
Connectable conductor cross section multi-wired 0.25 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve 0.75 - 2.5
