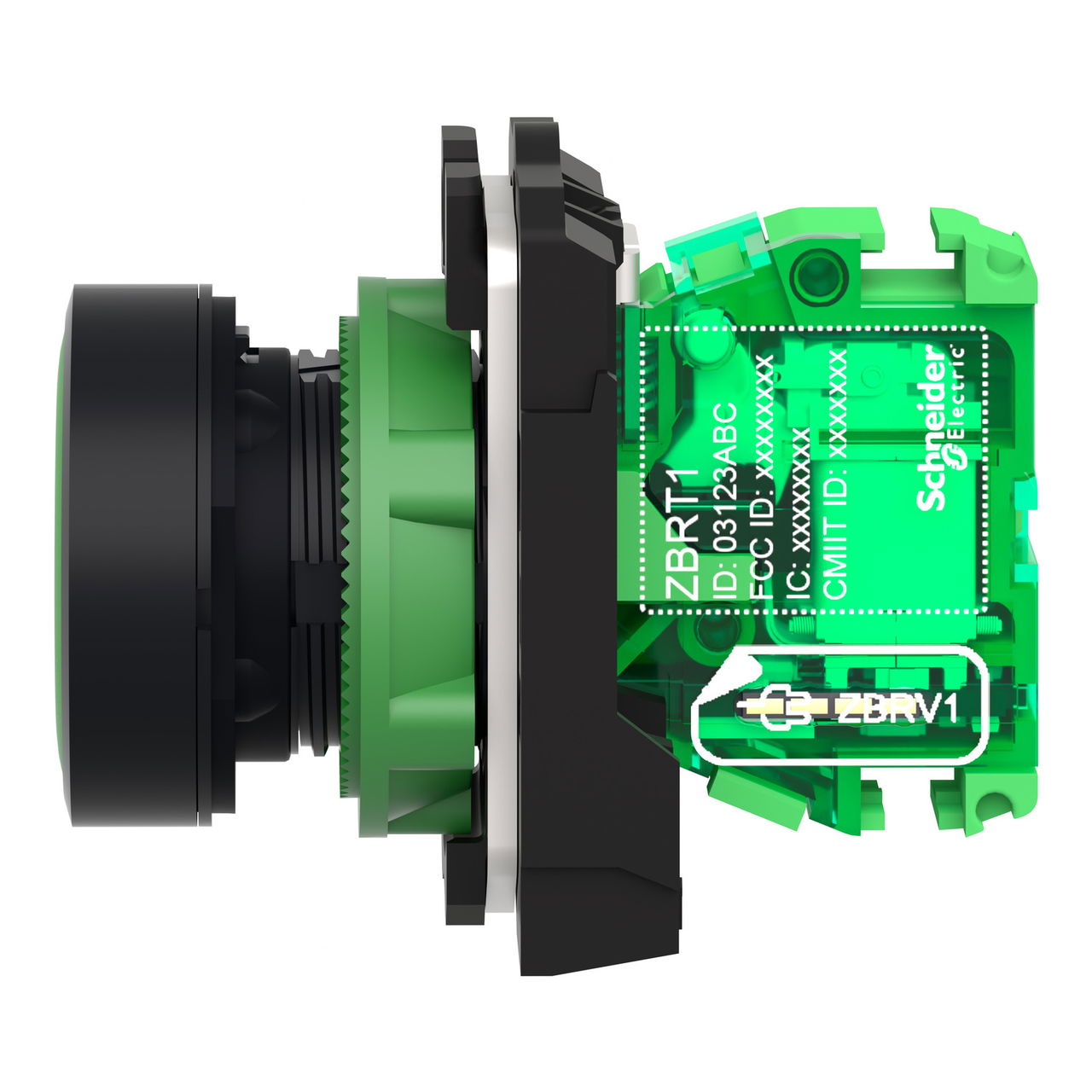

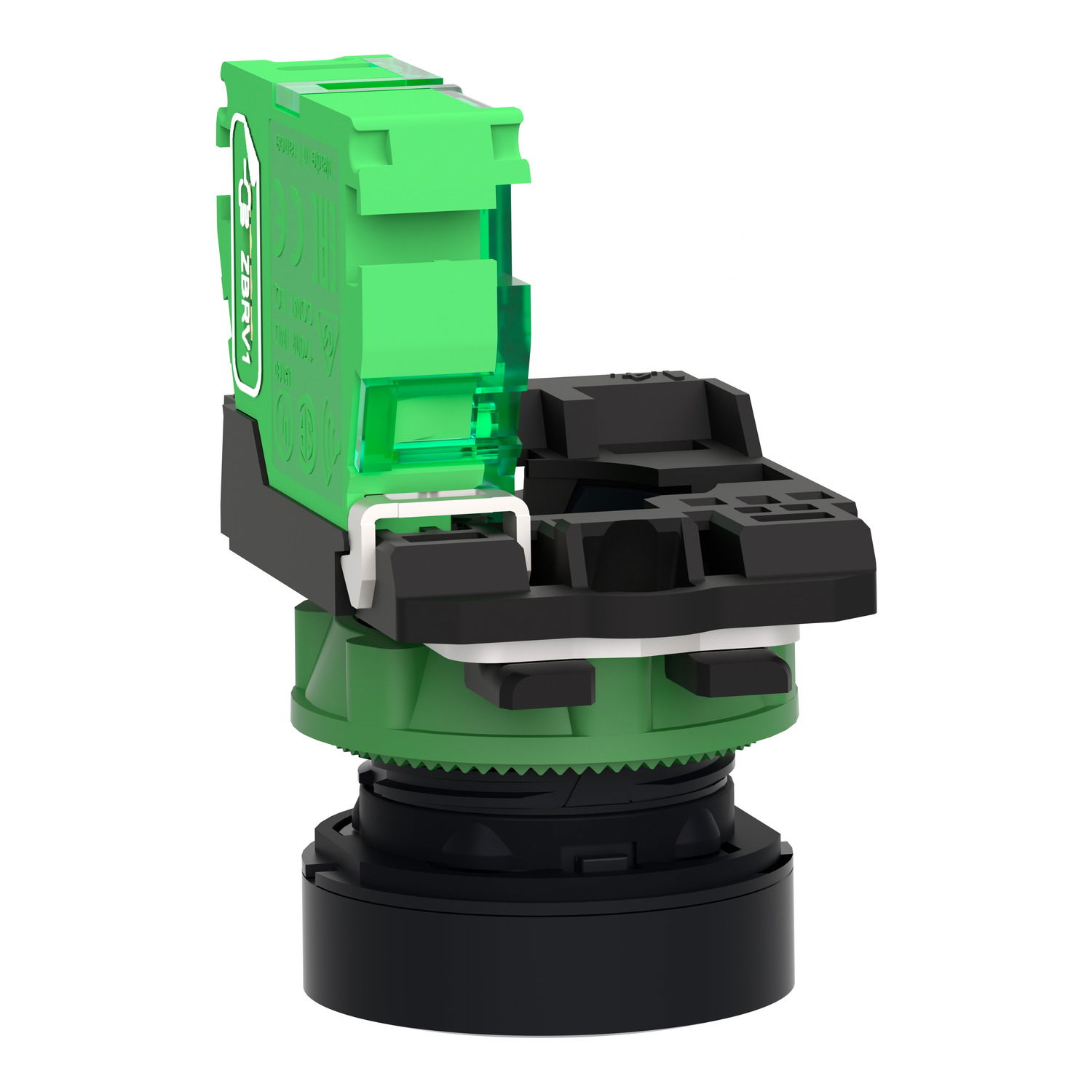

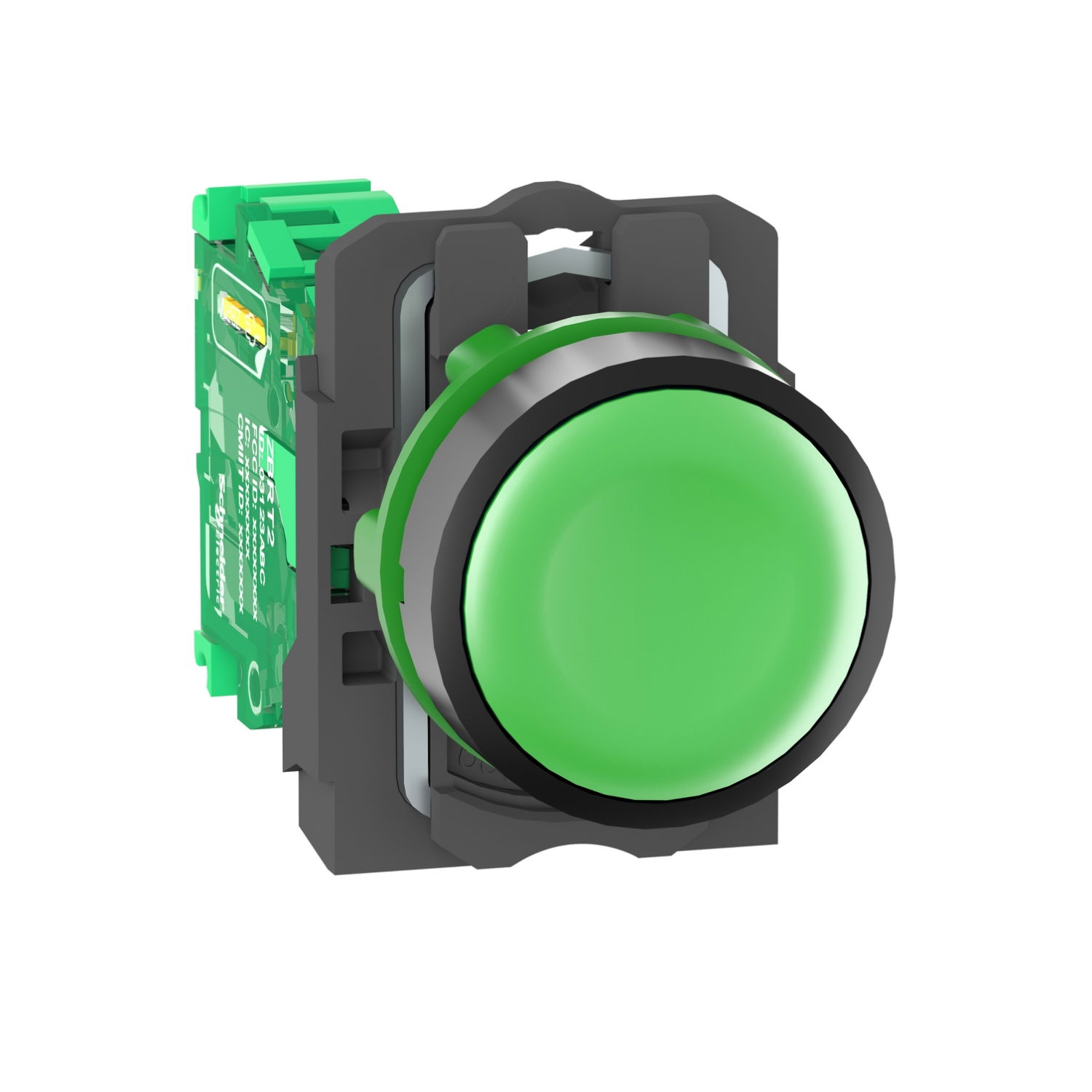

ZB5R transmitter complete, green cap

Link copied
SKU
EAN
GTIN
MPN

ZB5R transmitter complete, green cap by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and RS Components. It is currently in stock at 1 of them. Trade prices range from £75.98 to £76.74 excl. VAT. Voltimum+ members earn 10 points per unit.

This device is a flush-mounted, wireless, and batteryless plastic pushbutton (diameter 22mm). It is equipped with a green cap. The reference ZB5RTA3 includes a transmitter equipped with a fixing collar and a spring return pushbutton head with an attached cap. The cap is factory-assembled and cannot be removed. The transmitter and the receiver communicate via 2.4GHz radio transmission (free worldwide band) Zigbee Green Power. The maximum sensing distance between the transmitter and the receiver in a free field is up to 100m. It weighs 0.045kg (0.099Ib). The wireless and battery-less interfaces are used for building utilities (automatic doors, lighting, etc.) and industrial applications (conveying systems, automotive, MMM, logistics, food and beverage). It complies with various radio agreements such as ANATEL, ARIB T66, FCC, ICASA, and RSS, as well as the standards of CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, and UL 508. Using wireless technology, the Harmony Wireless Pushbuttons & Ecosystem pushbuttons don’t require batteries and are easy to install in both new and existing applications.

Voltimum+ Loyalty Programme Loyalty points: 10

Price range: £ 75.98 - £ 76.74 Excl. VAT

Specifications

Transparent -
Colour button Other
Hole diameter 22.5 mm
Spring-return no
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Plastic
Suitable for lighting no
Degree of protection (IP) Other
Number of command positions 0
Type of electric connection Other
Number of contacts as normally open contact 0

Documents

Declaration of Conformity (Sustainability)

ZB5RTA3 REACh Regulation

Open

User guide

Harmony XB5R Harmony Wireless Push Buttons Expert, Instruction Sheet

Open

Instruction sheet

ZBRZ1 - Harmony XB5R, Advanced commissioning module for ZBRT transmitters, Instruction Sheet

Open

Product data sheet

Open

Brochure

Harmony Hub ecosystem

Open

Catalog

Discover the Harmony Wireless Pushbuttons & Ecosystem - Wireless and batteryless pushbuttons catalog

Open

Declaration of Conformity (Sustainability)

ZB5RTA3 EU RoHS Directive

Open

Declaration of conformity

PZC-2430 ACMA DoC of Harmony Wireless Push Buttons

Open
