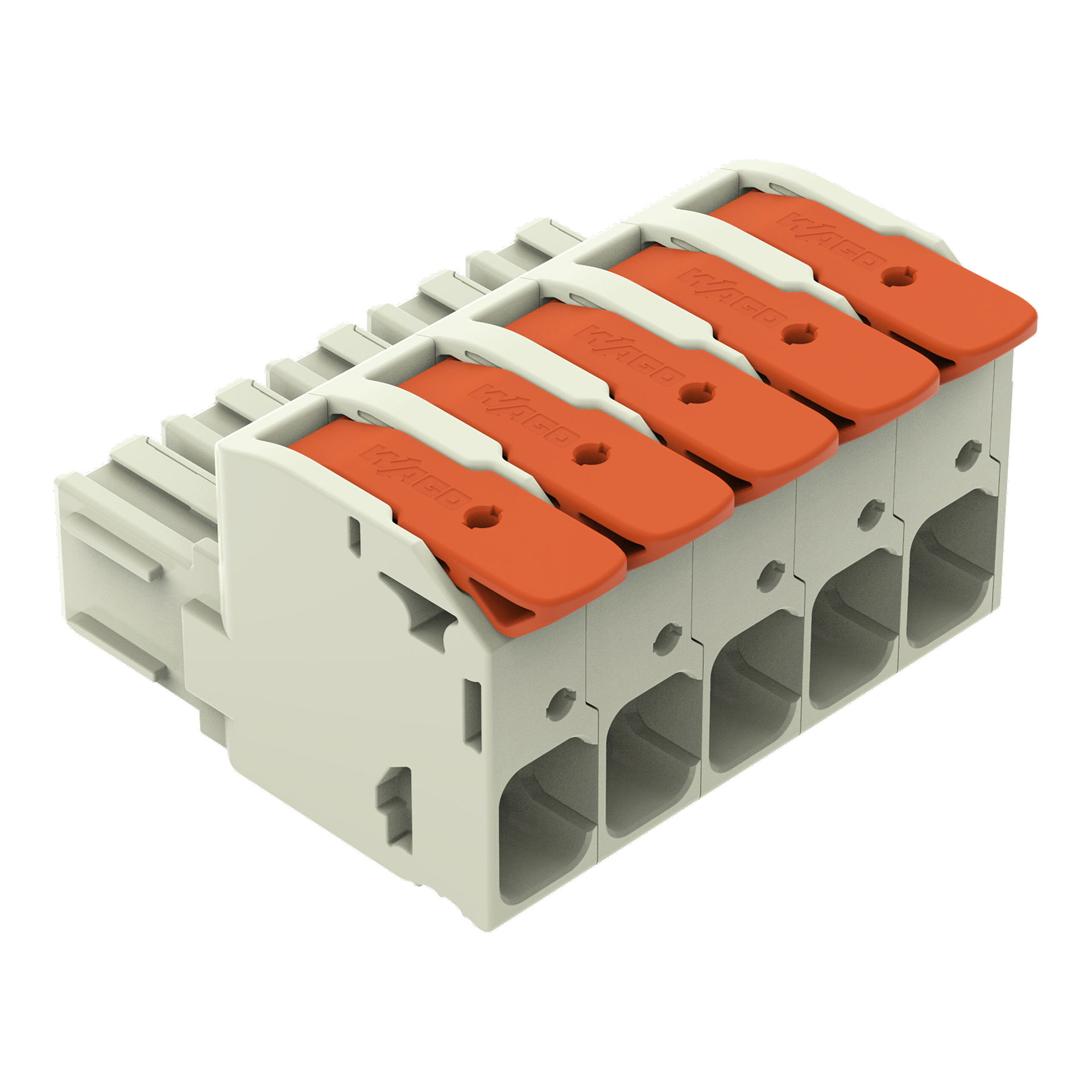

1-conductor female connector lever Push-in CAGE CLAMP® light gray
1-conductor female connector; lever; Push-in CAGE CLAMP®; 16 mm²; Pin spacing 10.16 mm; 5-pole; 100% protected against mismating; Silver-plated contacts; 16,00 mm²; light gray
Product identifiers
SKU: 832-1105
EAN: 4055143736749
GTIN: 4055143736749
MPN: 832-1105
Loyalty points:
4
Price range: £ 10.57 - £ 12.08 Excl. VAT
Categories
Features
|
Depth
|
49.8
|
|
Width
|
10.16
|
|
Colour
|
Grey
|
|
Height
|
29.1
|
|
Transparent
|
no
|
|
Halogen free
|
-
|
|
Rated voltage
|
1000
|
|
Mounting method
|
Other
|
|
Number of poles
|
5
|
|
Rated current In
|
76
|
|
Operating temperature
|
-60 - 120
|
|
Closing plate required
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
Drill hole distance centrically
|
-
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per pole
|
1
|
|
Connectable conductor cross section solid-core
|
0.75 - 16
|
|
Connectable conductor cross section multi-wired
|
0.75 - 25
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 16
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.75 - 25
|
