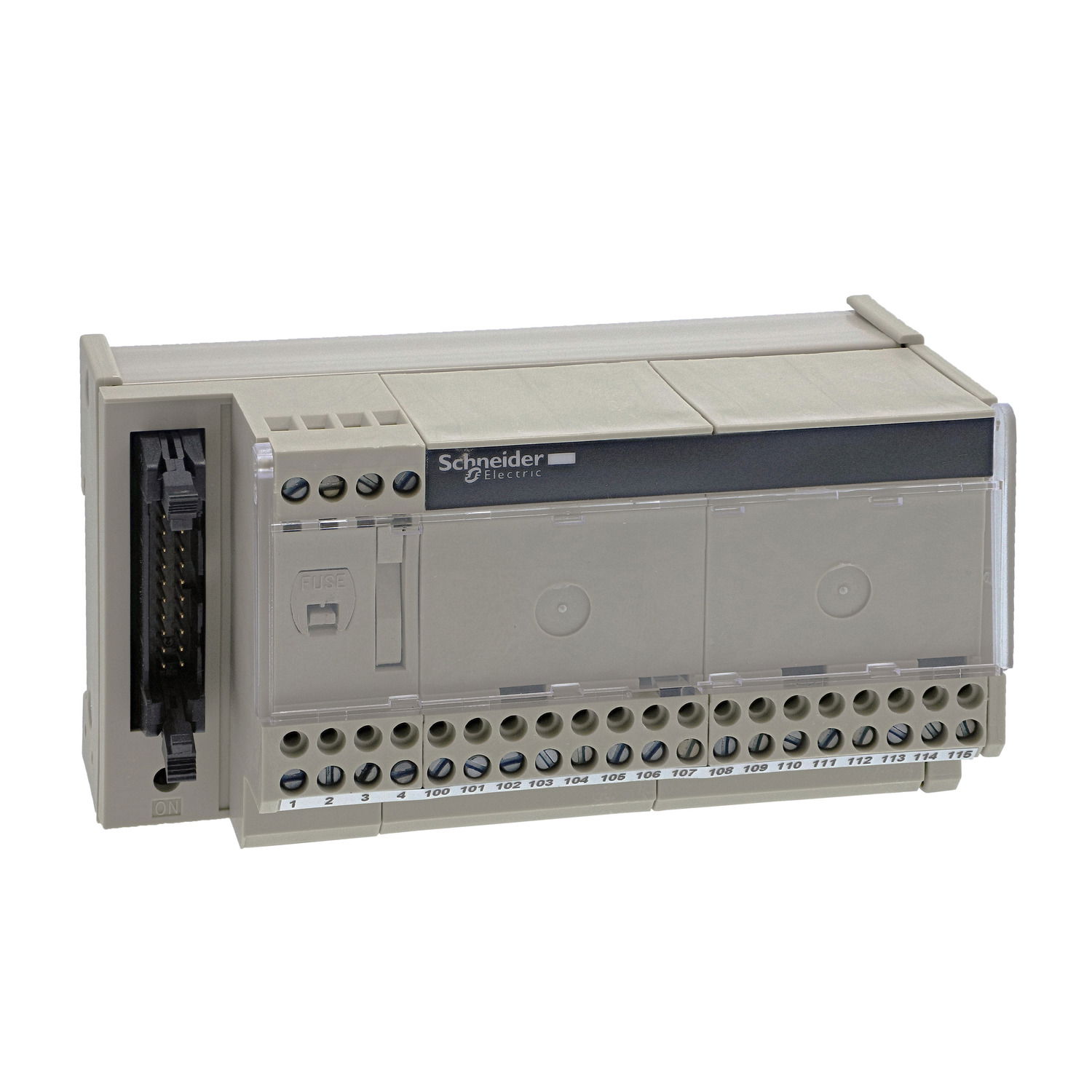

Passive connection sub-base ABE7 - 16 inputs or outputs

Link copied
SKU
EAN
GTIN
MPN

Passive connection sub-base ABE7 - 16 inputs or outputs by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £45.60 excl. VAT. Voltimum+ members earn 5 points per unit.

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel." "Its control circuit voltage is 24VDC." "It provides a digital I/O control function." "It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a universal sub-base with IP20 degree of protection. It weighs 0.274kg." 0 "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with Modicon Quantum and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."

Voltimum+ Loyalty Programme Loyalty points: 5

Price: £ 45.60 Excl. VAT

Specifications

Depth -
Width -
Height -
Rated voltage -
Housing colour Other
Housing material Plastic
Pollution degree 1
Operating voltage
With LED indication no
Operating temperature
Material insulation body Other
Degree of protection (IP) Other
Connection for NPN-sensors no
Material of contact surface Other
Number of sensor-/actuator-slots -
Explosion safety category for gas Other
Connectable conductor cross section
Thread sleeves sensor/actuator slots Other
Number of poles sensor/actuator slots -
Type of branches for sensor-/actuator cables Other
Fix cable version suitable for cable guide chain no
