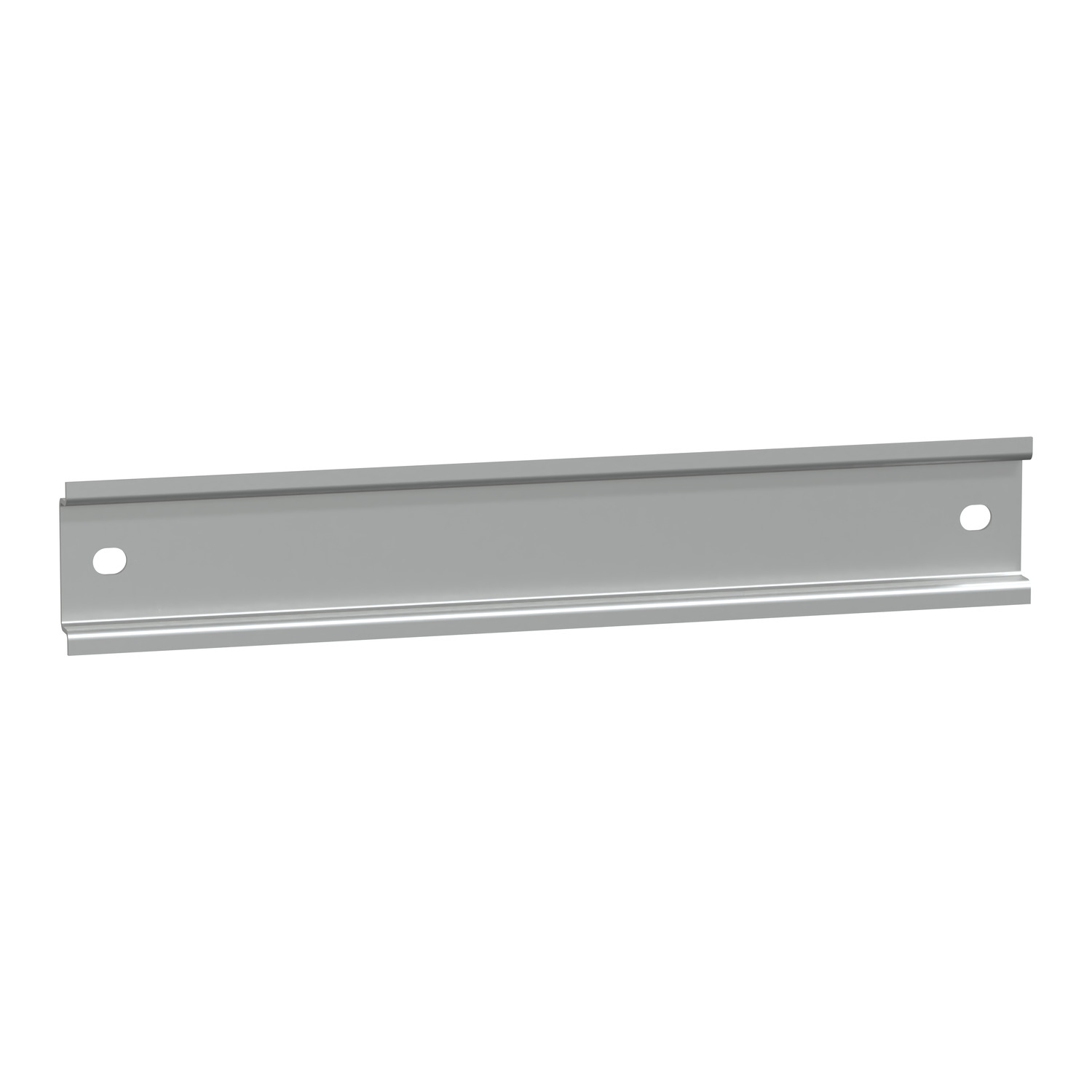

35mm symetrical DIN rail -L 180mm for using with NSYTCSxx in PLM32
35mm symetrical DIN rail -L 180mm for using with NSYTCSxx in PLM32
35mm symetrical DIN rail -L 180mm for using with NSYTCSxx in PLM32 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade price £3.93 excl. VAT. Voltimum+ members earn 1 point per unit.
"Set of 2 symmetrical DIN rails for equipment to be used in PanelSeT PLM enclosures" "The rail is made from zinc coated 1mm steel" "The width is 7,2mm" The height is 35mm. The product length is 203mm. Fixed with a pitch of 25mm. "This product is qualified as a green premium, with minimal use of hazardous substances"
Product identifiers
SKU: NSYCS200PLM
EAN: 3606480191633
GTIN: 3606480191633
MPN: NSYCS200PLM
Loyalty points:
1
Price: £ 3.93 Excl. VAT
Categories
ETIM group
Specifications
| Model | DIN rail (top hat rail) 35/7.5 mm |
| Height | 7.5 mm |
| Length | 203 mm |
| Material | Steel |
| Punch shape | Round hole |
| Material thickness | 1 mm |
| Surface protection | Continuously galvanised |
| Drill hole distance centrically | 183 mm |
