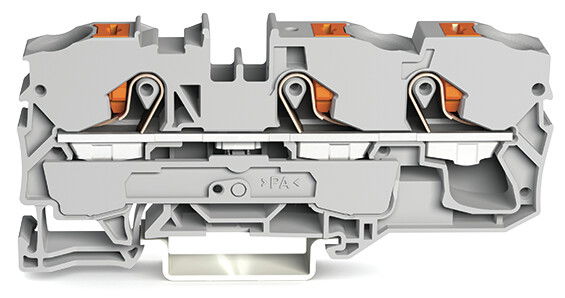

3-conductor through terminal block with push-button 10 mm² gray
Wago

3-conductor through terminal block with push-button 10 mm² gray

3-conductor through terminal block; with push-button; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; gray

Product identifiers

SKU: 2210-1301
EAN: 4055143736114
GTIN: 4055143736114
MPN: 2210-1301

V+ Loyalty points:

6

Price range: £ 3.09 - £ 4.26 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 36.9
Width 10
Colour Grey
Height 89
EFNA0008 V0
Rated voltage 800
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 3
Connectable conductor cross section multi-wired 0.5 - 10
Connectable conductor cross section fine-strand without cable end sleeve 0.5 - 16
