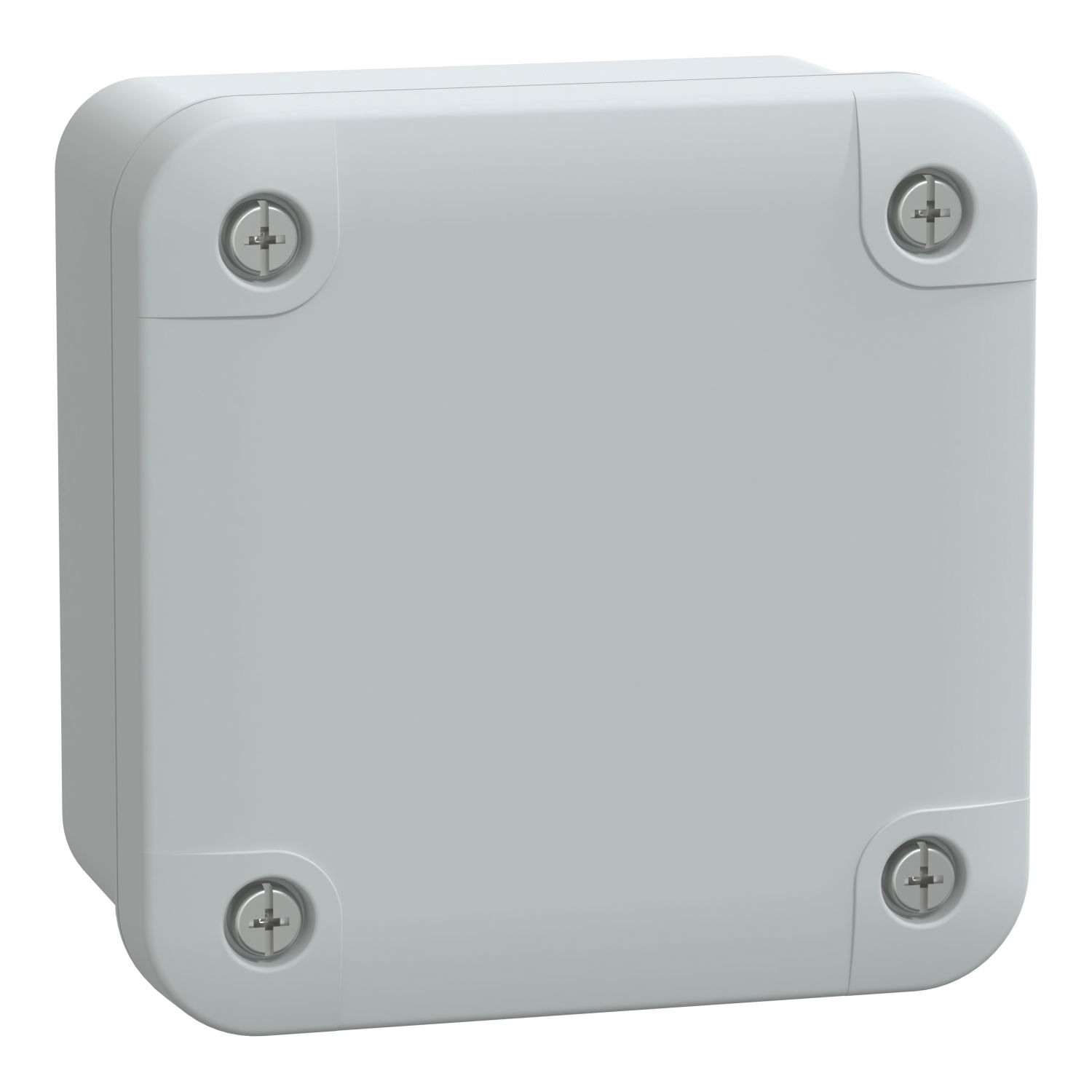

ABS box IP66 IK07 RAL7035 Int.H80W80D65 Ext.H89W89D51 Opaque cover H10

ABS box IP66 IK07 RAL7035 Int.H80W80D65 Ext.H89W89D51 Opaque cover H10

PanelSeT TBS industrial ABS box with opaque cover H10. Int is 80 x 80 x 65 mm. Ext is 89 x 89 x 51 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Product identifiers

SKU: NSYTBS885
EAN: 3606480165214
GTIN: 3606480165214
MPN: NSYTBS885

V+ Loyalty points:

2

Price range: £ 3.69 - £ 4.64 Excl. VAT

Specifications

Depth 54 mm
Width 89 mm
Colour Grey
Height 89 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 47 mm
Built-in depth -
Impact strength IK07
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) -
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -
