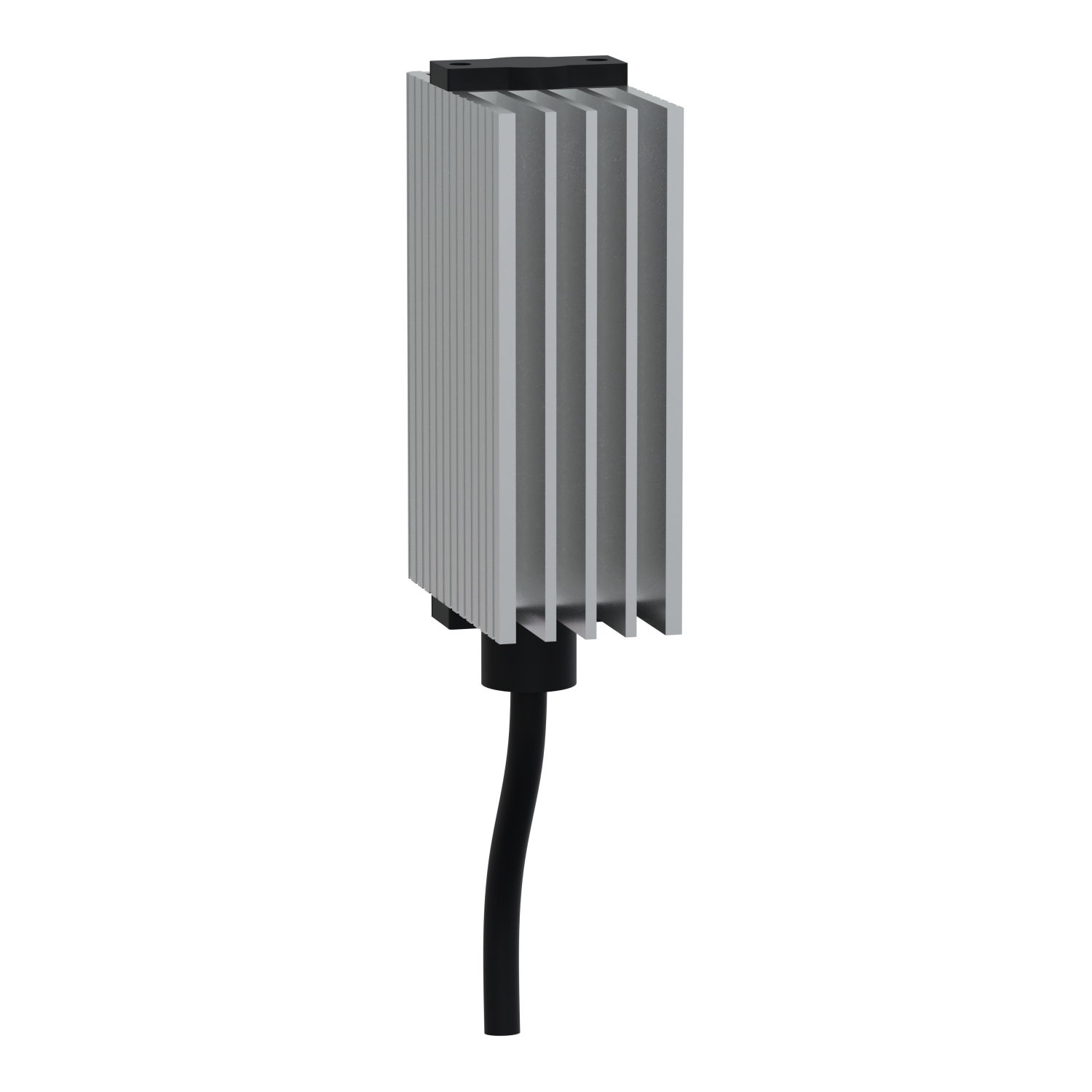

ClimaSys PTC heating resistance 10W, 110-250V
ClimaSys PTC heating resistance 10W, 110-250V
ClimaSys PTC heating resistance 10W, 110-250V by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £36.08 to £38.16 excl. VAT. Voltimum+ members earn 5 points per unit.
ClimaSys PTC heating resistance. 10W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Product identifiers
SKU: NSYCR10WU2
EAN: 3606480152115
GTIN: 3606480152115
MPN: NSYCR10WU2
Loyalty points:
5
Price range: £ 36.08 - £ 38.16 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 65 mm |
| Width | 85 mm |
| Height | 130 mm |
| With fan | no |
| Rated power | 10 W |
| Voltage type | AC |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
