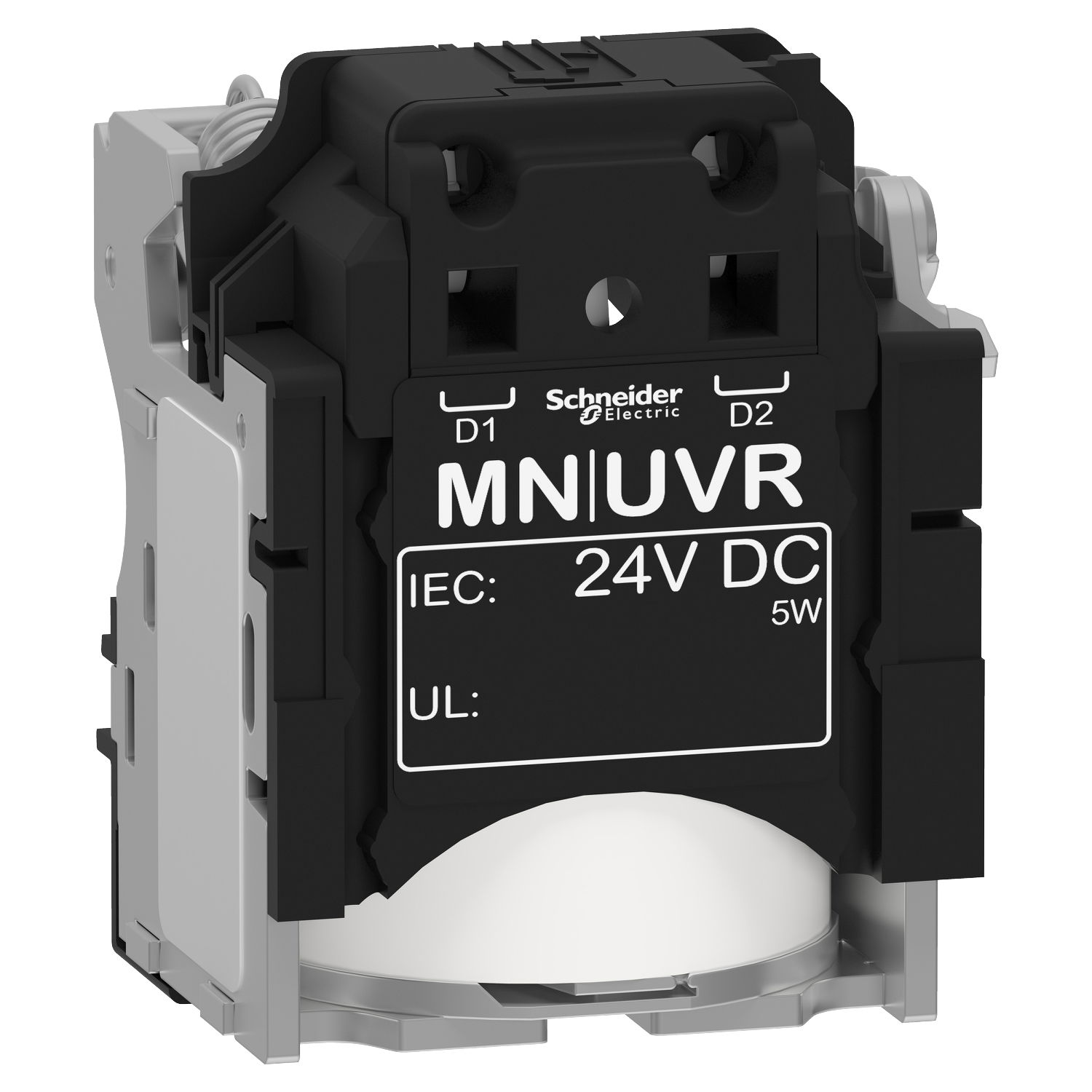

MN undervoltage release, ComPacT NSX, rated voltage 24 VDC, screwless spring terminal connections
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
MN undervoltage release, ComPacT NSX, rated voltage 24 VDC, screwless spring terminal connections
MN undervoltage release, ComPacT NSX, rated voltage 24 VDC, screwless spring terminal connections by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components, Rexel Group and 1 more. It is currently in stock at 3 of them. Trade prices range from £127.40 to £183.82 excl. VAT. Voltimum+ members earn 21 points per unit.
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Product identifiers
SKU: LV429410
EAN: 3606480018992
GTIN: 3606480018992
MPN: LV429410
Loyalty points:
21
Price range: £ 127.40 - £ 183.82 Excl. VAT
ETIM group
Specifications
| Delayed | no |
| Voltage type for actuating | DC |
| Suitable for overload relay | no |
| Type of electric connection | Spring clamp connection |
| Suitable for off-load switch | yes |
| Rated control supply voltage DC | |
| Suitable for motor safety switch | yes |
| Suitable for power circuit breaker | yes |
