Categories
Features
|

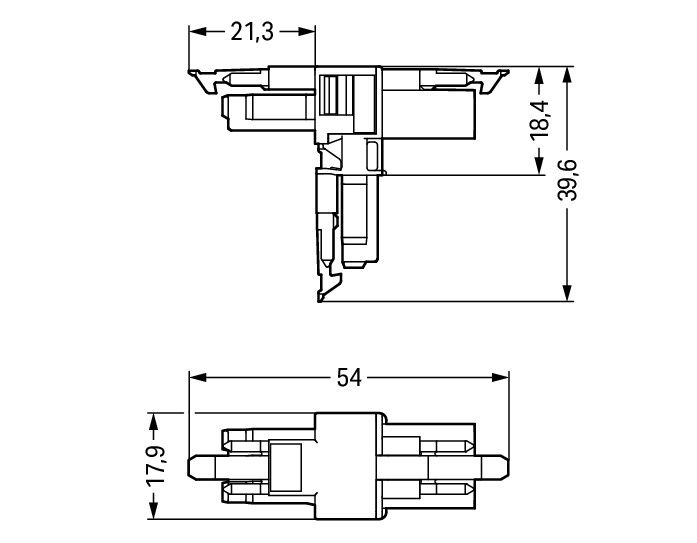

Width
|
17.9 mm
|
|
Height
|
39.6 mm
|
|
Length
|
54 mm
|
|
Fire load
|
0.04833 kWh
|
|
Halogen free
|
yes
|
|
Phase pickup
|
-
|
|
Rated current
|
16 A
|
|
Rated voltage
|
250 V
|
|
Number of poles
|
3
|
|
Type of locking
|
Integrated in plug-in connector
|
|
Contact material
|
CuSn
|
|
Housing material
|
Polyamide (PA)
|
|
Number of inputs
|
3
|
|
Pollution degree
|
3
|
|
Mechanical coding
|
yes
|
|
Number of outputs
|
6
|
|
Pole codification
|
-
|
|
Rated surge voltage
|
4 kV
|
|
Type of distributor
|
T-distributor
|
|
Mounting possibility
|
No
|
|
Continuity resistance
|
1 mOhm
|
|
Degree of protection (IP)
|
IP20
|
|
Rated current to luminaire
|
16 A
|
|
Surface treatment contacts
|
Tinned
|
|
Colour coding/contact insert
|
-
|
|
Type of integrated switching
|
None
|
|
RAL-number coding/contact insert
|
-
|
|
Colour of the separate adapter piece
|
Without adapter piece
|
|
Max. continuous temperature resistance contact part
|
85 °C
|
|
Max. continuous temperature resistance strain relief
|
105 °C
|
