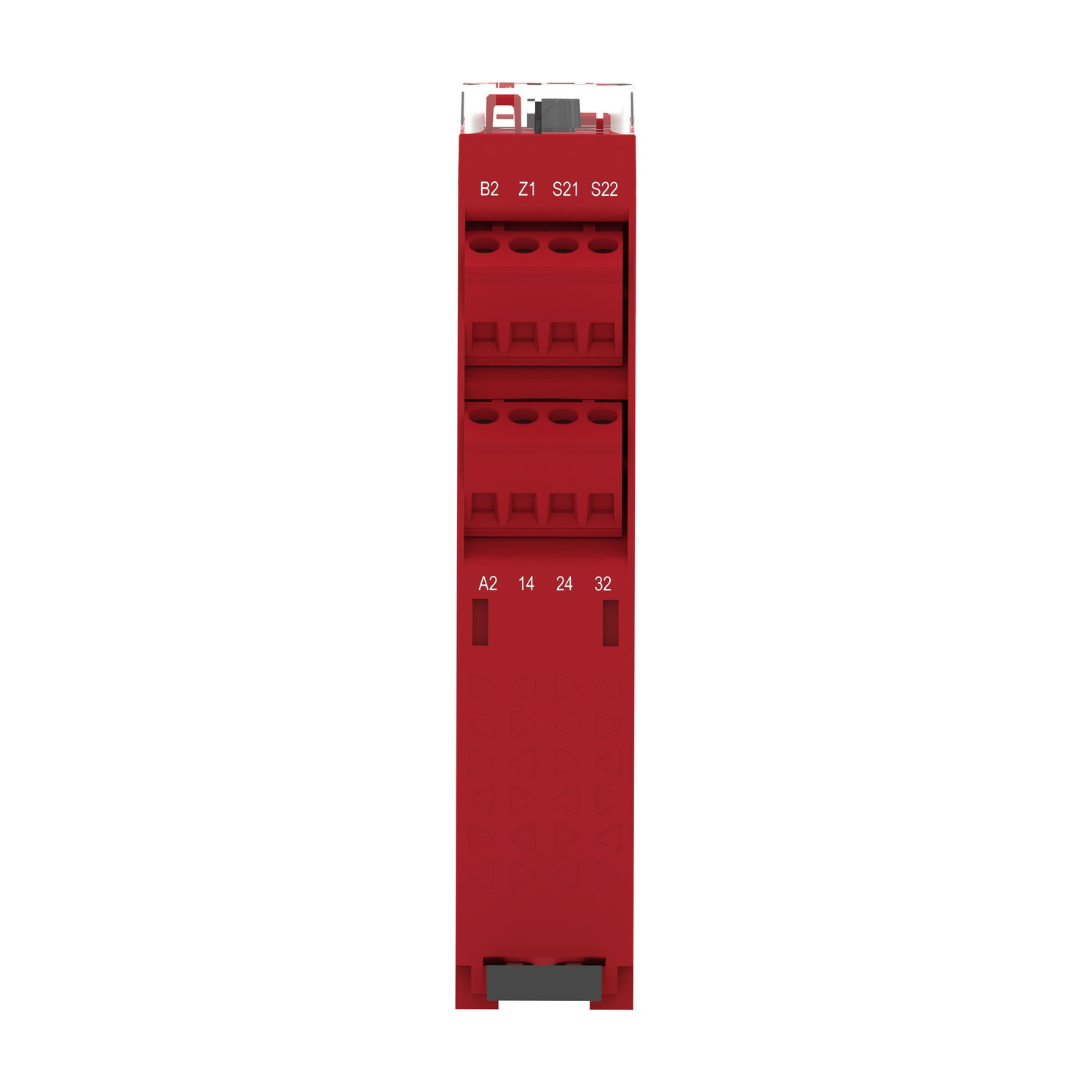

Preventa module Cat.4 features XPSUAF + PNP/NPN, safety mat 24vac/dc screw

Link copied
SKU
EAN
GTIN
MPN

Preventa module Cat.4 features XPSUAF + PNP/NPN, safety mat 24vac/dc screw by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia and RS Components. It is currently in stock at 2 of them. Trade prices range from £141.71 to £230.87 excl. VAT. Voltimum+ members earn 29 points per unit.

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensors, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 2 NO + 1 NC safety outputs, and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Voltimum+ Loyalty Programme Loyalty points: 29

Price range: £ 141.71 - £ 230.87 Excl. VAT

Specifications

Depth 120 mm
Model Basic device
Width 22.5 mm
Height 100 mm
EFDE0031 yes
Release-delay
With start input yes
Control voltage 1
Evaluation inputs 2-channel
Supply voltage DC
Rated switch current 1.1 A
With feedback circuit yes
Supply voltage AC 50 Hz
With approval for BG BIA no
Type of control voltage 2 DC
Operating voltage AC 60 Hz
Suitable for rail mounting yes
Voltage type (supply voltage) DC
Voltage type (operating voltage) DC
Stop category according to IEC 60204 0
Suitable for monitoring of tactile sensors no
Suitable for monitoring of position switches yes
Suitable for monitoring of proximity switches yes
Number of outputs, safety related, delayed, with contact 0
Number of outputs, safety related, undelayed, with contact 3
Number of outputs, signalling function, delayed, with contact 0
Number of outputs, signalling function, delayed, semiconductors 0
Number of outputs, signalling function, undelayed, semiconductors 0
