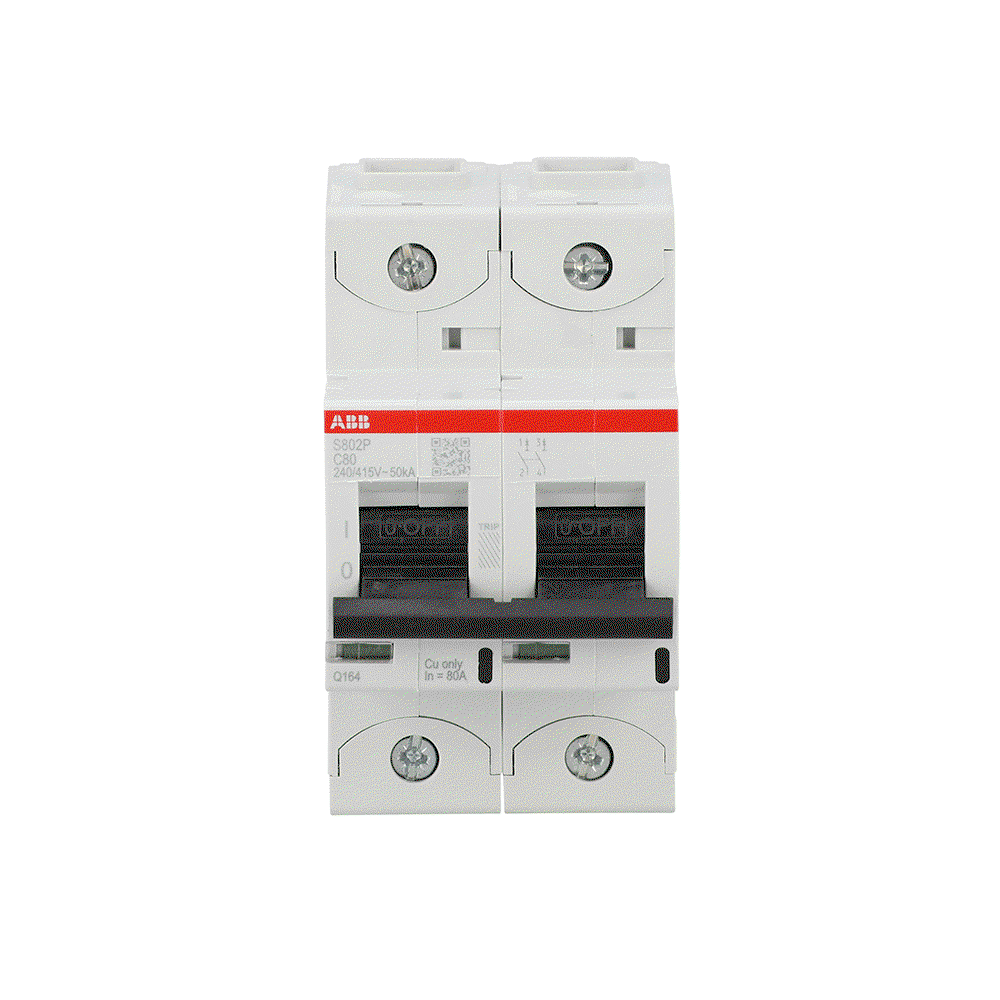

S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P

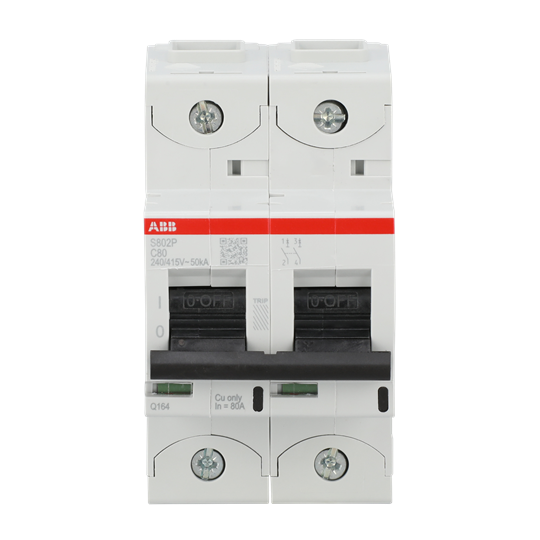

S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P – Image 2 of 4

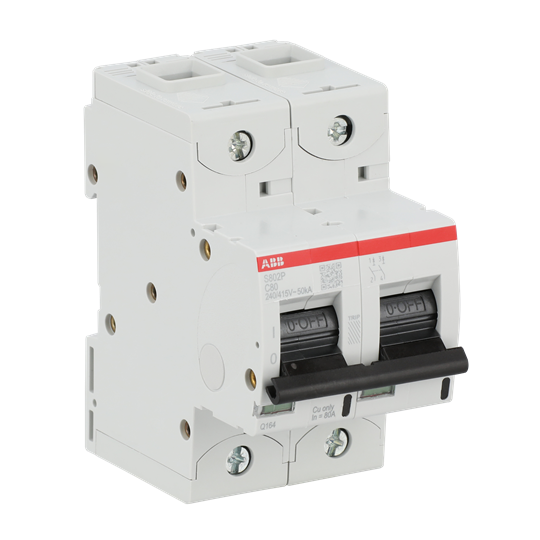

S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P – Image 3 of 4

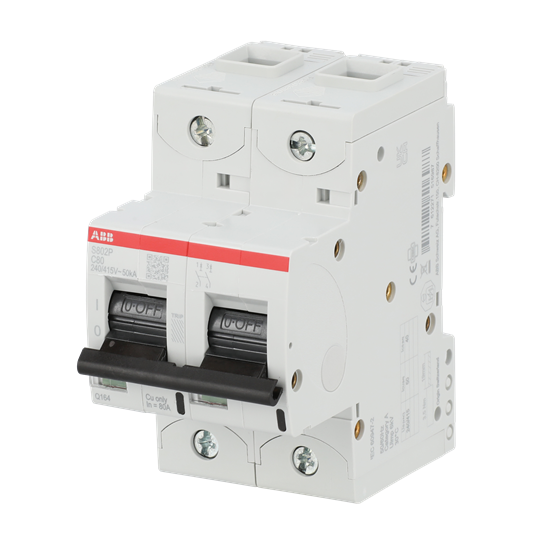

S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P – Image 4 of 4

1 / 4

S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P

Name: S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P
Brand: ABB
SKU: 2CCG001229R0001
Availability: InStock

S802P-C80 High Performance Circuit Breaker. C Characteristic. 50kA, 80A, 2P by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £169.96 excl. VAT. Voltimum+ members earn 109 points per unit.

Product identifiers

SKU: 2CCG001229R0001

EAN: 7612271516987

GTIN: 7612271516987

MPN: S802P-C80

Loyalty points: 109

Price: £ 169.96 Excl. VAT

Specifications

Frequency
Power loss	12.8
Voltage type	AC/DC
Rated current	80
Rated voltage	400
Built-in depth	82.5
Explosion-proof	-
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	690
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	6
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
