Schneider Electric

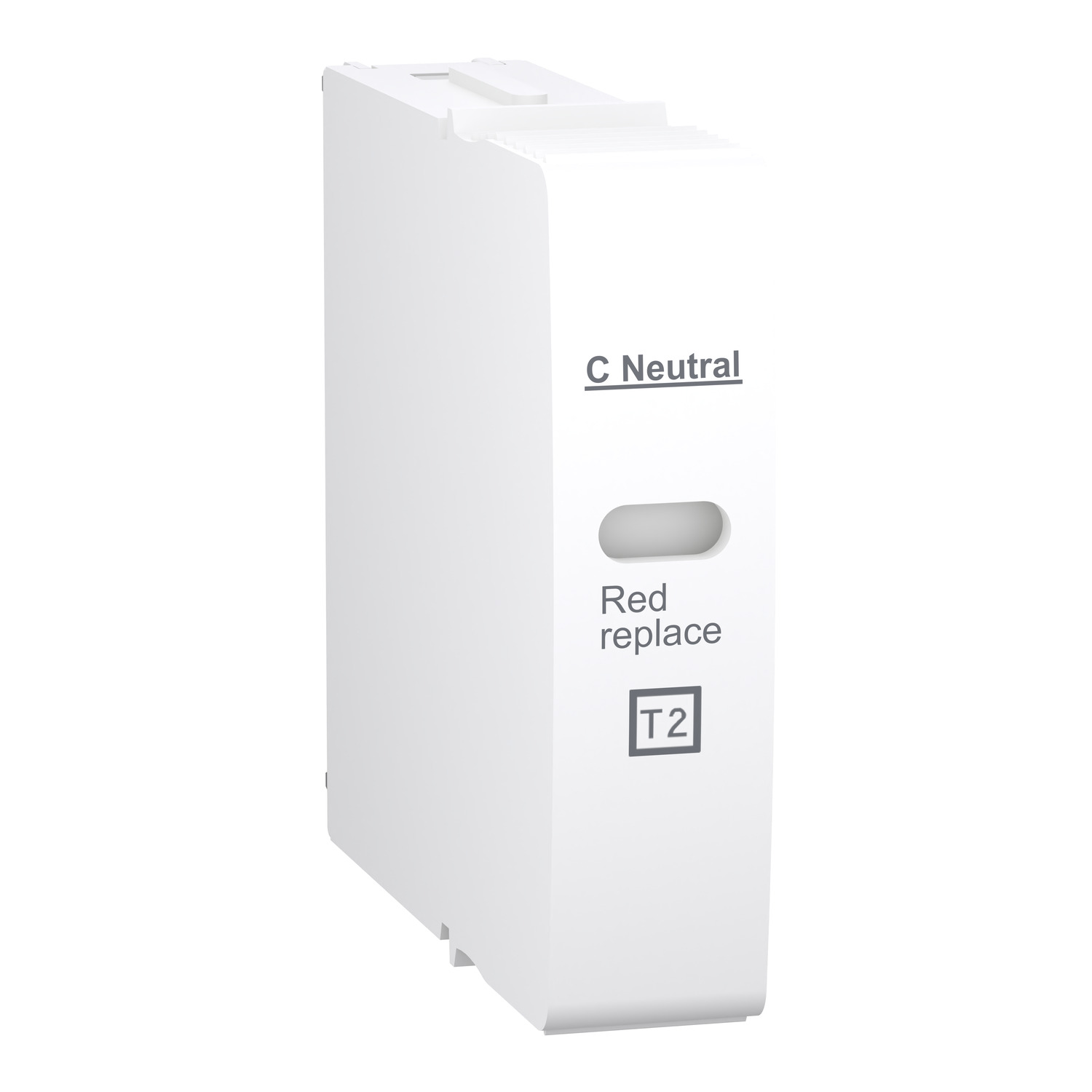

Cartridge C neutral-350 for surge arrester iQuick PRD

This Acti9 product is a cartridge C neutral-350 for surge arrester iQuick PRD. The Imax maximum discharge current is 65kA. The In nominal discharge current is 20kA. This product is compatible with TT and TN earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 264VAC. The Up Voltage protection level is 1.5kV. It can be plugged into a surge protecting device module. Its width is 50 mm pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 12mm x (H) 50mm x (D) 57mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 70°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.

Product identifiers

SKU: A9L16313
EAN: 3606480387166
GTIN: 3606480387166
MPN: A9L16313

Voltimum+ Loyalty Programme Loyalty points: 28

Price: £ 168.00 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM group

Earthing, lightning and surge protection

Specifications

Category type 2 yes
Max. PV-voltage -
Mounting method On basic element
Construction size Other
Nominal voltage AC 230 V
Nominal voltage DC -
Leakage-current free no
Integrated backup fuse no
System configuration IT no
System configuration TT yes
Voltage protection level 1.5 kV
System configuration TN-C no
Max. continuous voltage AC 264 V
System configuration other no
Voltage protection level L-N -
With remote signalling contact no
Max. discharge surge current (8/20) 65 kA
Number of conductors (without earthing) -
Max. conductor cross section flexible (fine-strand) -
Integrated short-circuit protection selective to fuse gG -
Max. overcurrent protection device, parallel connection (fuse) -
