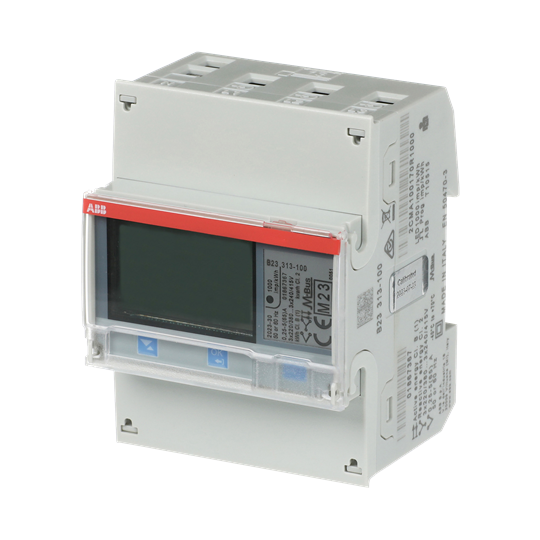

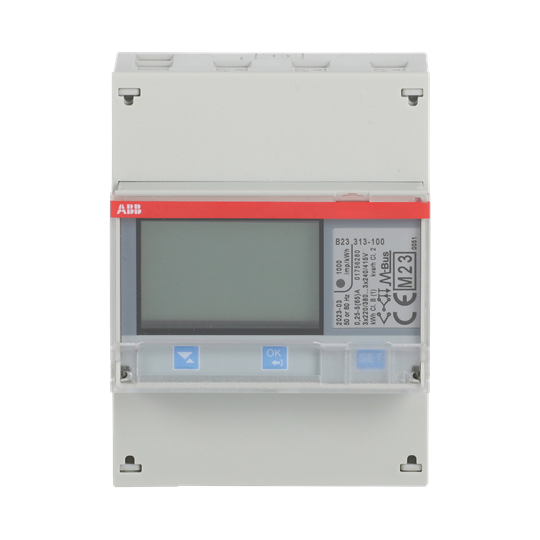

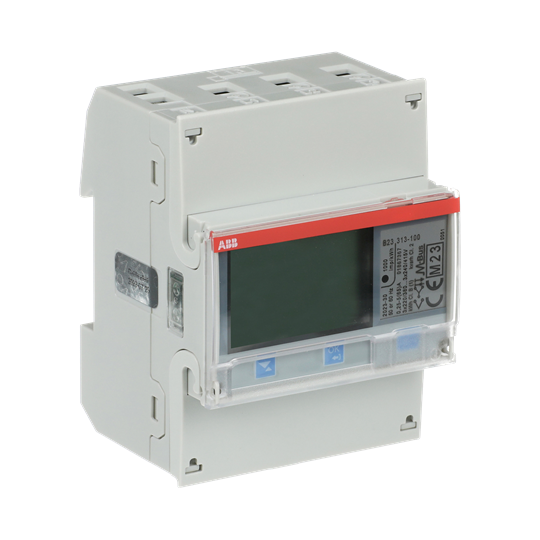

Energy meter 'Silver', M-Bus, 3-phase, 5 A

Link copied
SKU
EAN
GTIN
MPN
Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Up to four tariffs. Two outputs and inputs for pulses or alarm etc. M-Bus communication.Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.

Voltimum+ Loyalty Programme Loyalty points: 204

Price: £ 430.37 Excl. VAT

Specifications

Depth 65
Model Direct measurement
Width 70
Height 26.5
Approval Measuring Instruments Directive
Frequency
Pole type -
Calibrated yes
Pulse type S0
Tariff type Multi-tariff
Suitable for -
Accuracy class B
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface Other
Max. current (Imax) 65
Nominal current (In) 65
Nominal voltage (Un) N-L
Degree of protection (NEMA) -
Number of positions total (counter) 7

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_E_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Dimensioned drawing

2CMC485003M0201_en_B23_B24_User_Manual.pdf

Open

Instructions for use

2CMC485019M0201_en_H_B21_B23_B24 Installation Manual.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108470A3631_deenfrit_C_Declaration of Conformity - B21,B23.pdf

Open

Declaration EPD (Environmental Product Declaration)

ABB EQ Meters - Product Environmental Profile.pdf

Open
