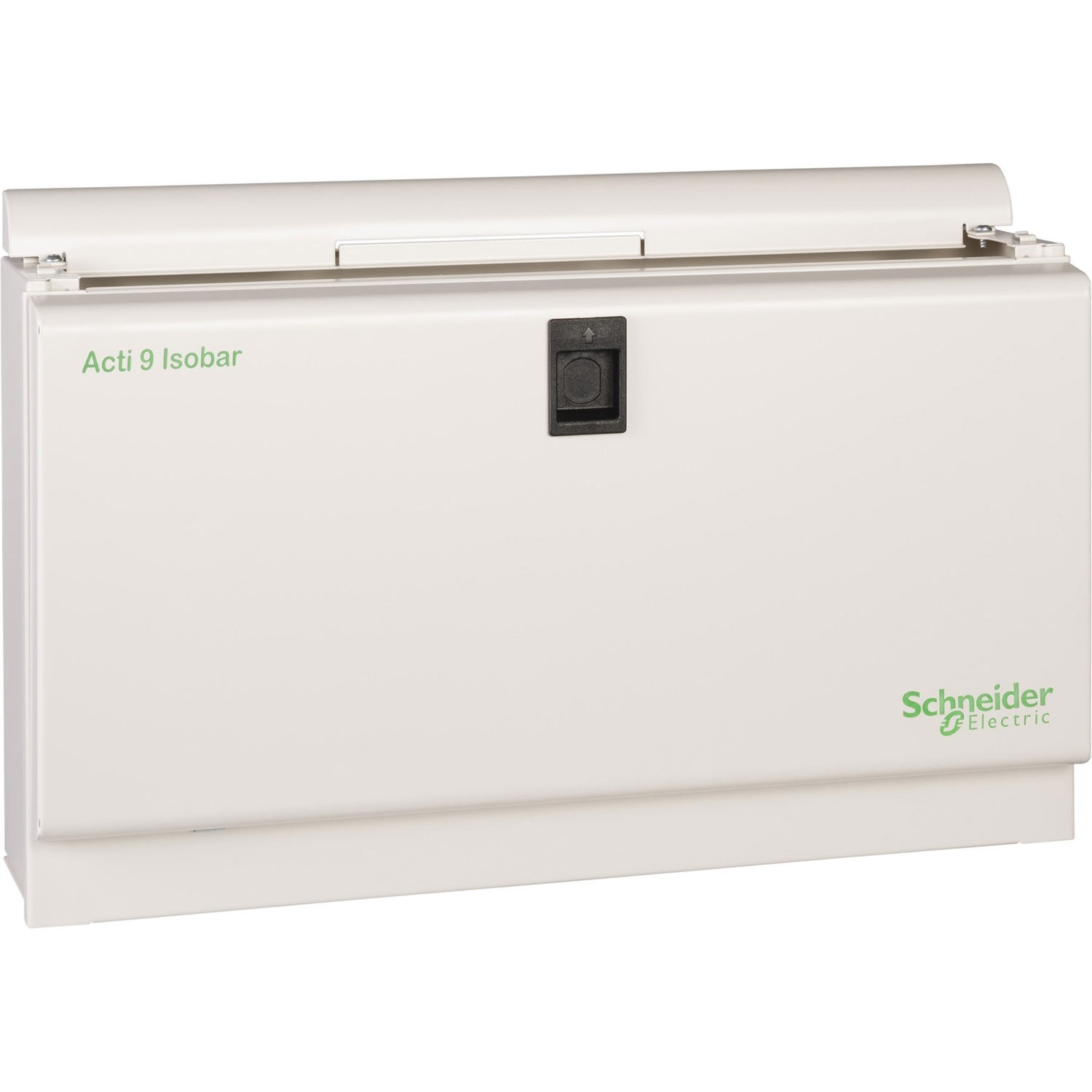

Acti9 Isobar B - extension box - with door & cutout for 17 x 18 mm pole
This Acti9 Isobar B product is a distribution extension box for an Acti9 Isobar B distribution board. It is composed of 1 row of 17 modules of 18mm. It comes with 1 DIN rail, a door and front cover. The total dimensions are (W) 470mm x (H) 270mm x (D) 140mm.
Product identifiers
SKU: SEA9BNEX034N
EAN: 5018934963112
GTIN: 5018934963112
MPN: SEA9BNEX034N
Loyalty points:
86
Price: £ 242.40 Excl. VAT
Categories
Features
|
Depth
|
140 mm
|
|
Width
|
470 mm
|
|
Colour
|
White
|
|
Height
|
270 mm
|
|
DIN-rail
|
TRUE
|
|
With lock
|
TRUE
|
|
RAL-number
|
9001
|
|
Cover model
|
Closed
|
|
EMC-version
|
FALSE
|
|
Inner depth
|
-
|
|
Type of door
|
Single
|
|
UV resistant
|
FALSE
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Number of rows
|
1
|
|
Built-in height
|
-
|
|
Mounting method
|
Surface mounted
|
|
Type of closure
|
Other
|
|
Housing material
|
Steel
|
|
Type of covering
|
Door
|
|
Extension possible
|
FALSE
|
|
Signal passing door
|
FALSE
|
|
With mounting plate
|
FALSE
|
|
Neutral terminal block
|
-
|
|
Transparent cover/door
|
FALSE
|
|
Earthing terminal block
|
-
|
|
Degree of protection (IP)
|
IP3X
|
|
Width in number of modular spacings
|
34
|
