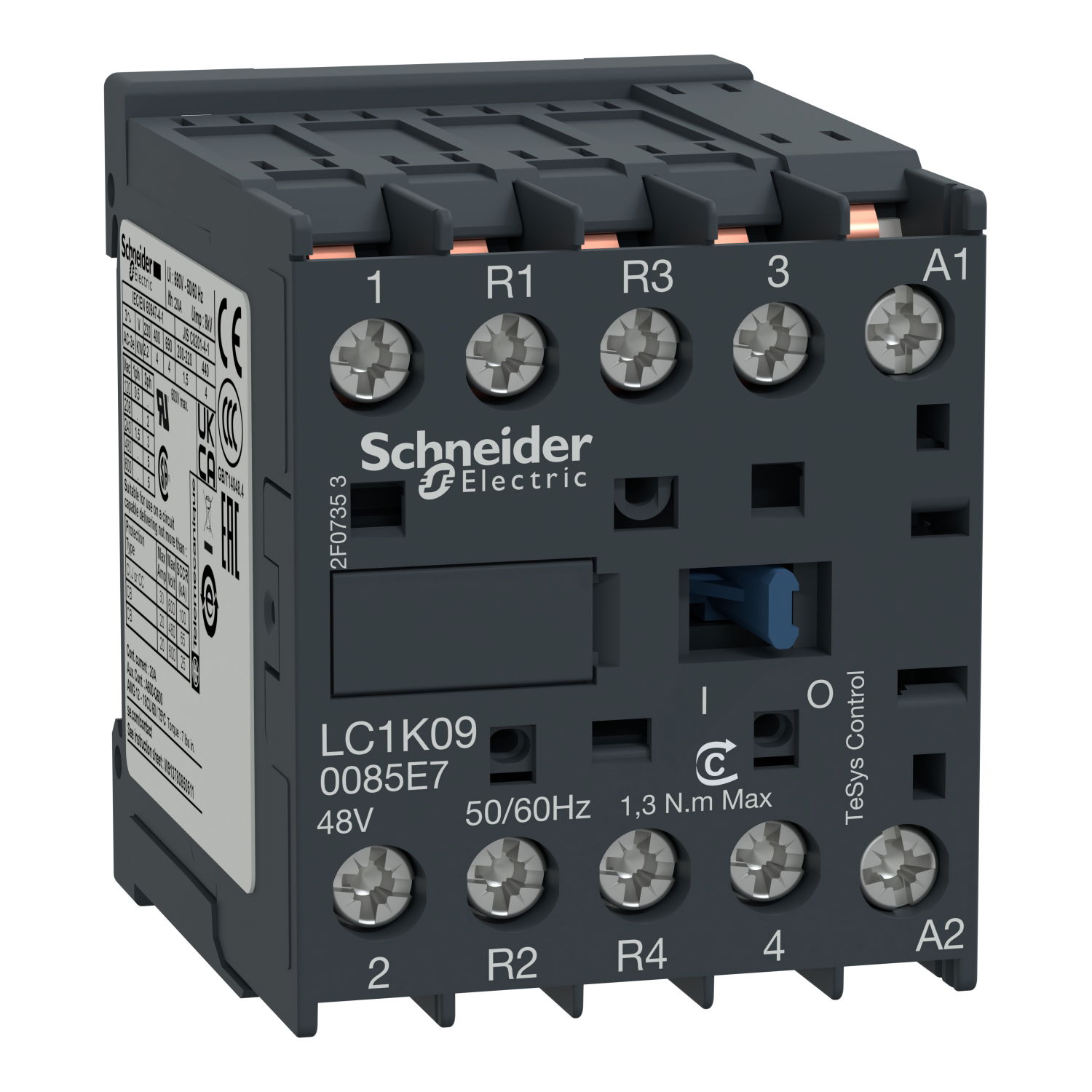

TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 48 V AC coil

Name: TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 48 V AC coil
Brand: Schneider Electric
SKU: LC1K090085E7
Availability: InStock

TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 48 V AC coil by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £42.79 to £43.22 excl. VAT. Voltimum+ members earn 5 points per unit.

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a 48V 50/60Hz AC coil, without built-in auxiliary contact, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Product identifiers

SKU: LC1K090085E7

EAN: 3389110489569

GTIN: 3389110489569

MPN: LC1K090085E7

Loyalty points: 5

Price range: £ 42.79 - £ 43.22 Excl. VAT

Specifications

Depth	57 mm
Width	45 mm
Height	58 mm
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	AC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	-
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	20 A
Rated operation current Ie at AC-3, 400 V	-
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	PCB connection
Number of normally open contacts as main contact	2
Number of normally closed contacts as main contact	2
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
