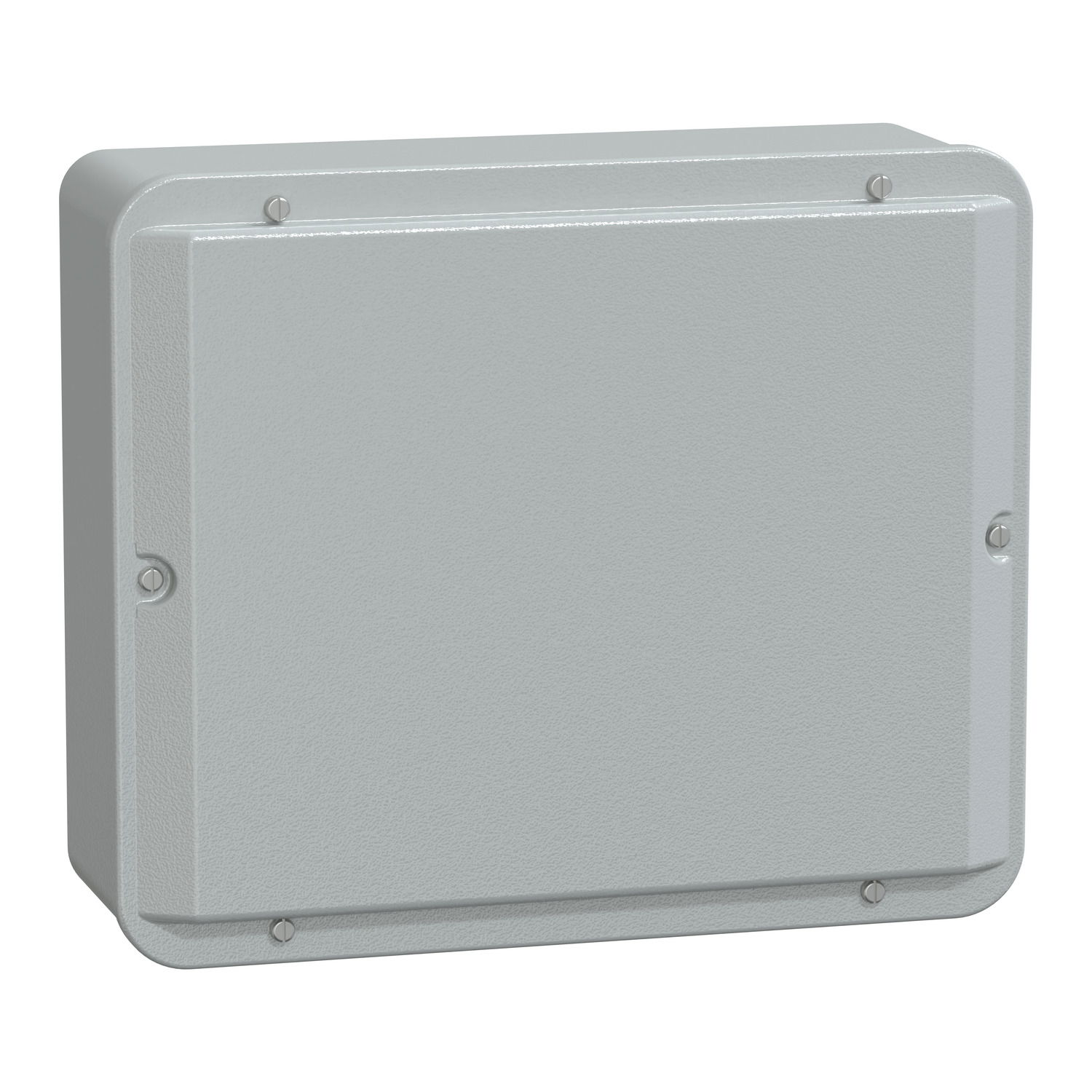

Metal industrial box - low plain cover - H307xW257xD116 - IP55 - grey RAL 7035

Name: Metal industrial box - low plain cover - H307xW257xD116 - IP55 - grey RAL 7035
Brand: Schneider Electric
SKU: NSYDBN3025
Price: 71.00 GBP
Availability: InStock

Product identifiers

SKU: NSYDBN3025

EAN: 3606480187896

GTIN: 3606480187896

MPN: NSYDBN3025

Loyalty points: 12

Price: £ 71.00 Excl. VAT

ETIM Group

Connection material (electrotechnical)

Videos

How to video

Specifications

Depth	116 mm
Model	Junction box
Shape	Rectangular
Width	257 mm
Colour	Grey
Length	307 mm
Castable	no
Diameter	-
Material	Steel
Sealable	no
Connectable	no
Cover model	Blind cover
Halogen free	-
Weatherproof	yes
Equipped with	None
With screening	no
For Ex-zone gas	None
Mounting method	Wall-/ceiling mounting
Cover attachment	Screwed
For Ex-zone dust	None
Number of inlets	4
Circuit integrity	None
For tube diameter	Other
Transparent cover	no
Surface protection	Other
Inlet from the rear	no
Mounting in the soil	no
Mounting under water	no
Operating temperature
Explosion-tested version	no
Casting compound included	no
Degree of protection (IP)	IP55
Degree of protection (NEMA)	13
Rated insulation voltage Ui	-
Max. conductor cross section	50.5 mm²
Type of housing feed-through	None
