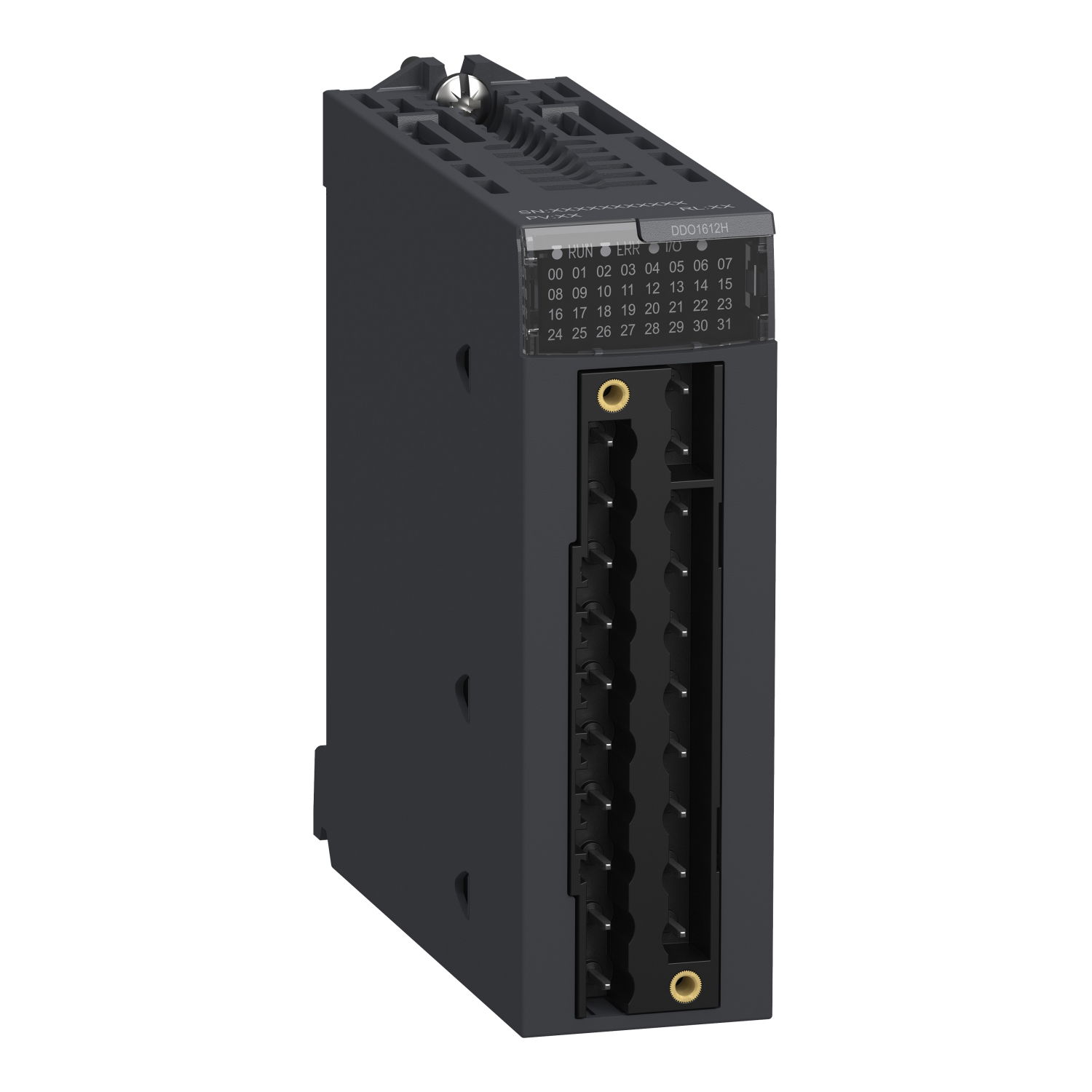

Discrete output module X80 - 16 O - 24 V DC - for severe environments

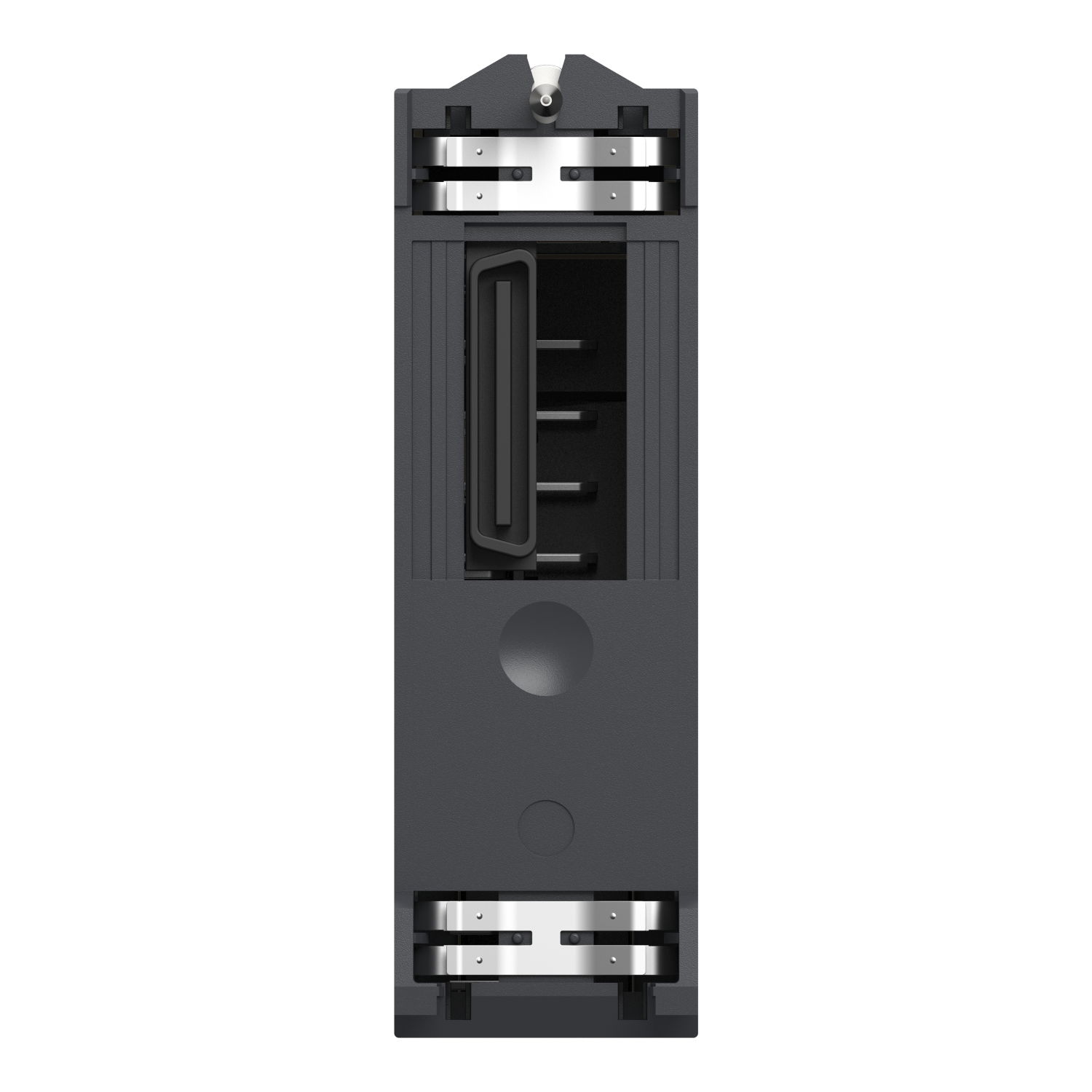

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 2 of 7

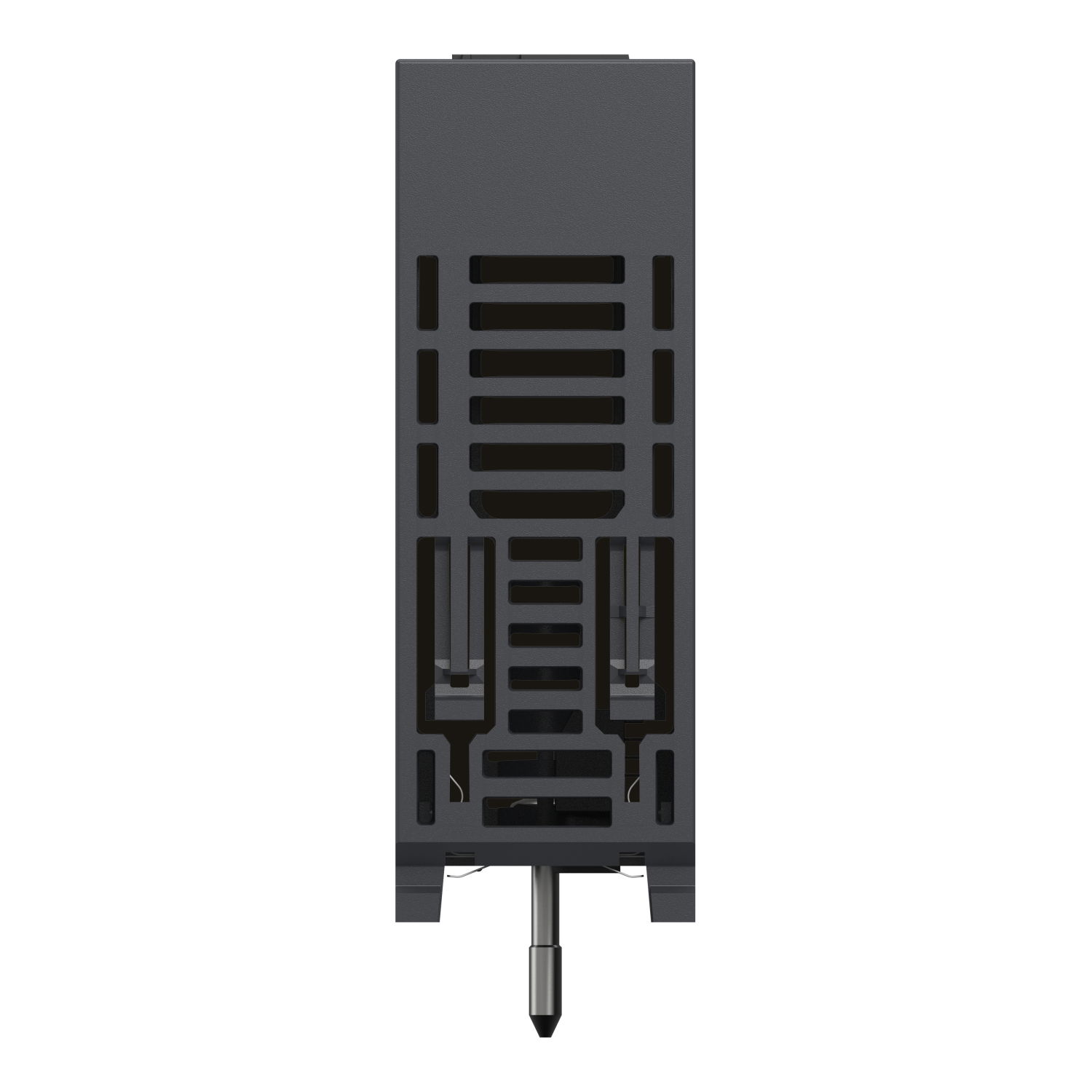

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 3 of 7

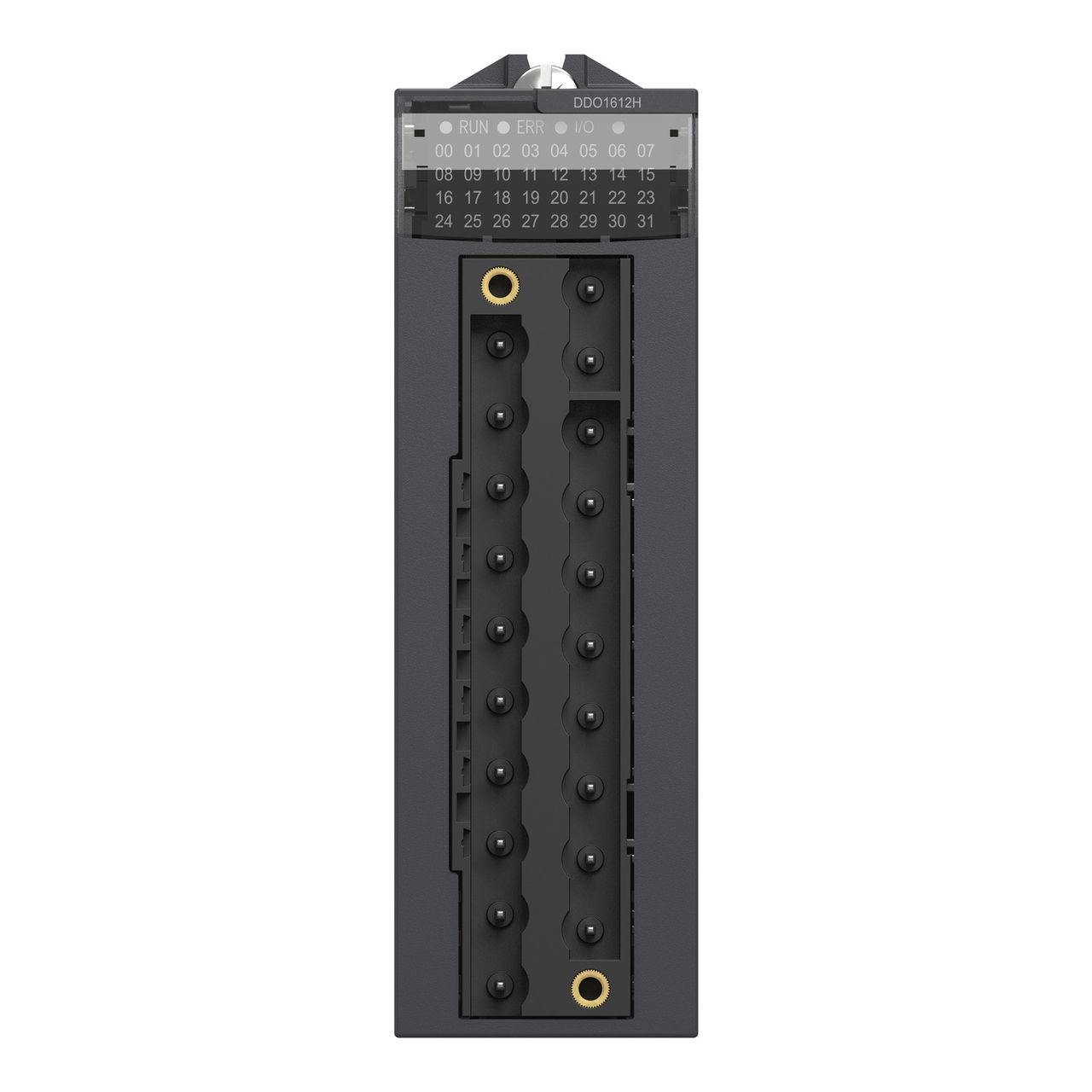

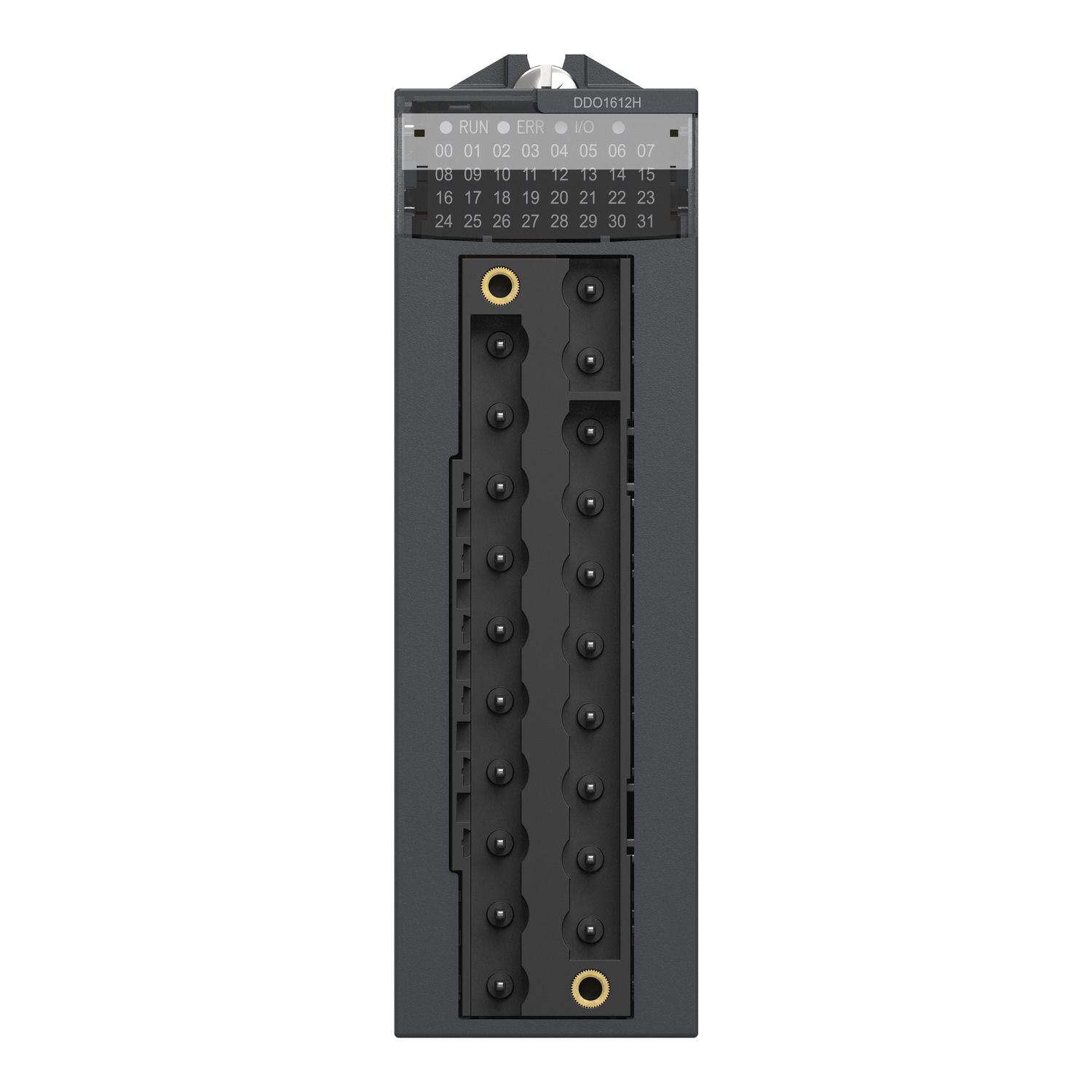

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 4 of 7

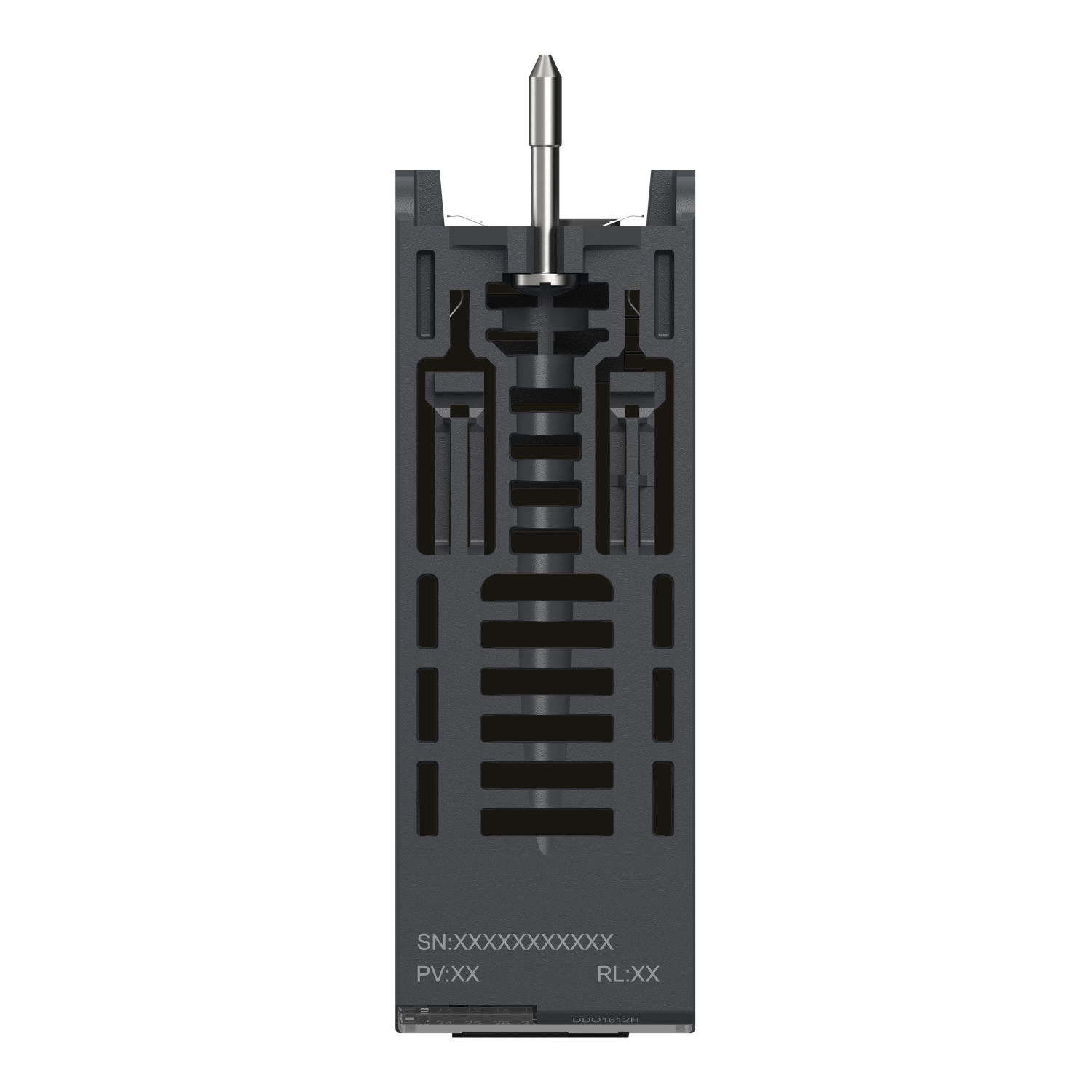

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 5 of 7

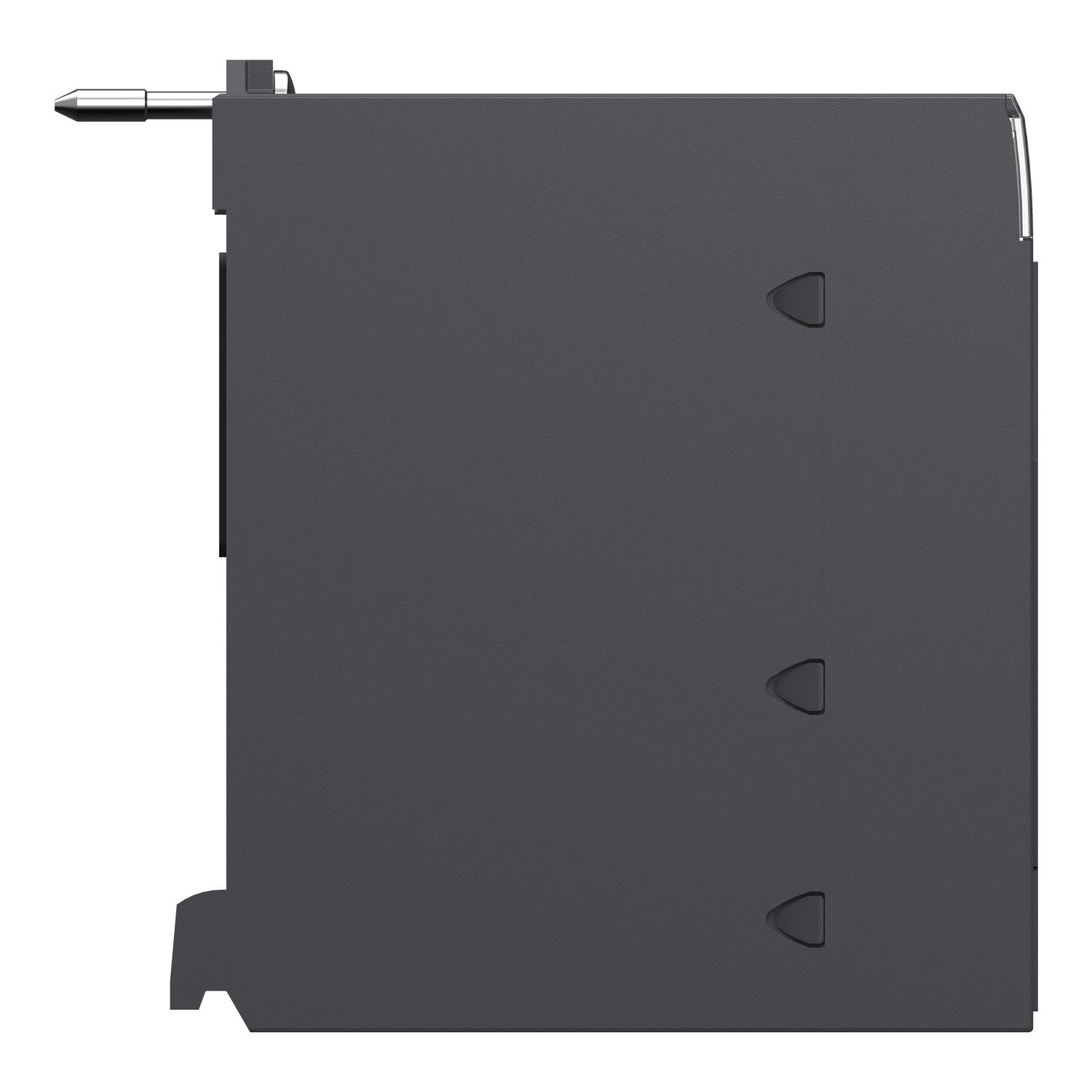

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 6 of 7

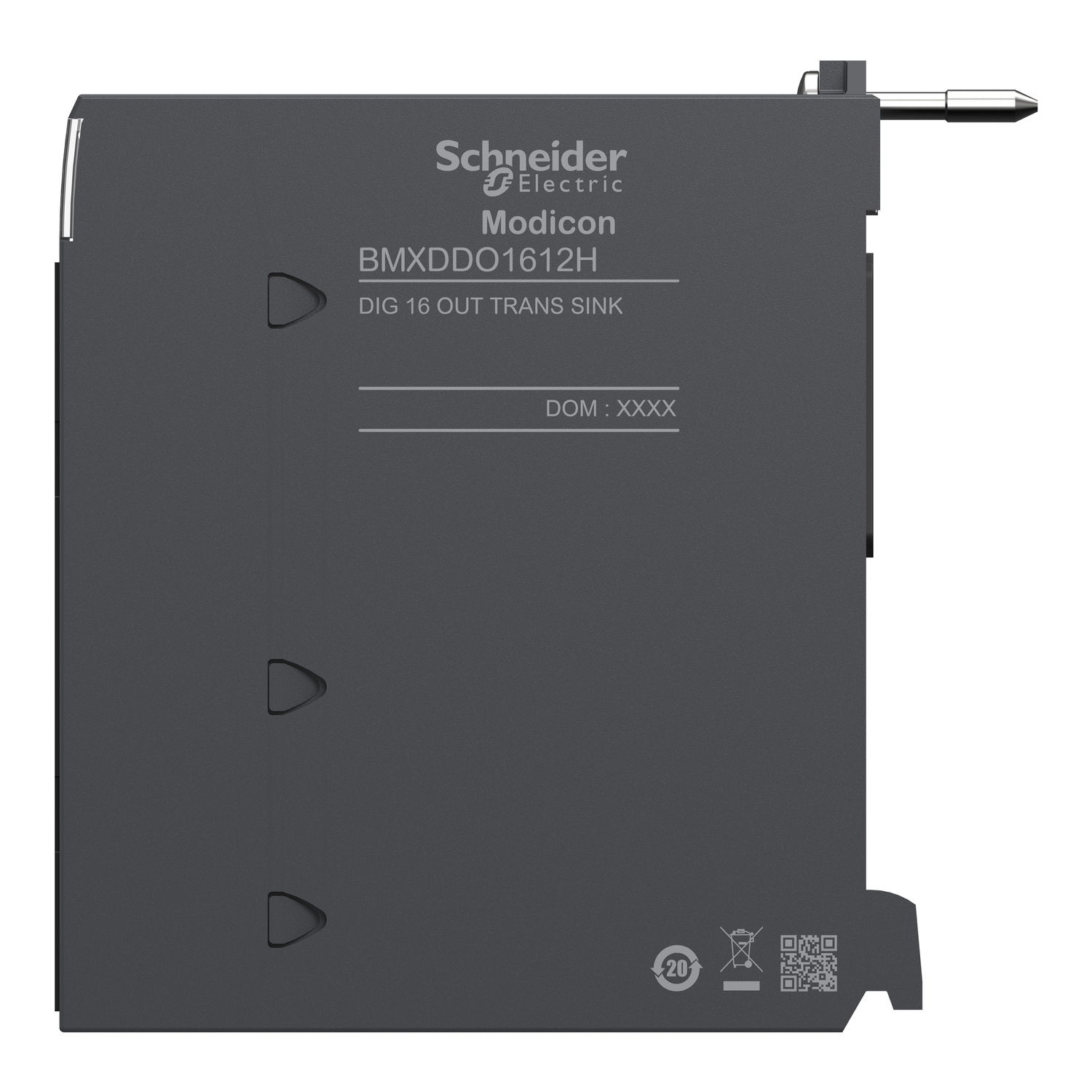

Discrete output module X80 - 16 O - 24 V DC - for severe environments – Image 7 of 7

1 / 7

Discrete output module X80 - 16 O - 24 V DC - for severe environments

Name: Discrete output module X80 - 16 O - 24 V DC - for severe environments
Brand: Schneider Electric
SKU: BMXDDO1612H
Availability: InStock

Discrete output module X80 - 16 O - 24 V DC - for severe environments by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £314.96 excl. VAT. Voltimum+ members earn 35 points per unit.

"This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 16 output channels and it is supplied with 24V DC (negative)." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 489617 hours of MTBF." "This discrete module has a weight of 0.120kg and dimensions of 32x100x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Product identifiers

SKU: BMXDDO1612H

EAN: 3595864027401

GTIN: 3595864027401

MPN: BMXDDO1612H

Loyalty points: 35

Price: £ 314.96 Excl. VAT

Specifications

Depth	150 mm
Width	33 mm
Height	100 mm
Redundancy	no
Output current	0.5 A
Power consumption	2.26 W
Supply voltage DC
Type of digital output	Transistor
Type of output voltage	DC
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Number of digital inputs	0
Input current at signal 1	0.65 mA
Number of digital outputs	16
Permitted voltage at input
SIL according to IEC 61508	None
Digital inputs configurable	no
Permitted voltage at output
Time delay at signal change
Type of electric connection	Plug-in connection
Digital outputs configurable	yes
Suitable for safety functions	no
Voltage type (supply voltage)	DC
Type of voltage (input voltage)	DC
Appendant operation agent (Ex ia)	no
Appendant operation agent (Ex ib)	no
Explosion safety category for gas	None
Explosion safety category for dust	None
Short-circuit protection, outputs available	yes
Performance level according to EN ISO 13849-1	None
